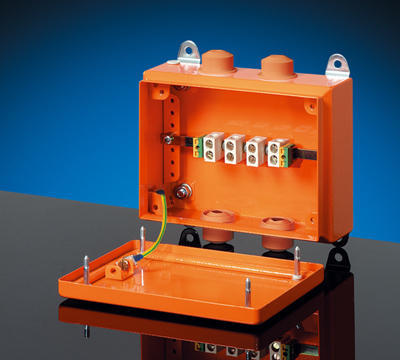

Polycarbonate Hensel Junction Boxes

MOQ500 Piece(s)
MaterialPolycarbonate
Weight0,141 kg
Rated current20 A
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Model KF 0202 G : 0.75-2.5 mm², Cu 3~ terminal with 2 clamping units per pole 5-pole per pole 8 x 0,75 mm² f, 6 x 1,5 mm² sol / f, 4 x 2,5 mm² sol / f, 2 x 4 mm² sol /....

View More Details

Send Enquiry

Product Details

Model KF 0202 G :

0.75-2.5 mm², Cu 3~
terminal with 2 clamping units per pole
5-pole per pole 8 x 0,75 mm² f, 6 x 1,5 mm² sol / f, 4 x 2,5 mm² sol / f, 2 x 4 mm² sol / f
cable entries via knockouts, order AKM separately (see cable entry systems LES)
"weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
saltwater-proof
"offshore applications"
lid fasteners sealable without accessories
retaining strap and external brackets for wall fixing included
Colour: grey, RAL 7035

Technical Data

Rated Insulation Voltage	Ui = 690 V A.C./d.c.
Rated Current:	20 A
Tightening Torque For Terminal	0.5 Nm
Material	Pc-Gfs (polycarbonate)
Degree Of Protection:	Ip 66 / Ip 67 / Ip 69 Ip 67, Temporary Submersion Up To 1 Meter, Max. 15 Minutes Ip 69, Water Pressure Max. 100 Bar, Water Temperature Max. 80 °C, Distance ≥ 0.15 M
Width	93 Mm
Height	93 Mm
Depth	62 Mm
Weight	0,141 Kg
In Accordance With	Iec 60670-22
In Accordance With	Dnv Gl - Certificate No: Tae00000ee Russian Maritime Register Of Shipping, Technical Documentation Is Approved By The Letter No. 250-A-1180-108795
