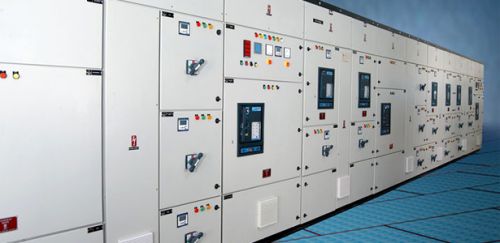

    Power Control Center Panel

    Power Control Center Panel

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    We are manufacturer and supplier of PCC Panel. We offer PCC panels which are used for diverse industrial applications and provide reliable and effective service. With best usage and productivity,....
    View More Details
    Send Enquiry

    Company Information

    Technitron Industries
    location Rabale, Navi Mumbai, Maharashtra
    View Number
    • calendar Member Since 7 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    We are manufacturer and supplier of PCC Panel. We offer PCC panels which are used for diverse industrial applications and provide reliable and effective service. With best usage and productivity, these offer high controllability and also available at market leading prices.
    We offer superior quality PCC Panel to control power production and distribution.



     Features :-
    •  Panels will be suitable for 415 ± 6% volt, 3 phase (4 W + E) 50 HZ AC supply .
    • They will be installed indoors and will work efficiently up to an ambient temperature of 50°C.
    • All doors will be suitably labeled and marked for convenience of operation & maintenance.

     Construction :-

    • Type:
      Single /double sided.Modular design, free standing and will have fixed or draw out type executions as many be desired.
    • Finish:
      The entire panel will undergo pretreatment covering decreasing, water rinsing & de-rusting/ phosphating. It will be synthetic enamel painted or powder coated as per requirements.
    • Bus Bars:
      Uniform cross section copper Bus Bars (current density 1.39 amps/sq mm.) supported by SMC /DMC bases will be employed through out the length of the panel.
    • Internal Wiring:
      Wiring be carried out with 11000/650 volt grade PVC insulated stranded conductor wire. All joints will be solidly crimped using copper thimbles
    • Earthing Bus:
      Bus Bars will be running all along the board.
    • Switch Gears/ Components
      Along with the formal offer, the GA drawing and the bill of material will be submitted specifying the makes & capacities of all the material to be used in the panel.
    • Standards:
      Our Panels confirms to the standards such as, IS 4237; IS 8623; IS 375
