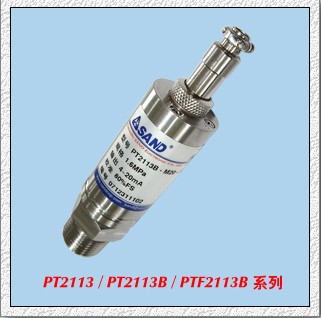

Pressure Transmitter, Power Supply : 12 - 24V

1. Pressure range: 0~500psi~30000psi, 0~50bar~2000bar, (optional);
2.Accuracy: ±0.25%FS,±0.5%FS,±1.0%FS;
3.Repeatability: ±0.2%FS,±0.4%FS,±0.8%FS;
4. Probe temperature:80~150℃;
5. Temperature drift: 25PPM/℃, 50PPM/℃, 100PPM/℃;
6. Output signal:
Transducer: 2.0mV/V, 3.0mV/V, 3.33mV/V;
Transmitter: 0~5V, 1~5V, 0~10V, 4~20mA;
7. Thread size: M14*1.5, M20*1.5,M22*1.5,G3/4 etc, other size can make to order;
8. Electrical connection: 3PIN (H12), 4PIN, 5PIN (XS12), 6PIN (SD02106);
9. Power: Transducer: 10V DC (6~12V DC);
Transmitter: 24V DC (9~36V DC).
