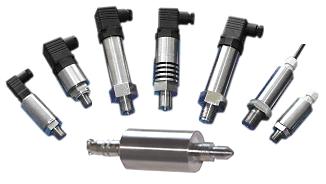

Pressure Transmitter, Brand Name : HB

We are offering pressure transmitter.
The hb2126 transmitter is the first choice for applications requiring high accuracy in different environment. Our mems based technology provides stability over a wide temperature range with excellent repeatability and minimal hysteresis. The diaphragm and body are 316 stainless steel as standard. Available with hirschman connector or cable directly. Choice of pressure port, either m20× 1.5 or g1/4 male.

features:
construction is 316 stainless steel
current and voltage output versions±
0.2% long term stability per annum
ranges from 0.35 bar to 1000 bar, gauge or absolute
advanced digital compensation of both temperature and non-linearity
cost effective

specification:
01.nominal range: 0.35bar, 1bar, 2.5bar, 6bar, 10bar, 16bar, 25bar, 60bar, 100bar, 250bar, 400bar, 600bar, 1000bar
02.overload capacity: 1.5 times of scale
03.accuracy: ± 0.1%f. S, ± 0.25%f. S, ± 0.5%f. S
04.zero temperature coefficient: ± 0.015%f. S/º c(typical)
05.sensitivity temperature coefficient: ± 0.015%f. S/º c(typical)
06.power supply: 24vdc
07.output: 4 - 20ma
08.operating temperature: -40º c - +120º c
09.compensated temperature: 0 - +70º c(typical), -40º c - +100º c(optional)
10.long term stability: ± 0.2%f. S/ year
11.pressure connection: m20× 1.5,g1/4 male,customized(customer should provide connector drawing)
13.electrical connection: hirschman connector, hummel water-proof connector, cable connection.
