Programmable Central Controller, Packaging Type : black for commercial

New av3m+ fully upgrade, canâ beâ controlledâ through apple ipad, android, rf touch screen.

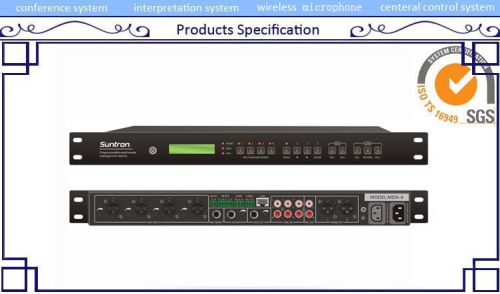

Av3m+ is a programmable central control system main unit which integrated with computer vga matrix switcher, compound video matrix switcher and audio matrix switcher, specific to the middle and small type of av system it integrated many kinds of serial communication. Portâ (rs-232rs-485rs-422), digital io, relay output, ir and network and so on. The front panel of the main unit has internal matrix switcher key, even has flexible programmable keys, also has the led working indicator light of each port to show the current situation of machine clearly. When the ports are not enough, it is convenient to add, in addition, there is also one simple image programmable software, contain all kinds of logical function, the users can compose and choose image automatically. Then provide them a complete, reliable, convenient and practical solution.
Products traits
1) support apple ipad, android, rf touch screen to control
2) 32 bits high performance arm processor
3) 2m bytes flash and 8m bytes ram (it is able to update to 32m)
4) front panel with led indicator light to show port work state. Include power supply, sr-net communication, tcpip communication, ir code reading and each port working state of main unit
5) user serial port setup (rs-232rs-485rs-422), the range of communication parameter is wide
6) strong diagrammatic programmable environment
7) it is able to use many kinds of logical composing command
8) has system reset key
9) built-in vga matrix switcher, compound video matrix switcher and audio matrix switcher
10) front panel with matrix switcher, programmable key and led indicator light key
6.2 function configuration
1) 1 24vdc output sr-net connector, it is able to communicate with the same brand peripheral equipment (such as volume controller, power controller).
