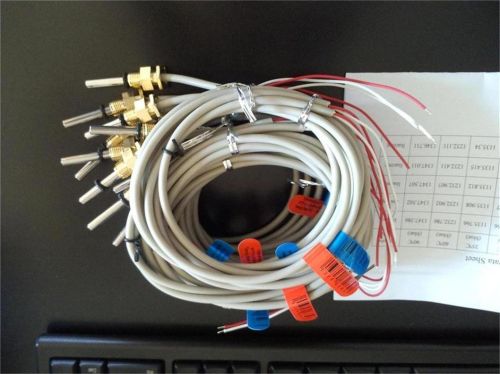

PuZhong Trade PT1000 Temperature Sensor

We are offering pt1000 temperature sensor.
1: this product is our strategic partner heraeus group (heraeus) owned by the world's top ceramic thin film platinum rtd chip - platinum resistance ; available temperature range (-50 - 650 degrees ) and precision machined parts assembled .
2: vibration-resistant , high temperature, good stability, high precision , all stainless steel housing production, technical performance consistent with the imported products .
3:exterior design comply with the ministry of construction of platinum resistance thermometer calorimeter ancillary provisions .
4: measuring range 0 ℃ -105 ℃, all products tested pairing packaging factory , meets class a and class b accuracy.
5: self-developed sensor system , the implementation of the single detection detection and matching bar code management system that links directly to implement the package , using rigorous testing means the device manager to ensure that the technical indicators sensor authenticity .
6 :with copper wire , to enhance the antioxidant capacity of the wire.
Pvc cable temperature range : 0 - 90 ℃
platinum resistance accuracy:
b tolerance in k + - (0,30 k +0,0050 x t)
a tolerance in k + - (0,15 k +0,0020 x t) optional
- protection tube diameter : 5.0 mm
- protection tube length : 45mm
- cable length : 0.4m to 20m
- the minimum installation depth : 18mm
