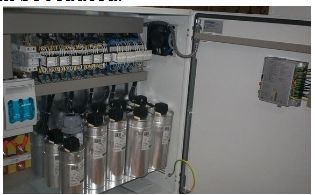

Pump Control & Power Factor Correction System

We are a quality driven and make sure that the offered lot is prepared using the premium grade raw material. Also, we make sure that it is sourced from the certified vendors. Supported by superior transportation system, we can easily make safe and quick deliveries within the promised time span.

Features :

• Automatic star delta control with contactors (for above 7.5kW pumps).
• Maintain the power factor between 0.90 to 0.98
• Auto Introduce the capacitor bank.
• Inbuilt Timer with three time setting/ Slots (Pump needs to operate at different times daily).

Display unit should display following :

• Current Power Factor.
• Online Current each phase.
• Online Voltage each phases.
• ON & OFF time of all three available slots
• Power consumed by pump (in kWh) – Daily and in data logging.
• Overhead water level sensing.

Electrical Safeties:

• Protection from high voltage i.e. > 270V, restarts when the voltage drops to 250V.
• Protection from low voltage i.e. < 190V, restarts when the voltage increases to 200V.
• Single phase prevention.
• Phase sequence Alert. i.e. RYB
• Over load condition.
• Dry run, the condition when pump is running without lifting water. RPM will go high
• and current will be reduced.
• Current Leakage in pump the condition when the
• current flows from neutral to earth.
• Maintaining the power factor between 0.90 to 0.98
