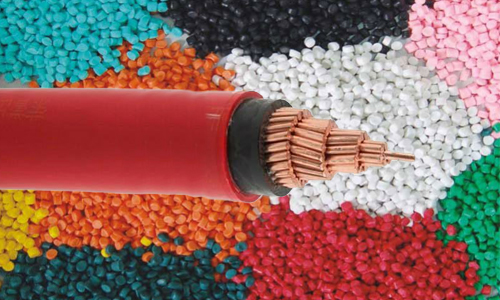

PVC Cable

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Our range of PVC compounds are used in cable industry for manufacture of protective wires and cable sheaths. We offer various degrees of modifications as required by our customers and the finished products are durable and conforms to the regulatory requirements.

View More Details

Send Enquiry

Company Information

Bansal Poly Plast (p) Ltd.

Narela, Delhi

View Number

Member Since 16 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Grades	Variants
Grade Name	Bp-12	Bp-16	Bp-75	Bp-06	Bp-03 FR	Bp-02	Bp-05	Bp-04 FR	Bp-33
Grade Name As Per IS 5831	ST-1	ST-1	ST-1	ST-1	ST-1 FR	ST-2	ST-2	ST-2 FR	FRLS
Maximum Operating Temp. °C	70	70	70	70	70	90	90	90	90
Properties of PVC Compounds
Gravity	1.35(+/-0.02)	1.52(+/-0.02)	1.43(+/-0.02)	1.56(+/-0.02)	1.50(+/-0.02)	1.48(+/-0.02)	1.52(+/-0.02)	1.54(+/-0.02)	1.54(+/-0.02)
Hardness Shore A	75(+/-3)	90(+/-3)	85(+/-3)	90(+/-3)	90(+/-3)	90(+/-3)	92(+/-3)	92(+/-3)	92(+/-3)
Thermal Stability @ 200°C	60	60	60	60	110	110	110	125	130
Tensile Strength N/mm2	15	15	15	15	16	16	15	15	14
Elogation At Break %	250	280	230	200	220	220	200	220	200
Ageing Temperature °C	80	80	80	80	100	100	100	100	100
Duration of Ageing hours	168	168	168	168	168	168	168	168	168
Variation of Tensile Strength % (+/-)	20	20	20	20	20	20	20	20	20
Variation of Elogation % (+/-)	20	20	20	20	20	20	20	20	20
Loss of Mass mg/cm2 max.	2	2	2	2	2	2	2	2	2
Additional Properties
Oxygen Index (LOI)	-	-	-	-	30	-	-	31	32
Temperature Index °C Min.	-	-	-	-	280	-	-	290	300
Smoke	-	-	-	-	-	-	-	-	58
HCL	-	-	-	-	-	-	-	-	18
