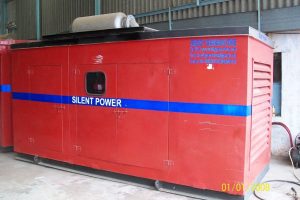

SOUNDPROOF ENCLOSURE TECHNICAL SPECIFICATION OF ACOUSTIC ENCLOSURE CONSTRUCTION:

The Acoustic Enclosure is modular, cap on type (without base) & Noise shielding construction, the panel construction can be dismantled, relocated to another area and re-erected.

The modular panel construction consists of 1.6/2 mm CRCA sheet laminated outside & GI perforated sheet of 24swg thick inside. The acoustic material filled between both the sheets of 75 mm thickness, offers the advantages of high shielding performance & durability. Structural steel support is designed and installed according to the enclosure size.

Base frame is made out of 3.15mm CRCA Sheet Fabricated

Forced air ventilation system is engineered to provide sufficient airflow for heat removal as required as per DG Rating.

Epoxy paint / P.U. paint/ Powder coated as per requirement after 9 tank treatment.

Heavy duty SS hinge

Heavy duty, spring loaded lock in brass body

Rock Wool / PUF - Sound proofing of the enclosure is done with quality Rock Wool confirming to IS-8183 of 96 kg/m3 density. 75 mm thick, Rock Wool is covered with Fiber tissue paper fire resistive. Also 04 mm thick HDPE layer provided between Rockwool & CRCA for anti - donning treatment

The Acoustic Enclosure will fulfill CPCB norms for noise pollution that is 25 dB noise reduction or 75 dB at one meter distance from enclosure surface.

We are the leading manufacturer, supplier & promoter of Canopy to our distinguished clients. These are easy to install, quickly access and outer walls consist of 1.6-2mm thickness of steel sheet. They are offered in the standard range of 5 KVA up to 2000 KVA. We also provide customized Canopy as per the client’s requirement. Canopy has other names like Canopy for dg set, generator noise enclosure and generator noise reduction.

ELECTRICAL PANEL:

LT PANEL:

HT PANEL :

CONTROL PANEL :

DISTRIBUTION PANEL:

MCC PANEL:

SYNCHRONIZING PANEL:

AMF PANEL:
