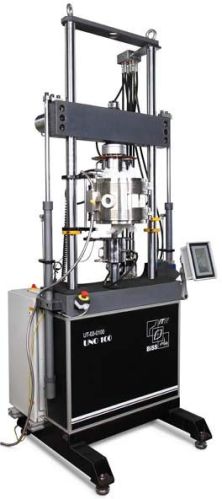

Contact SupplierOur company has set benchmark in offering UNO And Median Servo Hydraulic Universal Testing Machine to the clients. UNO And Median Servo Hydraulic Testing Machine is available to esteemed clients in various dimensions to meet specific needs of clients. Offered range is made by team of professionals at vendor’s end using top quality material, following norms and guidelines laid down by industry. UNO And Median Servo Hydraulic Testing Machine is checked on various quality stages before dispatch in market.
Features:
Dimensional stability
Sturdy design
Rust proof body
Technical Parameters:
Load Capacities from 50kN to 600kN static & dynamic
Frame stiffness 1100kNmm(optionally up to 6000KNmm)
Actuator on fixed bottom cross head
Up to 300 mm stroke servo-actuators with 1micron resolution
Hydraulic lifts & clamps
Works out of 1Ø 230VAC or 3Ø 415 VAC
32 bit next generation DSP based servo controller
Accuracy ± 0.5% of read out value for load, strain & stroke
0-10 Hz (UNO), 0-100 Hz (Median) cyclic frequency operation. Frequency response of Median system depends on combination of power pack, servo valve flow rates and the amplitude requirements
Applications:
TensionCompression3 point bend
Ductile and Brittle Fracture toughness (K1c, J1c, CTOD, J-R)
Fatigue crack propagation (dadN)
Threshold stress intensity
Low-CycleHigh-Cycle Fatigue (LCFHCF)
Elastomeric properties
Low High temperature tests (-150°C to 1200°C)
