Contact SupplierOur Servo stabilizers can be classified into Air Cooled Stabilizers and Oil Cooled Stabilizers. While an air cooled stabilizer is generally used for areas with power capacities less than 45 KVA, oil cooled stabilizer can be used for applications where more than 45 KVA power is used. In industries where dust and flammable particles like cotton dust, foundry dust, etc., are very high, oil cooled stabilizers should be used even for lower capacities to prevent fire accidents and to attain trouble free performance.
Air cooled stabilizers are available in single phase and three phase models.
Applications of Servo Stabilizers:
The unending list includes: CNC machines, engineering industries, modern textile machineries, auto looms & mills, garment industries (embroidery, knitting, compacting, dyeing, printing machineries, sewing machines, etc.,), medical equipments, hotels & restaurants, multiplexes, malls & apartments, educational institutions, lighting loads, lifts & elevators, air conditioning equipments, factories, modern rice mills, hospitals, IT companies & BPO’s, gymnasiums, photocopying centres (Xerox centres), DTP centres, Corporate buildings & offices, retail showrooms, boutiques, restaurants, theatre projectors, etc.,

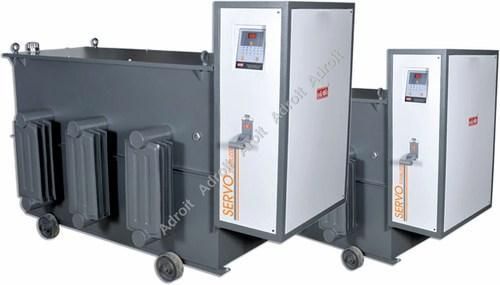

Oil Cooled Voltage Stabilizer
Parameter | Three Phase |
| Capacity | 3 KVA to 1000 KVA |
| Operating Frequency | 47 - 53Hz |
| Input Voltage Range | Range I :340 - 465V |
| Range II :295 - 465V | |
| Range III :240 -465V | |
| Output Voltage | 400 V 1% (Adjustable) |
| Output Volts Regulation | 1% |
| Type of Cooling | Oil Cooled |
| Working Temperature | 0 to 50° C |
| Insulation | Class “B” |
| Output Wave | Form True Reproduction of Input |
| Wave Form Distortion | Nil |
| Efficiency | 98% at Nominal Load |
| Correction Rate | 25/35/60 V per second |
| Relative Humidity | 60% |
| Effect of Load Power Factor | Nil |
| Environment | Indoor &out door |
Single Phase Voltage Stabilizer
| Parameter | Single Phase |
| Capacity | 1 KVA to 25 KVA |
| Operating Frequency | 47 - 53Hz> |
| Input Voltage Range | Range I :200 - 270V |
| Range II :170 - 270V | |
| Range III :140 - 270V | |
| Output Voltage | 230 V + 1% (Adjustable) |
| Output Volts Regulation |
