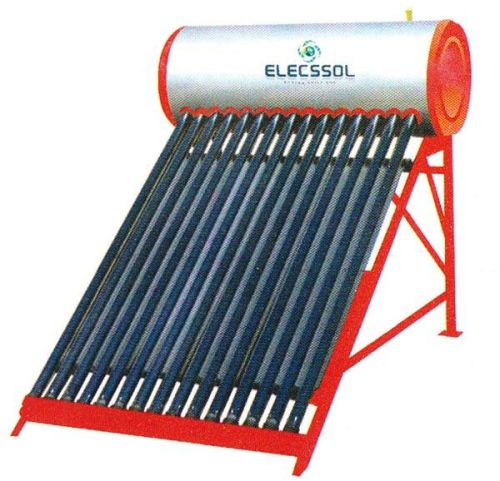

Solar Water Heater, Grade : Automatic

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

A Solar Water Heater consists of mainly Collector to collect solar energy and an Insulated Storage Tank. This Solar Water Heater works on the process where the sun heats the water and then the heated....

View More Details

Send Enquiry

Product Details

A Solar Water Heater consists of mainly Collector to collect solar energy and an Insulated Storage Tank. This Solar Water Heater works on the process where the sun heats the water and then the heated water is stored in storage tank. ELECSSOL Solar Water Heaters are equipped with the latest technology, giving free hot water every time it is needed. Own the energy instead of renting it from the power company. We are among the reliable Suppliers of the Solar Water Heater from Hisar. Features

"A" grade, high borosilicate 3.3 glass with tri-targets magnetron sputtering
Modern supporting structures for easy installation on different kind of roofs
Highly density PUF Insulation for more heat retention
Control panel with water level and temperature detector-Unique feature
Electric heater
Eco-friendly

Specifications

Capacity (Ltrs.)	130, 170, 200, 250, 300
Autonomy	72 Hrs
Operating Pressure	Atmospheric
Corrosion Protection	Galvanized colour steel sheet
Tanks Material	Stainless Sheet
Special Coating	55 mm thick polyurethane foam layer to keep water in the storage tank warm for 72hrs
Collector Material	A grade, high borosilicate 3.3 glass with 3 Target Coating with CU/SS-ALN/AIN coating
Collector Size	Outer Diameter 58 MM, Inner Diameter 47 MM & Length 1900 MM
Vacuum Level	5 X 10-³ Pa
Thermal expansion of coefficient	3.3 X 10-⁶
Outer tube transmittance	>91%
Heat loss efficient	<0.6w/m² degree Celsius
System support structure	Galvanized Anodized aluminium
Control Panel	Water and Temperature Detector
Note : Solar water heaters are also available in various capacities on demand.
