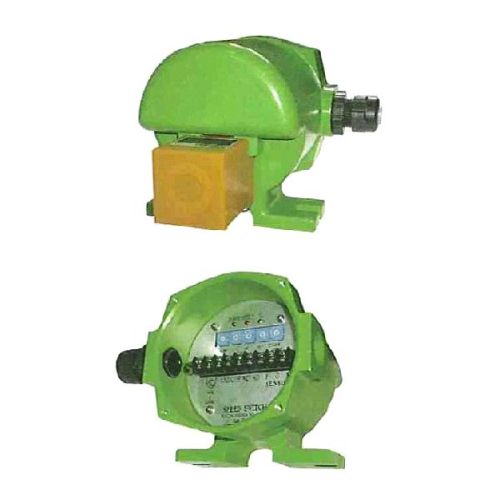

Speed Switch

Get Latest Price

Contact capacity 250V AC2A
Detecting distance 18mm or below
Color Munsell N1.5
Detection 2~999P/min Actual detection starts after detecting 2 pulses Detection time = (60sec/rpm) x 2 pulses/number of detection blade
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Toshniwal Industries Pvt. Ltd.

Makhupura, Ajmer, Rajasthan

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1959

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Detection 2~999P/min Actual detection starts after detecting 2 pulses Detection time = (60sec/rpm) x 2 pulses/number of detection blade
Detecting distance 18mm or below
Timer 0~30sec
Protection (Proximity switch) IP67 (Transducer) IP40
Output contact 1C contact
Detecting accuracy ±1%
Color Munsell N1.5
Power source AC80~135V, 160~230V 50/60Hz
Contact capacity 250V AC2A
Rating 2000P/min
Allowable temperature (Proximity switch) -25~+70°C (Transducer) -10~+55°C
Sensing piece Magnetic substance t1x40x40mm
Model ESPB-030

Description

This is space-serving type motion sensor which consistsof a transducer to be mounted in the panel and a separated proximity switch to be mounted at the place where detection is conducted. It is possible to conduct speed control in the control room apart from the place where detection is conducted and to conduct collectively a integrated control by mounting side by side transducers from each place where detection is conducted.

FEATURES

With the built-in digital switch, the actuating speed is adjustable at site
Not affected by vibrations of machines, since the distance between the sensor and the sensing piece is allowed up to 18mm
Simple control circuit, as the starting compensation timer is built in
Free power source does not cause a mistake in connection to 100V or 200V
Compact, light weight and high performance series
IP67 protection allows the use in bad environment
Aluminium housing and strong against corrosion
