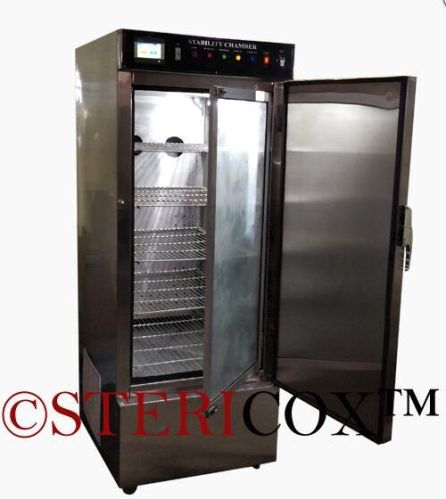

Stability Chamber, Voltage : 220V

Power1-3kw
Country of Origin220V
Temperature controllerMicroprocessor PID controller, Display of SV & PV, Low / High buzzer .
RefrigerationCFC Free compressor with condenser, motor and relay complete unit
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Power1-3kw
Country of Origin220V
Inner doorGlass door fitted in steel frame
RefrigerationCFC Free compressor with condenser, motor and relay complete unit
ConstructionDouble walled
Humidity Range40% to 95% RH
InsulationPUF insulation
Shelves / trays2 to 5 steel wire mesh trays (height adjustable)
OptionalStainless steel exterior (GMP), PLC based HMI controller w/ USB interface, RS 485 interface, 21 CFR part 11 software .
Humidity systemSS tank with heater, Low water buzzer, Auto filling water system .
Humidity controllerMicroprocessor PID controller, Display of SV & PV, Low / High buzzer .
ExteriorPowder coated GI sheet
Temperature controllerMicroprocessor PID controller, Display of SV & PV, Low / High buzzer .
Temperature accuracy±1°C
DoorSolid insulated door with lock and key
Air CirculationAxial fan / blower
InteriorStainless steel 304
Temperature Range10°C to 60°C
Chamber IlluminationFluorescent white light
Humidity accuracy±3% RH

STANDARD SIZES / DIMENSIONS

Model	Volume (Liters)	Inner Chamber size (mm)	Trays
STXSC200	200 Liters	600 x 600 x 600	2
STXSC324	324 Liters	600 x 600 x 900	2
STXSC450	450 Liters	600 x 600 x 1250	3
STXSC600	600 Liters	600 x 800 x 1250	3
STXSC800	800 Liters	800 x 800 x 1250	4
STXSC1000	1000 Liters	800 x 800 x 1570	4

STANDARD SIZES / DIMENSIONS

Model	Volume (Liters)	Inner Chamber size (mm)	Trays
STXSC200	200 Liters	600 x 600 x 600	2
STXSC324	324 Liters	600 x 600 x 900	2
STXSC450	450 Liters	600 x 600 x 1250	3
STXSC600	600 Liters	600 x 800 x 1250	3
STXSC800	800 Liters	800 x 800 x 1250	4
STXSC1000	1000 Liters	800 x 800 x 1570	4

TECHNICAL SPECIFICATIONS

Temperature Range	10°C to 60°C
Temperature accuracy	±1°C
Temperature controller	Microprocessor PID controller Display of SV & PV Low / High buzzer

Humidity Range	40% to 95% RH
Humidity accuracy	±3% RH
Humidity controller	Microprocessor PID controller Display of SV & PV Low / High buzzer

Chamber Illumination	Fluorescent white light

Construction	Double walled
Insulation	PUF insulation
Exterior	Powder coated GI sheet
Interior	Stainless steel 304
Door	Solid insulated door with lock and key
Inner door	Glass door fitted in steel frame
Shelves / trays	2 to 5 steel wire mesh trays (height adjustable)
Air Circulation	Axial fan / blower
Refrigeration	CFC Free compressor with condenser, motor and relay Complete Unit - Copeland Make
Humidity system	SS tank with heater Low water buzzer Auto filling water system

Optional	Exterior stainless steel 304 / 316 PLC & HMI interface RS 485 interface UV light LUX & UV meters Storage racks Validation ports Caster wheels with brake

STANDARD SIZES / DIMENSIONS

Model	Volume (Liters)	Inner Chamber size (mm)	Trays
STXSC200	200 Liters	600 x 600 x 600	2
STXSC324	324 Liters	600 x 600 x 900	2
STXSC450	450 Liters	600 x 600 x 1250	3
STXSC600	600 Liters	600 x 800 x 1250	3
STXSC800	800 Liters	800 x 800 x 1250	4
STXSC1000	1000 Liters	800 x 800 x 1570	4
