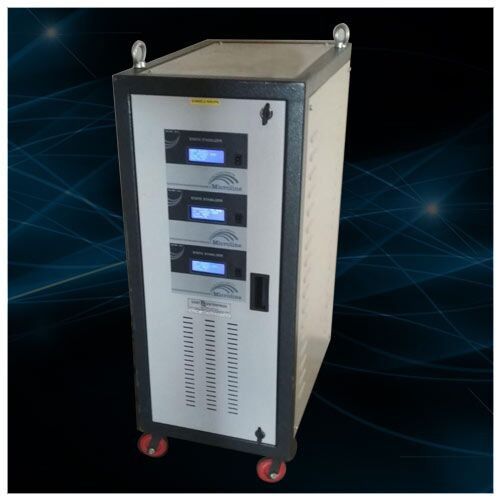

Static Stabilizer

Static Voltage Stabilizer is an IGBT based PWM type buck-boost voltage stabilizer which has tight regulation and fast correction speed which is impossible to obtain using conventional methods such as servo voltage stabilizers, SCR / triac type stabilizer, relay type stabilizer etc.
This is an SMPS type voltage stabilizer for mains voltage (AC input and AC output). This is a new switching topology where PWM is made directly in AC-to-AC switching, without any harmonic distortion. In this topology there is no need to convert the AC input to DC and again convert it back to regulated AC output. This simplifies the design, reduces the component count and improves the efficiency and reliability. The power stage is an IGBT chopper control. The chopping frequency is around 20KHz which ensures absolutely silent operation and pure sine wave output (no waveform distortion).
The control section is based on dsPIC controller which ensures quick correction of output which is not possible in conventional relay type stabilizer or servo controlled stabilizers. The circuit is having LCD for display which will show all parameters like: input voltage, output voltage, connected load, etc.
