Summation Current Transformer Retailer in Mumbai Maharashtra India

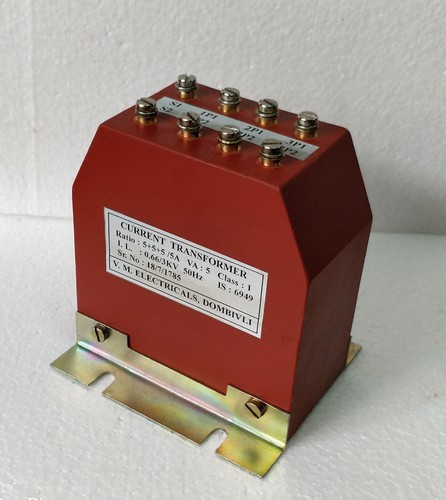

Summation Current Transformer, For Industrial Use, Power Grade

Sold By : V. M. Electricals

Product Specifications

Frequency0-50Hz, 100-200Hz, 50-100Hz
UsageIndustrial Use, Power Grade
ConditionNew
Production Power100-250kw, 500-750kw, 750-1000kw
FeatureElectrical Porcelain, Four Times Stronger, Sturdy Construction
Tensile Strength0-25Mpa, 150-175Mpa, 50-75Mpa
Warrenty5yrs
Supply TypeManufacturer, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We are one of the leading manufacturers and suppliers of Summation Current Transformers in Dombivli region of Maharashtra. Compact designs and distinctive features have elevated our products to a position of high demand in the market. The price is also most economically set as per the market standards. These Resin Cast Summation type CTS are duly examined on numerous quality-control parameters to ensure flawless delivery. We offer different specifications as per client need. Class 0.5 or 0.2 are also offered on special request.

Specifications

Description	ID (min)	OD (max)	HT (max)
200/5A 5VA CLASS 1	30mm x 20mm	80mm x 70mm	40mm
250/5A 5VA CLASS 1	30mm x 20mm	80mm x 70mm	40mm
200/5A 5VA CLASS 1	45mm x 20mm	95mm x 70mm	40mm
250/5A 5VA CLASS 1	45mm x 20mm	95mm x 70mm	40mm
300/5A 5VA CLASS 1	45mm x 20mm	95mm x 70mm	40mm
400/5A 5VA CLASS 1	45mm x 20mm	95mm x 70mm	40mm
500/5A 10VA CLASS 1	60mm x 40mm	120mm x 100mm	40mm
600/5A 10VA CLASS 1	60mm x 40mm	120mm x 100mm	40mm
800 5A 10VA CLASS 1	60mm x 40mm	120mm x 100mm	40mm
1000 5A 10VA CLASS 1	120mm x 40mm	195mm x 100mm	40mm
1200/5A 15VA CLASS 1	120mm x 40mm	195mm x 100mm	40mm
1500/5A 15VA CLASS 1	120mm x 40mm	195mm x 100mm	40mm
1600/5A 15VA CLASS 1	120mm x 40mm	195mm x 100mm	40mm
2000/5A 15VA CLASS 1	120mm x 40mm	195mm x 100mm	40mm
2500/5A 15VA CLASS 1	125mm x 60mm	185mm x 125mm	40mm
3000/5A 15VA CLASS 1	125mm x 60mm	185mm x 125mm	40mm
4000/5A 15VA CLASS 1	160mm x 60mm	260mm x 145mm	50mm
5000/5A 15VA CLASS 1	160mm x 60mm	260mm x 145mm	50mm
