Switch Gears

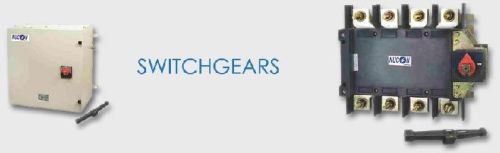

NUCON On load Switch Disconnectors (Load break switches) are manually operated 4 pole switches with compact design for application in low voltage distribution circuits and motor circuits. the switches are compact and suitable for AC 23A duty.
ALL CO-SERIES Switches are capable of making, carrying & breaking currents under normal circuit conditions, which may include operating under overload conditions and also carrying currents under specified abnormal circuit conditions, such as short circuit for a specified time.

Conforms to IEC - 60947 - 1 & 3, IS - 13947 - 1 & 3

Current range 40 A to 3150 A in nine frame sizes in four Pole in Open Execution & thick Sheet Steel Enclosure

• While breaking the circuit, guaranteed sufficient air sectioning clearance.
• Utilization category - AC 23A.
• Strong endurance and resistance to heat (Tropicalised).
• Flag indicator for two stable positions (I-O) & possible switching on or off, on load, there by fulfilling the roll of switching device.
• All current carrying parts are of special grade E.T.P. Copper and with silver plated.
• Knife type contact system with self wipe feature allows cleaning of contact during each operation, calling for lesser maintenance and longer life.
