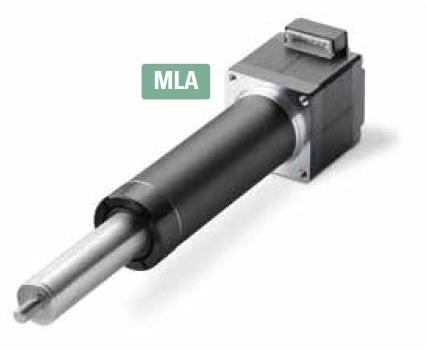

THOMSON Carbon Steel With SS Rod Stepper Driven Actuator

  NEMA11 to NEMA 23 stepper motor driven plus lead screw actuator SS 303 lead screw with dia  x pitch range  6 mm x 1mm to 10 mm x 20 mm Anti-rotation feature  built in Axial load range from 89 N to 890N Linear speed upto 250 mm per sec , depending on the load Use for 50% duty cycle Standard stroke upto 2.5 “ ie 64 mm and force upto 890 N Variable speed possible as stepper motor is there, Thomson does not supply drive MADE IN USA Ideal for table top machines, medical devices, chute control, multi position stops
