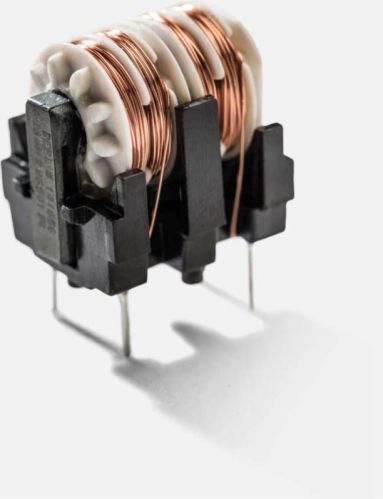

Ut 20 Vertical Common Mode Choke

Get Latest Price

Sold By : Prismatic Engineering Pvt. Ltd.

Send Inquiry

Product Specifications

Driven TypeElectric
ConditionNew
Automation GradeAutomatic
ApplicationElectrical Equipments
Isolation50Hz / 4mA / 1 min
Between Winding1500V AC
Windings to Core1500V AC
Insulation Resistance500V DC Greater than 100MΩ
Country of OriginIndia
Supply TypeManufacturer, Exporter

Preferred Buyer From : All over the world

Product Overview

Notes

RoHS 3 compliance is available on most products, subject to our confirmation.
Specifications subject to change without notice.
Document Number: PEPL-CAT-13
Release: 01/06/2009

TECH SPECS

PART	INDUCTANCE (mH) (MIN)	CURRENT RATING (A) (STEADY STATE)	LEAK INDUCTANCE (µH) (TYPICAL)	DC RESISTANCE (Ω) (MAX)
9404086001	0.75	1.5	20	0.12
9404086101	1.2	1.25	23	0.13
9404086201	1.8	1	32	0.19
9404086301	3.9	0.75	71	0.33
9404086701	5.6	0.5	105	0.5
9404086401	12	0.5	215	0.92
9404125801	14	0.4	275	1
9404086801	15	0.3	300	1.35
9404086901	22	0.25	430	1.95
9404086501	33	0.25	605	2.8
9404086601	47	0.2	930	3.9
