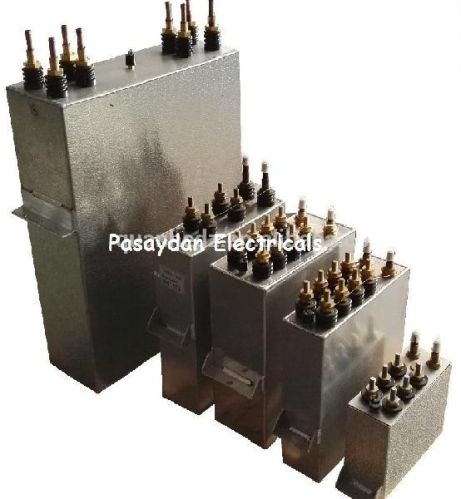

Water Cooled Capacitors

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location India only

Pasayadan Electricals Water Cooled Capacitor's are designed to use in Induction Heating/melting plants for Power factor improvment. In manufacturing special polypropylene film, high grade aluminium foil & non PCB oil is used. High grade copper pipes are used for water cooling. Aluminum / Brass / S. S. Containers are used according to Frequencies. Also Protection Switches (Thermal / Pressure) provided on request. The losses of our water cooled capacitors are extremely low. The performance of these capcitors, demands extreme levels of Reliability, Safety and Life expectancy.

View More Details

Send Enquiry

Product Details

Specifications

Rated KVAR	Up to 8400 KVAR (Special Ratings are also available on request
Rated Voltage	Up to 5000 Volts AC
Rated Frequency	Up to 50,000 Hz
Tapings	Tapped / Untapped
Cooling	Water Cooled / Air Cooled
Casing	Aluminum/Brass / S. S.
Mounting	Vellical/ Horizontal
Protection	Thermal / Pressure Switch
IS Slanders	As per IEC 60110 -1, ISS 9251
