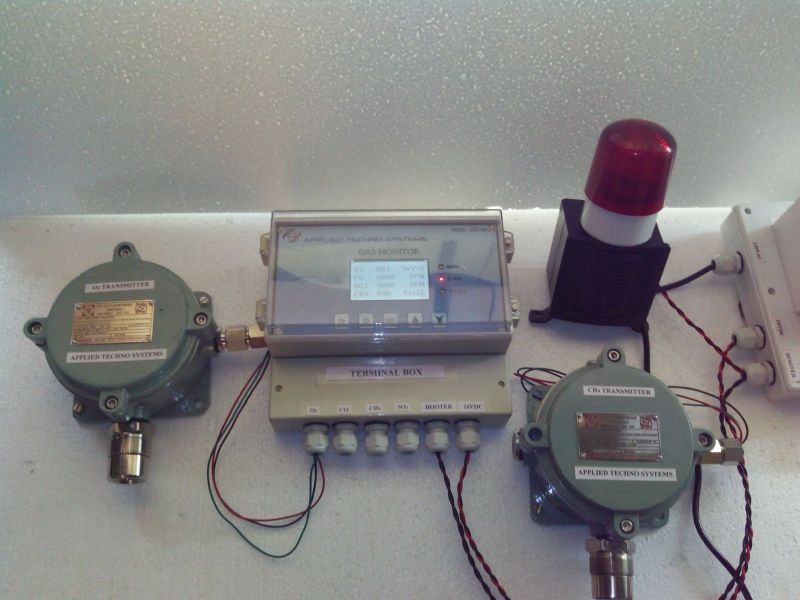

Multi Point Leak Detectoris Multi channel gas Monitor for environmental Monitoring and Leak detection. The ATS-107M is an economical, yet versatile Multi channel controller with the features needed for monitoring a remote 4-20 mA gas sensor/transmitter or similar device. The instrument provides 24 VDC power, audio/visual alarms, alarm relays and other features. The ATS-107M is easy to install, designed for wall mounting and completely programmable from the front panel membrane switches.Accept Multi 4-20 mA Input from Remote Sensor/Transmitter.

Specifications:

• Principle: Electrochemical, Solid State Semiconductor Catalytic and PID
• Range: PPM/PPB or mg/M3
• Resolution: 0.1 Unit or 1 Unit (Application based)
• Sampling Method: Diffusion
• Display: 128 X 64 Graphics LCD
• Alarm; Relay Contact NO+NC
• Analog outPut: 4-20mA
• Digital outPut: RS 232, RS 485 and Modbus Communication Protocol
• Power Source: 230V AC
• Accuracy: +/2%
• Response Time:

Portable Single Gas DetectorsModel ATS-101M is Portable Single Gas Detectors are capable of detecting Oxygen, Toxic, and Combustible gases making them ideal for use in various environments.

Portable Multi Gas DetectorModel ATS-103M is Portable Multi Gas Detector are capable up to Five Gases in One Instruments and detects all Toxic, Explosive and VOC (Volatile organic Compound) Vapour make them ideal use in variety of applications

• Suitable for all Toxic Explosive & Oxygen Gases
• Microcontroller based embedded intelligent instruments
• 128 x 64 Graphics LCD Display
• Diffusion or Auto Suction Sampling Mode
• Long Life Rechargeable Li-Ione Battery
• Data Logger with RS 232 and USB Computer Interface
• On Site Printing

Applications :

• Personal Monitoring
• Confined space entry
• Pulp & Paper
• Chemical Plants
• Refineries/Petrochemical
• Hazardous Area
• Water/West water Treatment
• Fire Services Mines

Gas Detection Systems Model ATS-109TD

The ATS-109TD Sensor/Transmitter operates on 24 VDC power and features LED alarm indicators, 4-20 mA output and optional alarm relay board. This sensor/transmitter can be connected to various applied controllers or computer-based instrumentation, such as PLC or similar instrumentation

Applications :

• Environmental Monitoring
• Area Monitoring
• Pulp & Paper
• Leak Detection & Monitoring
• Chemical Plants
• Refineries/Petrochemical
• Hazardous Area
• Water/West water Treatment
• Fire Services
• Mines

Features :

• Detection of combustible, toxic Gases and Oxygen
• Non-intrusive calibration
• Smart sensors
• Programmable relays
• 2-wire, 3-wire, ModBus
• Flame proof Junction Box
• Available in stainless steel
• Available in wireless version
• Flame proof Junction Box Approval CCOE & CMRI

Choosing between infrared and catalytic bead technology:

Advantages of Catalytic Gas Detectors :

• Can perform more reliably in dusty/dirty atmospheres because they are not as sensitive as optics to the buildup of industrial contaminants
• Can perform more reliably in high temperature applications
• Not significantly affected by changes in pressure
• Catalytic bead sensors with a constant temperature circuit are not affected by changes in humidity. All catalytic sensors are less sensitive to Humidity and condensation
• Can detect most combustible hydrocarbons
• Can detect hydrogen which is invisible to infrared
• Smaller footprint than infrared

Calilbration Gas Selection for Combustible Gas DetectorsIt is not always desirable or necessary to calibrate with the specific gas which is most likely to be present. The standard calibration gases selected by Delphian give excellent results for most applications. Delphian's calibration kit can be used to calibrate for ANY combustible gas. Delphian will recommend which calibration gas to use and provide calibration instructions
