Our Product / Services
Our offered Product range includes LPG Gas Sensor Transmitter, Portable Combustible Gas Leak Detector Model Ats 101M, Portable Chlorine Gas Detector Model Ats 101M, Portable Hexane Gas Leak Detector Model Ats 101M and Portable Hexene Gas Leak Detector Model Ats 101M.
he ats-109td lpg gas sensor transmitter on 24 vdc power and features led alarm indicators, 4-20 ma output and optional alarm relay board. this sensor/transmitter can be connected to various applied controllers or computer-based instrumentation, such as plc or similar instrumentation.
features:
detection of combustible, toxic gases and oxygen
non-intrusive calibration
smart sensors
programmable relays
2-wire, 3-wire, modbus
flame proof junction box
available in stainless steel
available in wireless version
flame proof junction box approval ccoe cmri
specification:
principle electrochemical, solid state semiconductor and catalytic
range %v/v, % lel, ppm, ppb
resolution 0.1 unit or 1 unit (application based)
sampling method diffusion
display alphanumeric led
alarm relay contact no nc
analog output 4-20ma
digital out put rs 232, rs 485 and modbus communication protocol
power source 24v dc or 230vac
accuracy /2%
response time
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS

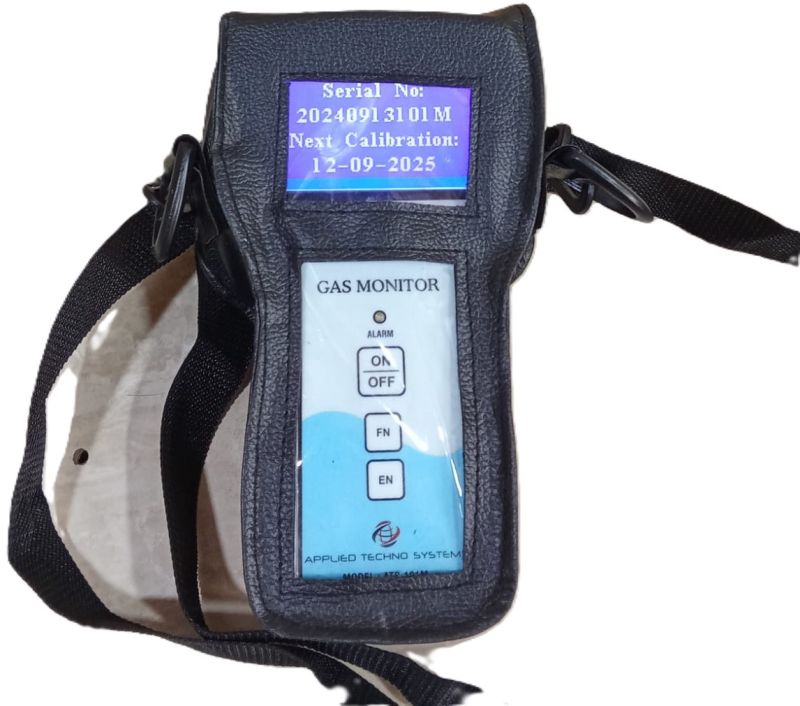

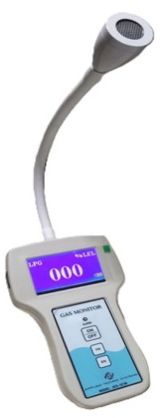

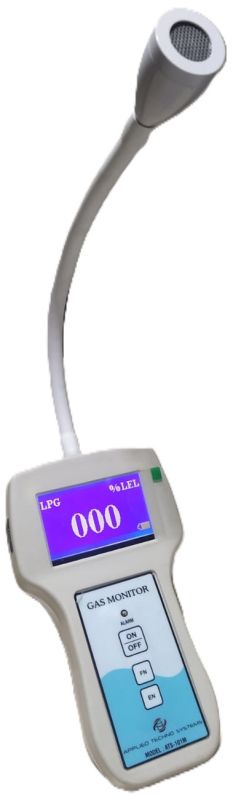

Applied Techno Systems Model ATS 101M is light, Handheld combustible gas leak detector is the perfect tool locating leaks of combustible gases such as Compressed Natural Gas (CNG), Liqufied Petroleum Gas (LPG)Liqufied Natural Gas (LNG), Methane (CH4), Hydrogen (H2), Carbon Dioxide (CO2).
The Micro Controller Based, Digitally Indicating Leak Detector With Long Life Semiconductor Sensor Responds Instantaneously To Minutest Leak Of All Combustible Gases And Pinpoints The Source Of The Leak Or Verify The Work Just Completed Of Being Leak Free with Its Long, Flexible Gooseneck And Sensor Cap The Unit Can Be Used For Checking Leaks From Inaccessible Hard To Reach Locations.
APPLICATIONS -:
-Liquefied Petroleum as (LPG)
-Compressed Natural Gas (CNG)
-Methane (CH4)
-Natural Gas (NG)
-Hydrogen (H2)
-Carbon Dioxide (CO2)
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Applied Techno Systems Portable Chlorine Gas Detectors are capable of detecting the concentration of Chlorine in Air & in various Industrial aspect. It 's light weight & Battery Operated device for single hand operations.
The device in equipped with audio visual vibrating alarm that activate when Cl2 level exeed the limit.
Specifications -:
1- Sensor - Electro Chemical
2- Range - 0-10, 20, 50, 100, 500, 1000 PPM
3- Resolution - 1 PPM Or 0.1 PPM
4-Sampling - Diffusion or With Auto Suction Pump
5- Responce Time -
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Applied Model ATS-101M is Portable Hexane Gas Leak Detectors are capable of detecting Hexane Gas Leakase for use in various environments.
Portable Hexane Gas Leake Detector Model ATS 101M is a safety tools for detecting Flammable & Hazarduos Gases.
Hexane Gas Detector Model ATS 101M used in various industrial application like-
1- Oil & Gas Industries
2-Pertochemical Plant
3-Pharmaceuticals Industries
4-Labotatories
5-Foods & Beverage Industries
6-Manufacturing Plant
7-Environmental Monitoring
8-Confined space
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Applied Model ATS-101M is Portable Hexene Gas Leak Detectors are capable of detecting Hexene Gas Leakase for use in various environments.
Portable Hexene Gas Leake Detector Model ATS 101M is a safety tools for detecting Flammable & Hazarduos Gases.
Hexene Gas Detector Model ATS 101M used in various industrial application like-
1- Oil & Gas Industries
2-Pertochemical Plant
3-Pharmaceuticals Industries
4-Labotatories
5-Foods & Beverage Industries
6-Manufacturing Plant
7-Environmental Monitoring
8-Confined space
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks

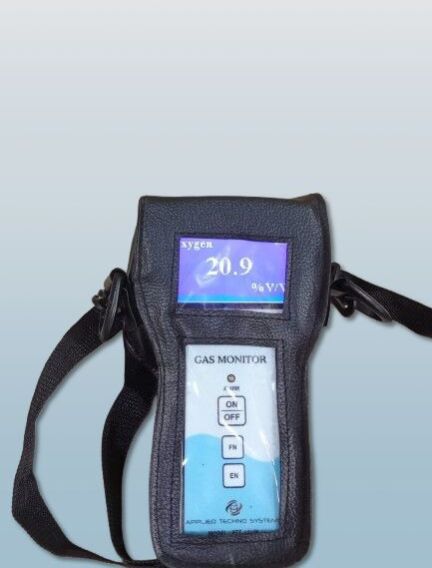

Applied Techno Systems Model ATS-101M is Portable Single/Dubel Gas Detectors are capable of detecting Oxygen inconfined space & Ambient air.
FEATURES-:
-:Complete AutomaticOperation. 1
-:28X64 Graphics Display
-:Continuous Diffusion / Suction Sampling
-:Confidence Beep every 15 seconds.
-:Complete self Integrity check on start Automatic Calibration.
-:Display of WARN & ALARM Low battery Alarm
Specifications-:
1- Range - 0-25% V/V Resolution -0.1% V/V
2- Sensor- Electrochemical
3- Accuracy- +/-0.1%
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
We are an acclaimed name engaged in offering our precious clients a superior quality range ofConfined Space Oxygen Gas Leak Detector. Our offered monitor is precisely manufactured at our highly developed manufacturing unit under the direction of highly skilled professionals. Tested against different quality parameters, this monitor is broadly demanded in the market. We offer our quality-approved samplers as per the requirements of the customers at market leading prices.
Features:
Specification:
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
We are dealing in portable formaldehyde gas leak detector, which is a device, which has been designed to detect the presence of formaldehyde gas in the air. Formaldehyde is colorless and strong-smelling gas which is demanded for various industrial and household products, such as plastics, adhesives, and fabrics. This is used for medical and laboratory settings.Supplied detector is highly useful for the large facilities or areas where formaldehyde is available in different quantities. Early detection done by this device can prevent a potential health hazard and also reduce the property damage as well as risk of explosion.
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks

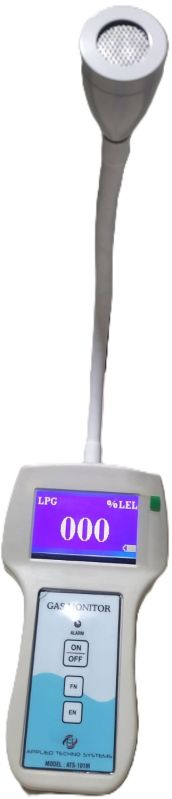

Portable LEL Gas Leak Detector Model ATS 101M. This light Hand Held LEL Gas Leak Detector is the perfect tool locating leaks of hydrocarbon gases such as compressed natural Gas.
Specifications;-
1-Range- 0-100% LEL or PPM
2-Sensor : Catalytics
3- Battery Operated.
4-Responce time :- 2-3 Second
5-Sampling : Diffussion
6-Tempreture : -10 to 50 Degree
7-Weight - 200 Gram.
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks

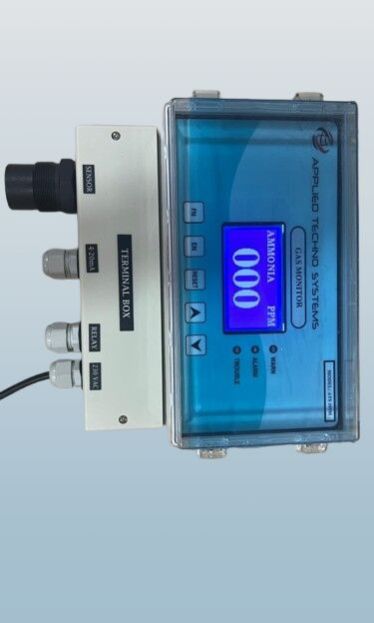

TheATS-109TDis a high-precisionOnline Ammonia (NH) Gas Monitoring Systemdesigned for continuous and real-time detection of ammonia gas in industrial and environmental applications. Built for 24/7 operation, it ensuresearly warning, process control, andregulatory compliancein ammonia-prone areas.
Technical Specifications:
| Target Gas | Ammonia (NH) |
| Measurement Range | 050 / 0100 / 0500 / 01000 ppm (customizable) |
| Sensor Type | Electrochemical / NDIR / Tunable Diode Laser (TDLAS) |
| Detection Principle | Continuous online detection |
| Response Time (T90) | 30 seconds |
| Output Signal | 420 mA / RS485 Modbus / Relay (user selectable) |
| Display | LCD/OLED (optional) |
| Alarm System | Visual + Audible with programmable setpoints |
| Power Supply | 220VAC / 24VDC |
| Data Logging | Internal storage / SCADA integration |
| Enclosure | IP65 / Flameproof (Zone 1/2 optional) |
| Operating Temperature | -10C to +55C |
| Mounting Type | Wall-mount / Panel-mount |
| Sensor Life | 1824 months typical |
Key Features:
Real-time online monitoring of NH levels
Customizablealarm thresholdsfor immediate alerts
SCADA / PLCintegration-readyvia Modbus/analog
Robust and weatherproofIP65 enclosure
Low maintenancewith long sensor life
Optionaldata logging & reporting
Applications:
Fertilizer & Chemical Plants
Animal Waste Management / Livestock Farms
Cold Storage & Refrigeration Plants
Effluent & Wastewater Treatment Plants
Ventilation Monitoring in Process Areas
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
OurMulti Channel Gas Leak Detectoroffer todays best technology with features that provide enhanced durability, performance and accuracy. With leading microprocessor technology, our multi-channel controllers can be programmed to measure a wide variety of combustible and toxic gases. In addition, features like weatherproof enclosures; large, back-lit LC displays; field-adjustable alarm levels; digital data communication capabilities; and easy-to-use front keypad switches make our multi-channel gas monitor the dependable choice for both hazardous and safe environments.
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
A Multi-Channel Gas Detection System is an advanced gas monitoring solution designed to simultaneously detect and monitor multiple gases in an environment, offering real-time analysis and protection. These systems are used in various industries, including oil and gas, chemical plants, manufacturing facilities, and laboratories, where detecting multiple gases is essential for safety, compliance, and operational efficiency.
Additional Information:
Payment Terms :
Packaging Details : Thermocal Packing With Calibration Certificate, Manual Report & Warranty Certificate
Delivery Time : 2 weeks
The Applied Techno systems Online VOC Gas Monitoing System Model ATS 208A with digital read out and alarms is a direct reading. Online VOC Gas Monitor designed to continuously analysis of concentration of VOC concentration in various industries & paint Industries.
Photoionization detectors (PIDs) are commonly used for VOC detection.
Applications -:
1-Chemical Plant & Refineries.
2-Monitoring for leaks & Emissions in Paint Booth Exhaust.
3-Indoor & Out Door Air Quality Monitoring
Specificatons -:
1- Range -0-500 PPM, 1000PPM & 2000 PPM
2- Sensor - PIID
3- Display - Graphics Display
3- Accuarcy - +/- 0.5%
4- Responce time - < 5 sec
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 3-4 Weeks

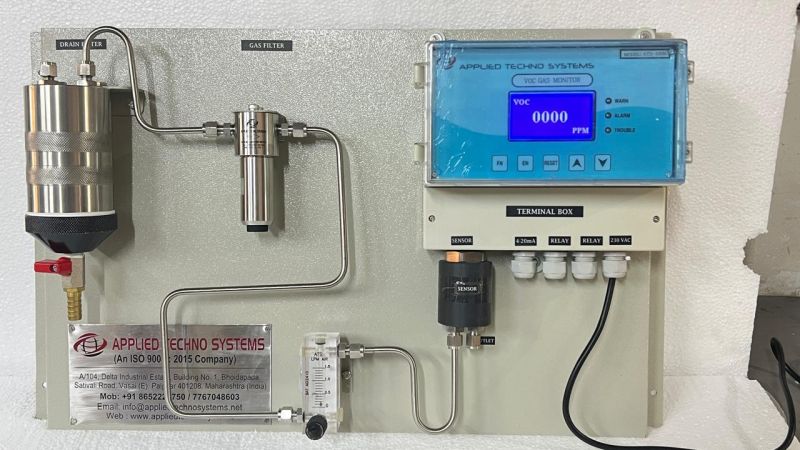

We are manufacturer of Portable Fixed VOC Gas Detector /Monitor in IndiaSpecifications:
rnAdditional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 3-4 Weeks
Model ATS -105M single channel digital control modules are designed to supervise and display the status of a single integral or remote sensor transmitter assembly. Sensor transmitter is housed in a NEMA 4X wall mount enclosure or Ex-proof enclosure. Model ATS 105M Single Channel controllers interface with industry standard two or three wire 4-20 mA sensor or other standard voltage / current sensor transmitters and provide the user with concentration display and two independent adjustable alarm levels. The Graphics display can read the concentration. LEDs on the front panel provide indication of all three alarms.
Specifications -:
Sensor - PID
Range - 0-2000 PPM
Sampling - Auto Suction Pump
Display - Graphics Display.
Accuracy - 2% of FS & 0.5% of FS
Alarm Setting - High and Very High Adjustable over full range
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Model ATS -105M single channel digital control modules are designed to supervise and display the status of a single integral or remote sensor transmitter assembly. Sensor transmitter is housed in a NEMA 4X wall mount enclosure or Ex-proof enclosure. Model ATS 105M Single Channel controllers interface with industry standard two or three wire 4-20 mA sensor or other standard voltage / current sensor transmitters and provide the user with concentration display and two independent adjustable alarm levels. The Graphics display can read the concentration. LEDs on the front panel provide indication of all three alarms.
Specifications -:
Sensor - PID
Range - 0-2000 PPM
Sampling - Auto Suction Pump
Display - Graphics Display.
Accuracy - 2% of FS & 0.5% of FS
Alarm Setting - High and Very High Adjustable over full range
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 2-3 Weeks
Model ATS -105M single channel digital control modules are designed to supervise and display the status of a single integral or remote sensor transmitter assembly. Sensor transmitter is housed wall mount enclosure or Ex-proof enclosure. Model ATS 105M Single Channel controllers interface with industry standard two or three wire 4-20 mA sensor or other standard voltage / current sensor transmitters and provide the user with concentration display and two independent adjustable alarm levels. The Graphics display can read the concentration. LEDs on the front panel provide indication of all three alarms
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks

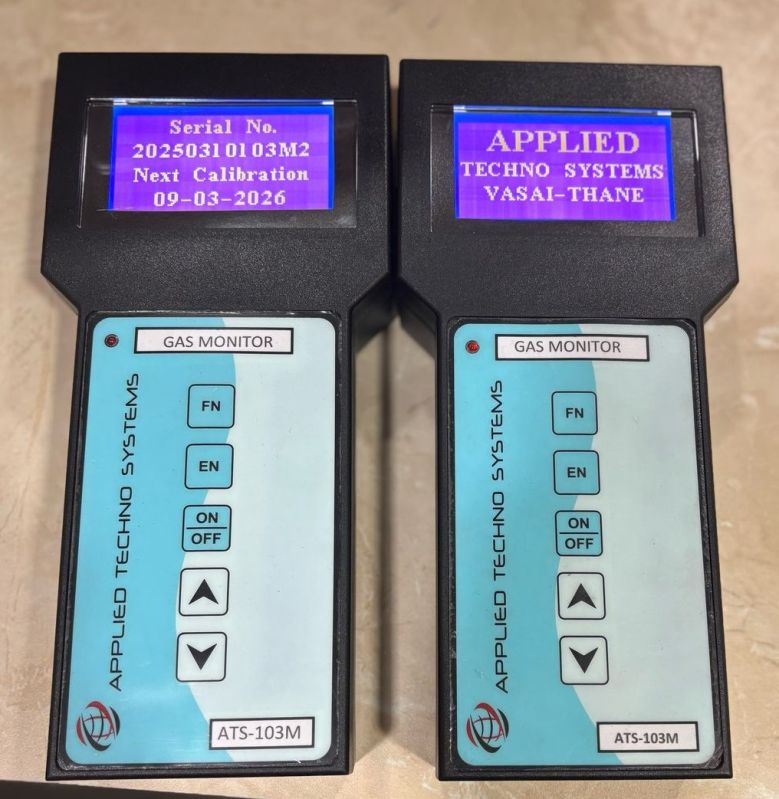

A Portable Gas Detection Device is a portable, handheld instrument designed to monitor and measure the concentration of gases in the air in real time. These devices are primarily used for safety purposes, helping to detect the presence of hazardous gases in environments where workers might be exposed to them. These devices can detect a variety of gases that pose risks to health and safety, including toxic gases, flammable gases, and oxygen levels.
Key Features of a Portable Gas Detection Device:Gas Detection Capabilities: These devices can detect a range of gases, typically including:
Real-Time Monitoring: Provides continuous, real-time measurements of gas concentrations, alerting users to dangerous levels of specific gases.
Alarms: Portable gas detection devices typically feature multiple alarm systems (audible, visual, and vibrating) that activate when gas levels exceed preset thresholds. This ensures quick response and safety.
Portability: Designed to be lightweight and compact, these devices can be worn by the user (such as clipped to a belt or worn on a harness) or carried in a pocket, providing flexibility and mobility.
Rugged Construction: Built to withstand harsh environmental conditions, including exposure to dust, water, and physical impact. Many portable gas detection devices are shockproof, waterproof, and resistant to extreme temperatures.
Battery-Powered: These devices are usually powered by rechargeable or replaceable batteries, providing several hours of use on a single charge.
Calibration: Most portable gas detectors require periodic calibration to maintain accuracy. Calibration involves exposing the sensor to a known concentration of gas to ensure the device is functioning properly.
Data Logging (Optional): Some advanced portable gas detectors come with data logging capabilities, allowing users to store measurements for later analysis or regulatory compliance.
Additional Information:
Payment Terms :
Packaging Details : The product will be securely packaged in a Thermocal box, designed to provide thermal insulation and protection during transit. Each unit will be sealed in a protective plastic cover to prevent dust, moisture, and other contaminants from damaging the product during transport and storage. Including Calibration Certificate, Warranty Certificate & Operation Manual
Delivery Time : 2 weeks
Online Sulfar Dioxide Gas Leak Monitor - Model ATS 105M. The Monitor is a single Gas Multipurpose monitor that combines simplicity and high performance in a low cost, low maintenance package.The rugged NEMA 4X or 7x assembly is suitable for a variety of industrial , commercial and general purpose applications to monitor HAZARDOUS, Toxic gases or oxygen in process Flue Gas or Ambient Air.
Specification:
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
The Online HS (Hydrogen Sulfide) Gas Leak Detector is designed for continuous, real-time monitoring of HS gas concentrations in hazardous and industrial environments. Hydrogen sulfide is a toxic and flammable gas, often found in oil refineries, wastewater treatment plants, and chemical processing units. This detector helps protect personnel and equipment by providing early warnings of gas leaks.
Technical Specifications:| Target Gas | Hydrogen Sulfide (HS) |
| Detection Range | 010 / 050 / 0100 / 0500 ppm (customizable) |
| Sensor Type | Electrochemical |
| Resolution | 0.1 ppm or better |
| Accuracy | 2% of full scale |
| Response Time (T90) | 30 seconds |
| Display | Digital OLED / LCD (optional) |
| Alarm | Audible, visual (LED), and relay output |
| Signal Output | 420 mA / RS485 Modbus / Relay |
| Power Supply | 1230 VDC or 220 VAC |
| Enclosure Protection | IP65 / Flameproof (ATEX / PESO Zone 1 available) |
| Temperature Range | -20C to +60C |
| Humidity | 095% RH (non-condensing) |
| Mounting | Wall-mounted / Duct-mounted |
| Calibration | Manual or Auto Calibration (optional) |
Continuous, real-time HS leak monitoring
Built-in audio/visual alarms for safety
Rugged & weatherproof design for harsh environments
SCADA / PLC compatible via analog or Modbus output
Long sensor life with stable performance
Easy installation & field serviceable
Suitable for hazardous zones (optional flameproof version)
Oil & gas industries
Sewage & wastewater treatment plants
Chemical & fertilizer industries
Petrochemical refineries
Tanker loading/unloading areas
Confined spaces / safety zones
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks

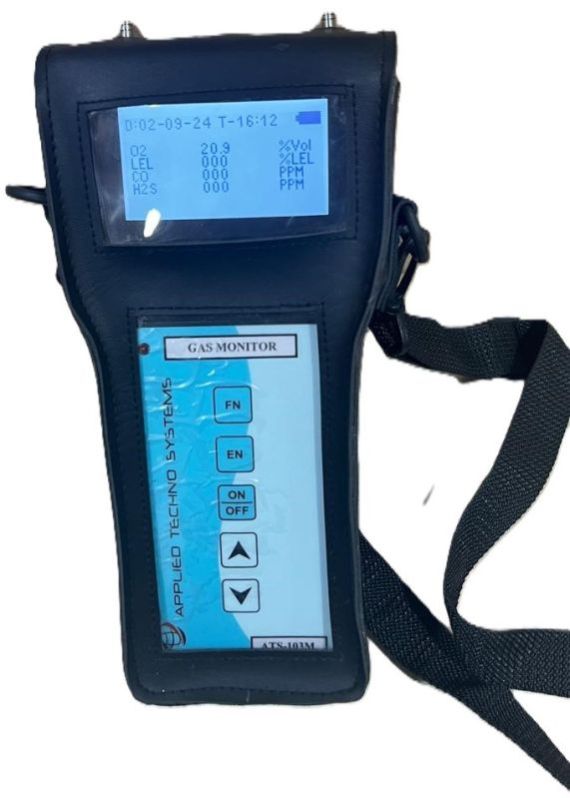

Digital Multi Gas Detectoris Portable Multi Gas Detector are capable up to Five Gases in One Instruments and detects all Toxic, Explosive and VOC (Volatile organic Compound) Vapour make them ideal use in variety of applications.
Specifications:
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 2-3 Days
Portable and multi-gas detector simultaneously monitors and displays up to f ive gases. The compact and field tough ATS-103M features a non-intrusive integrated sampling pump designed for performance, reliability and ease-of use. It 's optional Data Logging and computer interface features can be used for further detailed analysis.
DESCRIPTION SPECIAL FEATURES-
: Automatic Operation
: Self Diagnostic Check
: Proven Sensor Technology Continuous,
: Stable Alphanumeric Display
: Customized Visual & Sound Alarms
: Suitable for use in hazardous area Class-1, Div.-1, Groups A, B, C & D Zone 0 of Gas Group IIC
Specifications -:
Gas Detected -
1- O2 -0-25% V/V (Sesor EC)
2-CO- 0-2000 PPM ( Sensor EC)
3-H2S- 0-500 PPM ( Sensor EC)
4- LEL -0-100% LEL 9 ensor Catalytics)
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 2-3 Days
Portable and multi-gas detector simultaneously monitors and displays up tofive gases. The compact and field tough ATS-103M features a non-intrusiveintegrated sampling pump designed for performance, reliability and 's optional Data Logging and computer interface features can be used forfurther detailed analysis.
SPECIFICATION:
Gases detected : CH4/LEL, O2, H2S, COMeasuring range :CH4: (0.005.00)%vol (Optional)LEL: (0100)%LELO2 : (030.0)%volH2S: (0100)ppmCO: (01000) ppmResolution ratio : CH4: 0.01, LEL: 1%LEL, O2: 0.1%vol, H2S:1ppm, CO: 1ppmSensor : High quality catalytic sensor for LELElectrochemical sensor for H2S, CO & O2Sensor lifetime : 2yearsResponse time : CH4: 20S ( T90 ), LEL: 20S ( T90 ), O2: 35s(T90), H2S: 45S ( T90 ), CO: 45s (T90)Alarms : Audible--buzzer with 85dB @1m audibleVisible--flashing red LED, 20m visibleVibrationAlarm point : High and low, fully adjustableTemperature : -25 Deg. C to +55 Deg. CContinuous working time : 13hoursDisplay : Liquid Crystal Display(LCD)Battery : 3.7V/1500mACharging time : 4-5 hoursDust and water resistance : IP67Size & Weight : 136*70*37mm, 250g
On Start Up, The Instrument Automatically Goes Through Complete Self Integrity Check, On Demand. The Press Of Sampling Switch Initiates The Sampling Through SuctionAnalysis And Digitally Displays The Results. Hold Key Enables Monitor/Analysis fora ParticularParameter of Interest
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Portable HF Gas Leak Detectoris Portable HF Gas Monitor/Analyser/ Detector are capable of monitoring of HF Concentration for stack and ambient.
Features:
Applications:
Specifications:
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
Single gas detectors are devices used to detect and monitor the concentration of a single specific gas in an environment. These detectors are commonly used in industries, workplaces, and areas where the presence of hazardous gases can pose a risk to health and safety. They provide real-time monitoring and alert users when gas levels reach dangerous thresholds.
Additional Information:
Payment Terms :
Packaging Details : Thermocal Packing With Box and Plastic Rapping. And with hard copy of Calibration Certificate Manual Report & Warranty certificate.
Delivery Time : 2 weeks
Applied Techno Systems Model ATS-101M is Portable Single/Dubel Gas Detectors are capable of detecting Oxygen inconfined space & Ambient air.
FEATURES-:
-:Complete AutomaticOperation. 1
-:28X64 Graphics Display
-:Continuous Diffusion
-:Confidence Beep every 15 seconds.
-:Complete self Integrity check on start Automatic Calibration.
-:Display of WARN & ALARM Low battery Alarm
Specifications-:
1- Range - 0-25% V/V Resolution -0.1% V/V
2- Sensor- Electrochemical
3- Accuracy- +/-0.1%
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 3-4 Days
We are the Manufacture of Handheld Gas Detectors, Gas Monitors, Handheld Multi Gas Detectors, Combustible Gas Detectors, Toxic Gas Detectors, Fixed Gas Monitors, Gas Analyzers, Continuous Emission Monitoring System, Ga Leakage Detection System, Gas Analyzers , Dust Monitors Dew Point & Moisture meter, Gas Transmitters.
Applied's one of the most selling product is Handheld Multi Gas Detectors, Which can measure upto 5 Gases Simultaneously.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
A Portable Gas Monitoring System is a compact, mobile device used to detect and measure the presence of gases in various environments. These systems are typically used for safety purposes to monitor hazardous gas concentrations, ensuring that they stay within safe limits. Portable gas monitors are essential in industries like oil and gas, mining, construction, chemical processing, and environmental monitoring.
Additional Information:
Packaging Details : Thermocal Packing
Delivery Time : 2 weeks

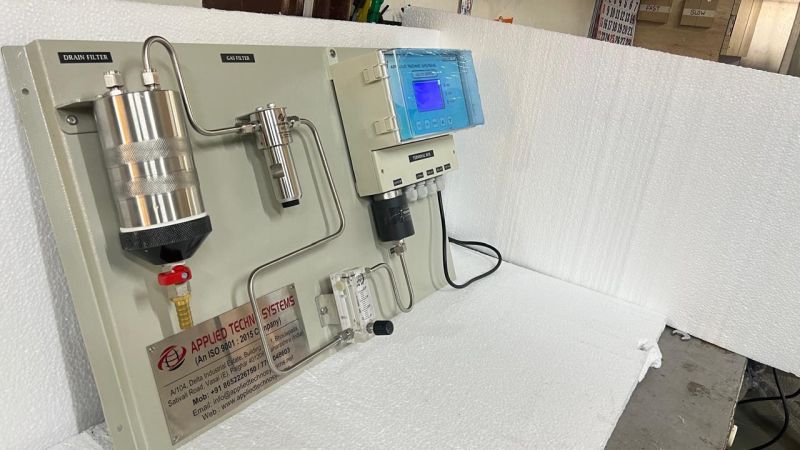

An Online Gas Monitoring System is a type of real-time monitoring solution used to detect and measure the presence of gases in the environment, usually in industrial, commercial, or hazardous areas. These systems continuously monitor gas levels and send real-time data to a centralized control system or cloud platform. The purpose of these systems is to ensure safety by detecting harmful gases, prevent leaks, and comply with regulatory requirements.
Additional Information:
Payment Terms :
Packaging Details : Thermacol packing with Calibration Certificate, Manual Report & Warranty Certificate.
Delivery Time : 2 weeks

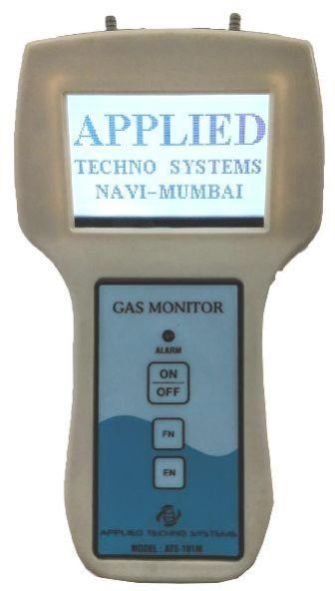

We are an acclaimed name engaged in offering our precious clients a superior quality range ofConfined Space Oxygen Gas Leak Monitor. Our offered monitor is precisely manufactured at our highly developed manufacturing unit under the direction of highly skilled professionals. Tested against different quality parameters, this monitor is broadly demanded in the market. We offer our quality-approved samplers as per the requirements of the customers at market leading prices.
Features:
Specification:
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
An LEL Gas Detector is designed to detect and measure the concentration of combustible gases in the air, typically expressed as a percentage of the lower explosive limit. The detection range is commonly 0 to 100% LEL, with a resolution of 1% LEL and an accuracy of 2% of full scale. It operates using catalytic bead or infrared (IR) sensor technology, providing a rapid response time of less than 10 seconds (T90). The device functions in ambient temperatures ranging from -20C to +50C and relative humidity up to 95% non-condensing. Power supply options include rechargeable lithium-ion batteries for portable models or 24V DC for fixed installations. The detector features real-time digital display, visual and audible alarms (typically above 20% LEL), and optional 4-20 mA or RS485 Modbus output for system integration. The enclosure is often IP65 or IP66 rated, made of flameproof or explosion-proof material, suitable for hazardous environments and compliant with ATEX, IECEx, and CE safety standards.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : BOX PACKING
model ATS-101M is Portable Single/Dubel Gas Detectors are capableof detecting Oxygen, Toxic, and Combustible gases making themideal for use in various environments. Compact, Light WeightIntelligent Unit with Application Specific Sensors Sensitive toPPB / PPM or % levels of Gases & Vapors.
The advanced Micro controller technology employed makes these ALERT METERS highly dependable, reliable and accurate. The complete automatic operation and calibration feature leaves noscope for user error.
Additional Information:
Payment Terms : L/C, D/A, D/P, Western Union,
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
Portable Single Gas Detectorsis Portable Single Gas Detectors are capable of detecting Oxygen, Toxic, and Combustible gases making them ideal for use in various environments.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
Portable HF Gas Leak Detectoris Portable HF Gas Monitor/Analyser/ Detector are capable of monitoring of HF Concentration for stack and ambient.
Features:
Applications:
Specifications:
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : box packing
Delivery Time : 2-3 WEEKS
LPG Gas Leak Detector Model ATS-101M
We have gathered a huge customer base in this domain by offering them quality checkedLPG Gas Leak Detector.This detector is used to detect leakage of liquified petroleum gas in industries and oil refineries. Our provided detector is manufactured with utmost perfection by a team of experienced professionals using the best grade components. Available in different specifications and LCD screen, thisLPG Gas Leak Detectorcan be purchased from us at cost effective prices.
Key Points:
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 3-4 Days
Applied Techno Systems Model ATS 101M is light, Handheld combustible gas leak detector is the perfect tool locating leaks of combustible gases such as Compressed Natural Gas (CNG), Liqufied Petroleum Gas (LPG)Liqufied Natural Gas (LNG), Methane (CH4), Hydrogen (H2), Carbon Dioxide (CO2).
The Micro Controller Based, Digitally Indicating Leak Detector With Long Life Semiconductor Sensor Responds Instantaneously To Minutest Leak Of All Combustible Gases And Pinpoints The Source Of The Leak Or Verify The Work Just Completed Of Being Leak Free with Its Long, Flexible Gooseneck And Sensor Cap The Unit Can Be Used For Checking Leaks From Inaccessible Hard To Reach Locations.
APPLICATIONS -:
-Liquefied Petroleum as (LPG)
-Compressed Natural Gas (CNG)
-Methane (CH4)
-Natural Gas (NG)
-Hydrogen (H2)
-Carbon Dioxide (CO2)
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : As Per Customer Requirement
Delivery Time : 2-3 Days
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 1-2 Weeks
Applied Techno Systems Portable LPG Gas Leak Detector Model ATS 101M is light, Handheld LPG gas leak detector is the perfect tool locating leaks of combustible gases such as Compressed Natural Gas (CNG), Liqufied Petroleum Gas (LPG)Liqufied Natural Gas (LNG).
The Micro Controller Based, Digitally Indicating Leak Detector With Long Life Semiconductor Sensor Responds Instantaneously To Minutest Leak Of All Combustible Gases And Pinpoints The Source Of The Leak Or Verify The Work Just Completed Of Being Leak Free with Its Long, Flexible Gooseneck And Sensor Cap The Unit Can Be Used For Checking Leaks From Inaccessible Hard To Reach Locations.
SPECIAL FEATURES-:
1-Digitally Indicates the Intensity of Leak
2-Calibrated in PPM or Explosive limit range
3-Simple to Operate
4-Highly Sensitive detection circuitry
5-Unaffected by ambient temperature and Humidity
6-Pocket size light weight design
7-Audible alarm / low battery warning buzzer
8-Tough ABS Plastic housing
DESCRIPTION APPLICATIONS
-Liquefied Petroleum as (LPG)
-Compressed Natural Gas (CNG)
-Methane (CH4)
-Natural Gas (NG)
-Hydrogen (H2)
-Carbon Dioxide (CO2)
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 3-4 Days
Overall Ranges PPB / PPM / % V/V/% LEL
Sampling Method Diffusion (D) or Suction (S)
Principle Specific to Application (EC, NDIR, Solid State, Catalytic, PID)
Sensor Life 2 - 5 years
Measurement Continuous.
Display 128 X 64 graphics Display (Reading, Alarm Icon & low battery Condition)
Resolution 0.01, 0.1 or 1 PPM, %V/V, % LEL as applicable.
Accuracy +/- 2 % & 0.5% for oxygen.
Repeatability +/- 2 %.
Response Time < 30 seconds at 95 % variation.
Alarms Low & HI Visual and Audible (User Customized))
Humidity 0 - 9 5 % R H
Power Supply 3.7 V DC Long Life Lithium Rechargeable Battery
Battery Life 6-8 hours.
Housing & IP High Impact Plastic. (ABS), Ingress Protection:IP68
Size & Weight 115(H) X180(L) X 60(D); 300 GM.
Temperature Range -30 to 55 Deg. C.
Warranty One year.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Delivery Time : 2-3 WEEKS
target gases : voc & other gases with ionization potential < 10.6ev
case : high impact pc/ abs
dimensions : 115 (w) x 180 (h) x 60(d)mm approximately
detector : plug-in pid (photo ionization detector) & solid state
ionization lamp energy: 10.6 ev standard (pid)
measuring ranges : i) 0 - 2000 ppb
ii) 0 - 10/50/100/1000/2000/5000 ppm
resolution : minimum detectable quantity
i) 1 ppb (isobutylene) for range 1
ii) 0.01 ppm for range 2
power source : long life lithium rechargeable battery
sample flow rate : 0.5 lpm
temperature range : 14f to 104f (0c to 50c) typical
humidity range : 0 to 95% rh (non-condensing)
response time : < 5 seconds
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : IN BOX
Delivery Time : 2-3 WEEKS
Portable Ammonia Gas Leak Detector Model ATS-101M
ammonia gas detector/NH3 gas leak detector/
APPLICATION
Ammonia gas detectors are an essential part of workplace safety because the strong-smelling ammonia gas can become toxic when exposed to air.Continuous monitoring of ammonia concentration in the air lessens the risk of skin, eye, nose, and throat irritation and may even help prevent respiratory failure
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
portable ozone gas leak dtector/ozone gas detector /ozone analyzer/o3 gas detector/o3 analyzer/ozone gas monitor /o3 monitor
application:-
handheld ozone gas detector is widely used foro3 gas measurement in the clean area, pharmaceutical factory, food factory, cosmetics factory, laboratoryand so on
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
portable methane(ch4) gas detectors model ats-103m./ methane gas detector /ch4 detector
applications where methane gas detectors are widely utilized include:
l landfills.
petroleum refineries.
municipal and industrial wastewater treatment plants.
organic chemical processing facilities.
buildings using natural gas for heat and electricity.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Packaging Details : BOX PACKING
Delivery Time : 2-3 WEEKS
ATS-101M Portable Gas Leak Detector/Monitoris portable Single/Dubel Gas Detectors are capable of detecting Oxygen, Toxic, and Combustible gases making them ideal for use in various environments. Compact , Light weight Intelligent Unit with Application Specific Sensors Sensitive to PPB / PPM or % age levels og gases & Vapors.
Features:
Specification:
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : As Per Customer Requirement
Delivery Time : 2-3 Days
LPG Gas Leak Detector Model ATS-101M
We have gathered a huge customer base in this domain by offering them quality checkedLPG Gas Leak Detector.This detector is used to detect leakage of liquified petroleum gas in industries and oil refineries. Our provided detector is manufactured with utmost perfection by a team of experienced professionals using the best grade components. Available in different specifications and LCD screen, thisLPG Gas Leak Detectorcan be purchased from us at cost effective prices.
Key Points:
Additional Information:
Payment Terms : T/T, Western Union,
Packaging Details : 30 seconds at 95% variation
Delivery Time : 1-2 Weeks
| specifications: (o2 , co, h2s, lel) accuracy : +/-2%. & 0.5% for o2 display : 128 x64 graphics display sampling : auto suction through inbuilt pump alarm : high & low power supply : rechargeable lithium battery response time: 30 seconds at 95% variation. operating temperature: -5 to 55deg.c data logger usb computer interface |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Packaging Details : IN BOX PACKING
Delivery Time : 2-3 WEEKS
Mr. M L Yadav (APPLIED TECHNO ENGINEERS PRIVATE LIMITED)
104, Delta Industrial Estate, Building No.1, Bhoidapada, Sativali Road, Vasai East, Mumbai, Maharashtra - 401208
https://www.appliedtechno.co.in
Share us via
