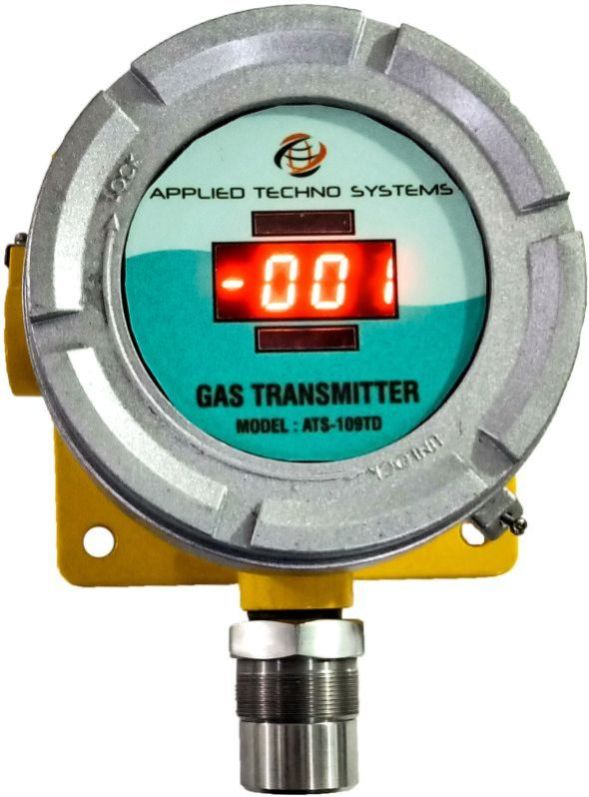

Fixed Type Nitrogen Dioxide Gas Leak Detectorsingle channel digital control modules are designed to supervise and display the satus of a single intergal or remote sensor Model ATS 109TD assembly. Model ATS 109TD is housed in a NEMA 4 x wall mount enclosure or Ex -proof enclosure. Model ATS 105M Single channel controllers interface with industry standred two or three wire 4-20mA sensor or other standred voltage / current sensor transmitters and provide the user with concentration display and two independent adjustable alarms levels. The Graphics display can read the concentration. LEDs on the front panel provide indication of all three alarms.

• The alarm relays can be programmed to be either latching or non-latching and to activate either as a rising or failing alarm. The relays are SPDT Form C type rated at 5 Amps. to provide direct alarm action, reducing the need for interposing relays . Local Alarm devices can be connected to the configurable on board alarms.The Fail safe supervisory provides a reliable indicaiton that the Monitor is fully operational. The "Fail Safe" design monitors the input power and sttaus of the Power suppy for the e amplifiers.A failure of any one of these functions illuminates a " Fault" Light Emitting Diode.

Specification:

• Minimum Resolution: 0.1 or 1 unit of the range
• Indication: Digital Continuous
• Mounting: wall
• Sensor Technology: Appropriate to Application
• Detection Method: Diffusion / Sample Draw Pump
• Accuracy: +/- 2%
• Linearity: +/- 2%
• Relative Humidity: 0-99 % Non-condensing
• Response Time: ( 90% in 10 seconds)
• Singal Output for Recorder: 0- IV, 420 mA (Optional)
• Alarm Setting: High and very High Adjustable over full range
• Alarm Circuits: SPDT 5 AMP 220V Contacts
• Controls: Zero , Span, Alarm setting

Keeping track with the market development, we are engaged in offering our clients with a wide collection ofOxygen Gas Sensor. It is used for the Detection of combustible, toxic Gases and Oxygen. The offered sensor is meticulously tested on different quality parameters and is extensively demanded in various industries. Provided sensor is manufactured by utilizing best quality raw material and advanced technology. In line with industry standard, we provide the entire range in various customized options and at affordable prices.

Features:

• Precision-designed
• Superior performance
• Reliable operations

Applications:

• Environmental Monitoring
• Area Monitoring
• Pulp Paper
• Leak Detection Monitoring
• Chemical Plants
• Refineries/Petrochemical
• Hazardous Area
• Water/West water Treatment
• Fire Services
• Mine

Other Details:

• Detection of combustible, toxic Gases and Oxygen
• Non-intrusive calibration
• RED LED Display
• Smart sensors
• Programmable relays
• 2-wire, 3-wire, ModBus
• Flame proof Junction Box
• Available in stainless steel
• Available in wireless version
• Flame proof Junction Box Approval CCOE CMRI.

Fixed Type Nitrogen Dioxide Gas Leak Detectorsingle channel digital control modules are designed to supervise and display the satus of a single intergal or remote sensor Model ATS 109TD assembly. Model ATS 109TD is housed in a NEMA 4 x wall mount enclosure or Ex -proof enclosure. Model ATS 105M Single channel controllers interface with industry standred two or three wire 4-20mA sensor or other standred voltage / current sensor transmitters and provide the user with concentration display and two independent adjustable alarms levels. The Graphics display can read the concentration. LEDs on the front panel provide indication of all three alarms.

• The alarm relays can be programmed to be either latching or non-latching and to activate either as a rising or failing alarm. The relays are SPDT Form C type rated at 5 Amps. to provide direct alarm action, reducing the need for interposing relays . Local Alarm devices can be connected to the configurable on board alarms.The Fail safe supervisory provides a reliable indicaiton that the Monitor is fully operational. The "Fail Safe" design monitors the input power and sttaus of the Power suppy for the e amplifiers.A failure of any one of these functions illuminates a " Fault" Light Emitting Diode.

Specification:

• Minimum Resolution: 0.1 or 1 unit of the range
• Indication: Digital Continuous
• Mounting: wall
• Sensor Technology: Appropriate to Application
• Detection Method: Diffusion / Sample Draw Pump
• Accuracy: +/- 2%
• Linearity: +/- 2%
• Relative Humidity: 0-99 % Non-condensing
• Response Time: ( 90% in 10 seconds)
• Singal Output for Recorder: 0- IV, 420 mA (Optional)
• Alarm Setting: High and very High Adjustable over full range
• Alarm Circuits: SPDT 5 AMP 220V Contacts
• Controls: Zero , Span, Alarm setting

PORTABLE SINGLE/MULTI GAS MONITOR ( MODEL ATS-103M )

INTRODUCTION:
Portable and multi-gas detector simultaneously monitors and displays up tofive gases. The compact and field tough ATS-103M features a non-intrusiveintegrated sampling pump designed for performance, reliability and 's optional Data Logging and computer interface features can be used forfurther detailed analysis.

SPECIAL FEATURES:
Automatic OperationSelf Diagnostic CheckProven Sensor TechnologyContinuous, Stable AlphanumericDisplayCustomized Visual & Sound AlarmsSuitable for use in hazardous areaClass-1, Div.-1, Groups A, B, C & DZone 0 of Gas Group IIC
Diffusion or Suction SamplingLong Life Rechargeable BatteriesData Logging and Rs 232 Output CapabilityOperation modes: Real time always readyLight weight, handy and simple to useSampling probeCSIR-CIMFR Approved

SPECIFICATION:
Gases detected : CH4/LEL, O2, H2S, COMeasuring range :CH4: (0.005.00)%vol (Optional)LEL: (0100)%LELO2 : (030.0)%volH2S: (0100)ppmCO: (01000) ppmResolution ratio : CH4: 0.01, LEL: 1%LEL, O2: 0.1%vol, H2S:1ppm, CO: 1ppmSensor : High quality catalytic sensor for LELElectrochemical sensor for H2S, CO & O2Sensor lifetime : 2yearsResponse time : CH4: 20S ( T90 ), LEL: 20S ( T90 ), O2: 35s(T90), H2S: 45S ( T90 ), CO: 45s (T90)Alarms : Audible--buzzer with 85dB @1m audibleVisible--flashing red LED, 20m visibleVibrationAlarm point : High and low, fully adjustableTemperature : -25 Deg. C to +55 Deg. CContinuous working time : 13hoursDisplay : Liquid Crystal Display(LCD)Battery : 3.7V/1500mACharging time : 4-5 hoursDust and water resistance : IP67Size & Weight : 136*70*37mm, 250g

A Single Gas Monitoring System is a specialized device designed to detect and measure the concentration of a single gas in the air. These systems are essential for environments where exposure to specific hazardous gases poses a serious health or safety risk. They are compact, easy to use, and often portable, providing real-time monitoring and alerts to ensure safety in various industries.

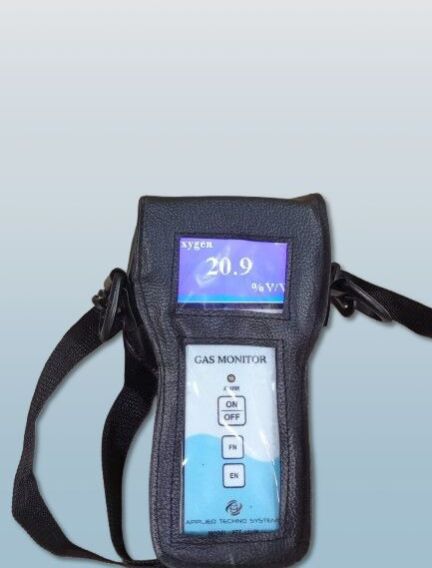

Applied Techno Systems Model ATS-101M is Portable Single/Dubel Gas Detectors are capable of detecting Oxygen inconfined space & Ambient air.

FEATURES-:
-:Complete AutomaticOperation. 1
-:28X64 Graphics Display
-:Continuous Diffusion
-:Confidence Beep every 15 seconds.
-:Complete self Integrity check on start Automatic Calibration.
-:Display of WARN & ALARM Low battery Alarm

Specifications-:
1- Range - 0-25% V/V Resolution -0.1% V/V
2- Sensor- Electrochemical
3- Accuracy- +/-0.5%

Portable Configned Space Gas Monitoris portable Single/Dubel Gas Detectors are capable of detecting Oxygen, Toxic, and Combustible gases making them ideal for use in various environments. Compact , Light weight Intelligent Unit with Application Specific Sensors Sensitive to PPB / PPM or % age levels og gases & Vapors.

Features:

• Complete Automatic Operation
• LCD Display
• Continous Diffusion / Suction Sampling
• Confidence Beep every 15 seconds
• Complete self Interity check on start
• Automatic Calibration
• Display of WARN & ALARM
• Low Battery Alarm

Specification:

• Overall ranges: PPB / PPM /% V/V% LEL
• Sampling Method: Diffusion (D) or Suction (S)
• Principle: Specific to APplication
• Sensor Life: 2-5 Years
• Measurement: Continuous
• Display: Graphic LCD
• Accuracy: +/-2% & 0.5% for oxygen
• Response time: < 10 seconds at 95% variation
• Housing : High Impact Plastic (ABS)
• Power supply: Lithium Rechargeable Battery.
