Industrial Cleaning Machine

Leading Manufacturer, Supplier & Retailer of Flexo Plate Cleaning Machine and Offset Plate Cleaning Machine.

Min. Order (MOQ) 1 Piece
Number Of Flower Plate Cleaning Machine
Material Stainless Steel, Powder Coated Mild Steel
Speciality Cleaning & Drying In One Pass, Both Direction Cleaning & Drying, User Friendly Electrical Control, Environmentally Friendly Cleaning Solutions, Thermostatically Controlled Hot Air, Unique Sticky Plate System
Usage Cleaning Both Letterpress & Flexo Plates

Description:

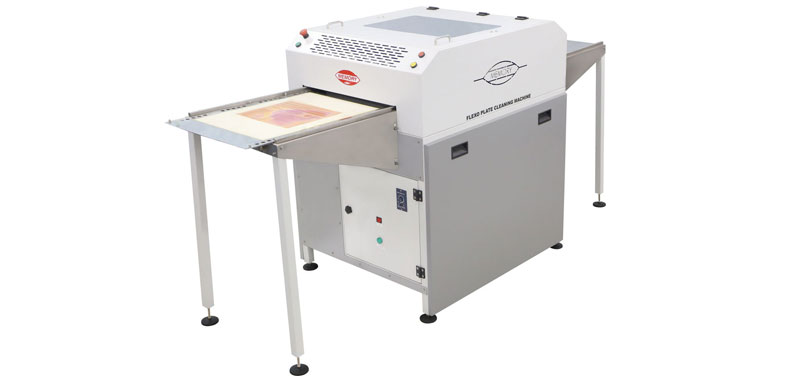

Memory's Flexo Plate Cleaning Machine is designed for cleaning both Letterpress & Flexo Plates in very gentle way leaving them 100% clean & dry.
Corrosion free Stainless Steel Bath Tank & underneath Tank, Powder coated mild steel structure and sturdy fabrication ensure trouble free working for years.
Simple user friendly electrical control for ease of operation ensures cleaning, rinsing & drying of plates in one pass.
Plate cleaner washes all type of inks & are designed for environmentally friendly cleaning solutions.
Results have proven that "Hands Free" approach to Flexo Plate Cleaning Offers :
Excellent cleaning, capability for hard to clean reverse areas & screens, reduces plate damage and offers unsurpassed consistency in cleaning of letterpress or Flexo Plates.
Memory automatic Flexo Plate Cleaner is designed to improve productivity and performance.

Salient Features

Washing Process

The Dirty Plates are mounted on unique sticky plate system so tht plates are held firmly in place during the cleaning and drying process.
The unique combination of brushes (oscillating & Fixed Brush) ensures 100% cleaning thus saves time & reduces plate damage.
Thermostatically controlled hot air blowing ensures cleaned & dried plates on both ends.

Needs 6 Bars compressed Air at the time of installation

Details

Technical Specifications	Model 'A'	Model 'B'
Max. Plate Width	450 mm	820 mm
Chemical Tank Capacity	25 Ltrs.	35 Ltrs.
Water Tank Capacity	15 Ltrs.	25 Ltrs.
Power Consumption	2.5 KW, Single Phase	4.5 KW. Single Phase
Dimension (L x W x H)	2290 x 940 x 1195	3000 x 1300 x 1220 mm
Bigger size available on request

Download Detail File : Click Here

View Complete Details

Min. Order (MOQ) 1 Piece
Number Of Flower Plate Cleaning Machine
Material Stainless Steel Bath Tank, Mild Steel Structure
Speciality PLC Touch Panel Control, Automatic Re-circulation Of Cleaning Chemical, Twin Oscillating Brush With Variable Speed, Open Rinse System With Fresh Water & Rotary Brush, Easily Removable Rubber And Brush Rollers
Usage Cleaning Ink From Offset Printing Plates
Optional Features Closed Loop Water Re-circulation System
Suitability Sheet-fed Offset Presses
Maintenance Easy And Quick Daily Cleaning
Operator Friendly Yes

Product Details

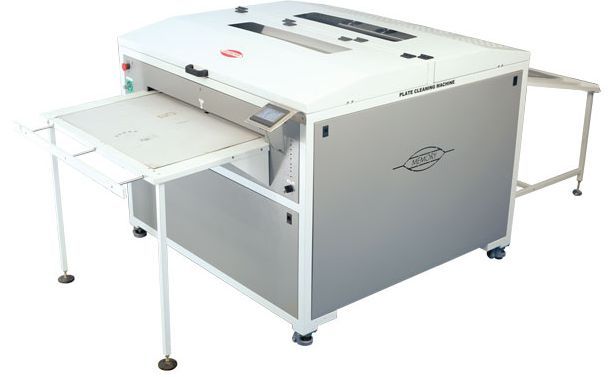

“Memory” Offset Plate Cleaning Machine is designed for efficient and fast Cleaning of ink from Ink from Offset Printing Plates. The machine is suitable for Sheet-fed offset presses where plates are stored for re-print jobs.
Corrosion free Stainless Steel Bath Tank & underneath tank, Sturdy mild steel structure and controlled gum layer with on / off option ensures trouble free working for years.
Features includes PLC touch panel control, automatic re-circulation of cleaning chemical & twin oscillating brush with variable speed for ink removal.
Slot in the all lower rollers helps in cleaning single edge bent plates thus ensures easy mounting of plates for re-print jobs.
Plates are washed with water after ink cleaning with the help of Open Rinse System with fresh water & Rotary Brush for effective cleaning.
All rubber rollers and brush rollers are easily removable thus ensures easy and quick cleaning of the machine on daily basis & for regular maintenance.
Return on investment is very fast as one saves Printing Machine down time used for cleaning of ink & gumming plates before the removal from plate cylinders.
Above all it is operator friendly, keep floor clean, waste cleaning chemical can be used for cleaning the offset machine for removing ink spots etc.

Optional Available : Closed Loop Water Re-circulation system.

Details

Technical Specifications	Model 'A'
Plate Width Max.	840 mm
Plate Length (Min - Max)	250 - 1080 mm
Plate Thickness	0.15 - 0.40 mm
Speed	15 -30 cms / min
Chemical Tank Capacity	2 tank ( 25 Ltrs. each)
Gum Tank Capacity	5 Ltrs.
Power	5 KW / 220 Vlts / 50 Hz
Dimensions (L x W x H)	2950 x 1440 x 1150 mm
Net Weight	500 Kgs
Bigger size available on request
