Pasting Machines

We are leaders in the market for providing best range of Gluing Machine with Conveyor and Gluing Machine

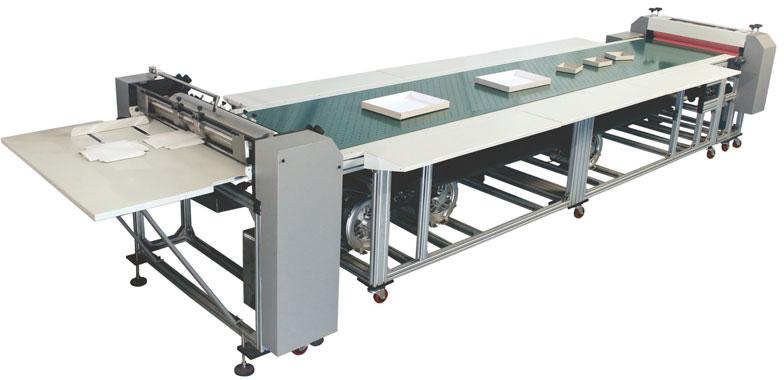

Gluing Machine With Conveyor

Min. Order (MOQ) 1 Piece
Number Of Flower Gluing Machine
Material Aluminum Profile Structure
Purity Suction Hold Conveyor Belt, Designed For Short & Medium Run Jobs, Top Side Gluing System, Suitable For Hot Melt & Cold Glue, CNC Cylindrically Grinded Roller For Even Glue Application
Application Sheet To Sheet Pasting Jobs

"Memory" Gluing Machine with Conveyor is designed for short & medium run jobs. The Gluing Machine consists of:

Sturdy Aluminum profile structure with suction hold conveyor belt to ensure high quality boxes.
Specially designed gluing system for top side gluing suitable for Hot melt & Cold glue application.
CNC cylindrically grinded roller ensures even glue application on all cover materials.

Optional : Pressing Station with twin set of Silicon Rollers for sheet to sheet pasting jobs.

Details

Technical Specifications	Model 'A'
Paper Width (Min.-Max)	90-635 mm
Paper Length (Min-Max)	200-800 mm
Paper Thickness	90-300 gsm
Speed	7-30 pcs / min
Power	8 KW / 380 Volts / 50 Hz
Dimensions (L x W x H)	6500 x 1700 x 1100 mm
Net Weight	700 Kgs

View Complete Details

Ask Latest Price & Details

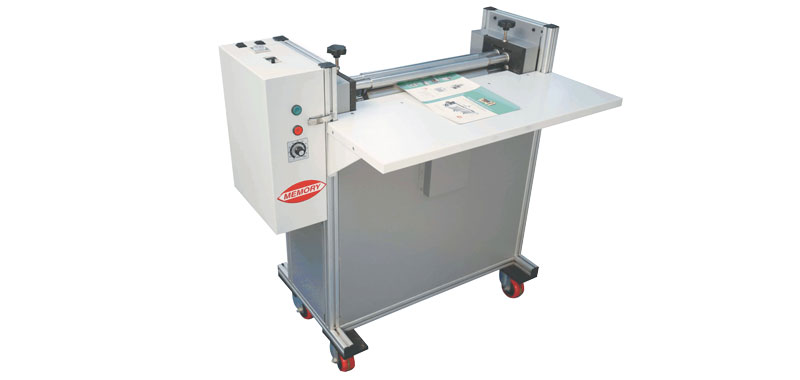

Gluing Machine

Min. Order (MOQ) 1 Piece
Number Of Flower Manual Gluing Station
Material Metal
Purity Indirect Heating For Hot Melt Glue, Facility To Add Water For Evaporation
Packaging Type Industry Standard Packaging
Storage Type Room Temperature

"Memory" Gluing Machine consists of Manual Gluing Station for Hot Melt & Cold Glue. The machine is equipped with in - direct heating for hot melt glue with facility to add water which evaporates due to heat.

Details

Technical Specifications	Model 'A'
Paper Size	460 x 800 mm
Paper Thickness	90 - 250 gsm
Speed	Upto 250 Sheets / Hour
Glue Application	From Bottom Side
Power	2 KW / 220 Volts / 50 Hz
Dimensions (L x W x H)	1100 x 20 x 1140 mm
Net Weight	150 kgs
