Surface Coating And Paint Equipments
Our product range contains a wide range of Conveyorised Plate Curing Machine and Plate Curing Equipment

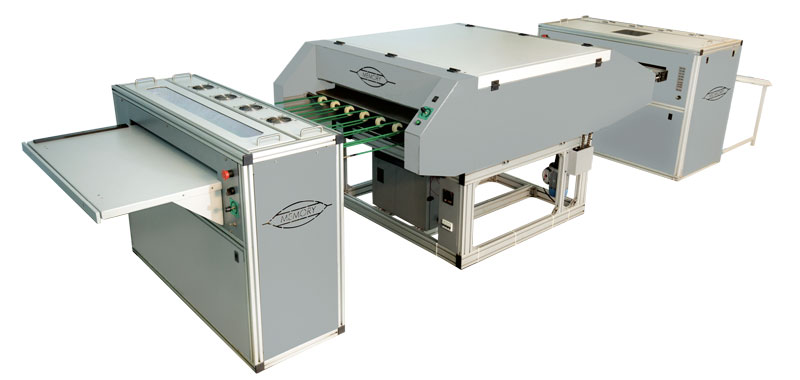

Conveyorised Plate Curing Machine
-
Min. Order (MOQ)
1 Piece
-
Number Of Flower
Plate Curing Machine
-
Material
Aluminum Profile Structure
-
Usage
Baking CTP / CTCP / Conventional PS Plates
-
Compatibility
Can Be Attached With Conveyor Bridge To CTP Processor For In-line Working
-
Control Panel Features
Main On/off, Digital Temperature Meter With Thermostat, LED Display For Heaters & Variable AC Drive
-
Insulation
Completely Insulated To Save Heat Loss And Avoid Hot Air In Surrounding Working Areas
-
Temperature Range
220°C To 250°C For Even Baking
-
Additional Features
Built-in Coater For Baking Solution Application, In-line Wash / Gum / Dry Unit
-
Benefits
Long Print Runs With Same Sharpness, Smooth Running On Press, Easy To Store Plates For Repeat Jobs
-
Safety
In-line Process Avoids Direct Contact Of Heat With Operator, User & Operation Friendly
Product Details
- “Memory” Plate Curing Machine is designed to Bake CTP / CTCP / Conventional PS Plates
- Simple & easy control panel includes main on/off, digital temperature meter with thermostat, LED display for heaters & variable AC drive.
- The machine is specially designed and is completely insulated thus saves heat loss and avoids Hot Air in the surrounding working areas.
- Thermostatically controlled Hot Air maintains inside temperature evenly, thus ensure even baking at a temperature ranging form 220°C to 250°C.
- Sturdy Aluminum profile structure with built - in Coater for baking solution application & In line Wash / Gum / Dry Unit eliminates skilled
- labour requirement thus ensures dry plates ready for press use.
- Baking helps to give long print runs with same sharpness thus ensures smooth running on press and easy to store plates for repeat jobs.
- The unit can be attached with conveyor bridge to the CTP Processor for In-line working.
- The In-line process avoids direct contact of heat with the operator thus makes it user & operation friendly.
Details
| Technical Specifications |
Model 'A' |
Model 'B' |
| Plate Curing Machine |
| Plate Width Max. |
820 mm |
1150 mm |
| Plate Length Max. |
1060 mm |
1450 mm |
| Power |
3.5 KW / 220 Volts / 50 Hz |
3.5 KW /220 Volts / 50Hz |
| Wash/ Gum/ Dry Unit |
| Dimension (L x W x H) |
5400 x 1370 x 1220 mm |
6150 x 1700 x 1220 mm |
| Net Weight |
650 Kgs |
800 Kgs |
View Complete Details

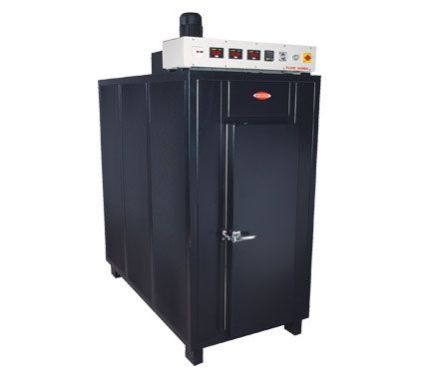

Plate Curing Equipment
-
Min. Order (MOQ)
1 Piece
-
Name
Plate Curing Equipment
-
Number Of Flower
Curing Machine
-
Brand Name
Memory
-
Material
Mild Steel, Powder Coated
-
Purity
Designed To Bake CTP / CTCP / Conventional PS Plates, Operator Friendly Panel, Digital Temperature Meter With Thermostat, Amp Meter & Electronic Timer With Buzzer, Thermostatically Controlled Hot Air, Temperature Range: 220°C To 250°C, Capacity To Bake Four P
Product Details:
- “Memory” Plate Curing Machine is designed to Bake CTP / CTCP / Conventional PS Plates
- Sturdy mild steel powder coated fabrication.
- Operator friendly panel includes main on/off, digital temperature meter with thermostat, Amp. meter & electronic time with buzzer.
- The oven is specially designed to save heat loss and is completely insulated thus avoids Hot Air in the surrounding areas.
- Thermostatically controlled Hot Air maintains inside temperature evenly thus ensures even baking at a temperature ranging from 220°C to 250°C.
- Baking helps to give large prints runs with same sharpness thus ensures smooth running on press and easy to store plates for repeat jobs.
- Four plates can be baked at a time.
Technical Specifications
| Technical Specifications |
Model 'A' |
Model 'B' |
| Plate Width Max. |
820 mm |
1150 mm |
| Plate Length Max. |
1060 mm |
1450 mm |
| Power |
7.5 kW/380 Volts / 50 Hz |
15 KW / 380 Volts/ 50 Hz |
| Dimensions (L x W x H) |
1370 x 770 x 1840 mm |
1960 x 770 x 2300 mm |
| Net Weight |
450 Kgs |
600 Kgs |
View Complete Details
