Printing Machines & Equipment

We offer a complete product range of Plate Processor, Screen Exposing Frame and Video Plate Punch For Sheet-Fed Offset

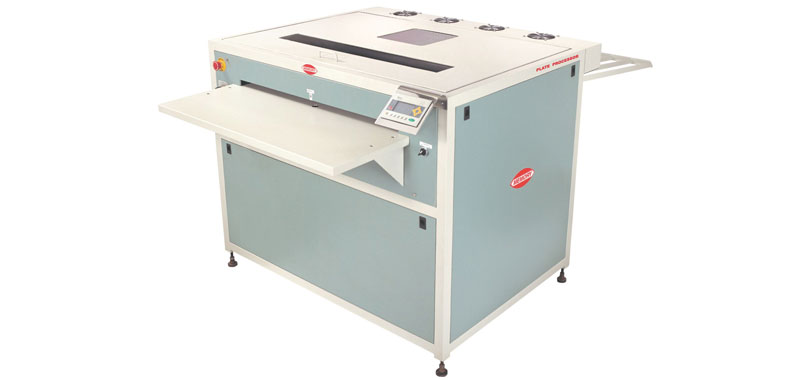

Plate Processor

Min. Order (MOQ) 1 Piece
Number Of Flower Plate Processor For Pre-sensitized Offset Plates
Material Stainless Steel Bath Tank, Powder Coated Mild Steel Structure
Feature PLC Control & LCD Display, Automatic Developer Replenishment, Level Sensors For All Bath Tanks, Plate Washing From Top & Bottom, Slot For Re-wash, Re-gum And Re-dry, Dip Tank With Independent Brush Roller, Submerged Re-circulation Of Developer, Heat Exchanger Fo

Product Details:

"Memory" Plate Processor is designed for reliable, efficient and fast processing of Positive or Negative Pre-sensitized offset plates.
Corrosion free Stainless Steel Bath Tank & underneath Tank, Powder coated mild steel structure and sturdy fabrication.
PLC Control & LCD Display enables operator to control the speed of the main drive, temperature, replenishment etc.
Features include automatic developer replenishment, level sensors for all bath tanks, plate washing from top & bottom with water, slot for re-wash, re-gum and re-dry.
Dip Tank with impendent brush roller lead to fast and consistent development of P.S.Plates.
A submerged re-circulation of developer and heat exchanger controls temperature.
Re-circulation of water after filtration eliminates plumbing and water consumption is reduced to minimum.
EPDM Rubber rollers and Brush rollers are easily removable for cleaning and washing.

Details

Technical Specifications	Model 'A'	Model 'B'
Max. Plate Width	660 mm	840 mm
Max. Plate Length	Unlimited	Unlimited
Min. Plate Length	500 mm	500 mm
Plate Thickness	0.15 - 0.40 mm	0.15 - 0.40 mm
Speed	300-600 mm / min	300-600 mm/min.
Developer Tank Capacity	15 Ltrs.	15 Ltrs.
Gum Tank Capacity	5 Ltrs.	5 Ltrs.
Power Consumption	3.5 KW	4 KW
Line Voltage	220V Single Phase, Neutral & Earth	220V Single Phase, Neutral & Earth
Dimensions (L x W x H)	1020 x 1020 x 860 mm	1170 x 1260 x 860 mm
Bigger Size available on request

View Complete Details

Ask Latest Price & Details

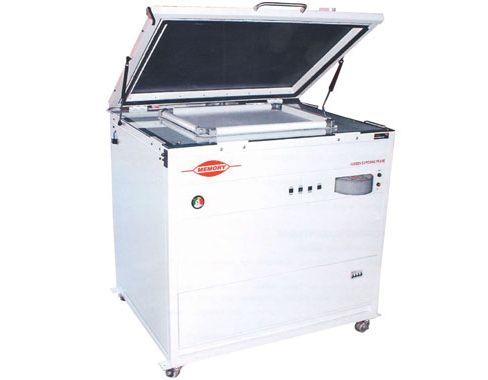

Screen Exposing Frame

Min. Order (MOQ) 1 Piece
Number Of Flower Screen Printing Equipment
Material Aluminium Square Pipe Frame, Powder-coated
Feature Special Pump For Elasticity, Suction And Vacuum Pumps For Air Removal And Film Bonding, 1 Kw, 3 Kw, 6 Kw Halide Light Sources, Micro Processor Based Light Integrated Electronic Timer, Optional Drying Systems With Thermostatic Control, Self Tightening Screen Fr
Packaging Type Standard Industrial Packaging
Storage Type Store In A Dry, Cool Place
Application Textile Screen Printers, Graphic Printers
Model Variability Different Models Available Per User Needs
Performance Increases Durability And Performance Of Squeegee Blade

With the increase demand from the Textile Printers for high-density publishing and fine graphics on dark garment, we have successfully designed and delivered our "exposing System" for today's textile screen printers.

An ideal equipment for transferring on the screen frame. This powder-coated frame has the following features:

Special pump draws the elasticity that does not tear from frequent use with the edges of aluminium square pipe frame
The suction pump draws the excess air fast and the vacuum pump makes the perfect bondage between the film and screen frame. Hence perfect sharpness.
1 Kw, 3 Kw, or 6 Kw Instant Start Halide light sources are recommended all over the world for reproduction of sharp graphic images.
Different models are available according to the requirement and convenience of the end user.
Micro Processor base light integrated electronic times has multiple memories and sequential operations.
Optional : Drying Systems in frame with top exposure where Thermostatically controlled hot air is circulated for drying.
The equipment is operator friendly.

Self Tightening Screen Frame

Cost- effective and user friendly.
More accurate for achieving hi-tension for optimizing ink flow characteristics and mileage.
Most required and used by Textile Screen Printers for four color, half tone and three dimensional printing with die-cut sharpness and print clarity.
Used both on manual and automatic for smooth, faster production without wanton ink build-up.
Operator takes 5-10 minutes to stretch the mesh for required job.
Graphic Printers will save in coat upto 30%
The performance and durability of the squeegee blade increase.

Drier

Thermostatically controlled drier for drying the screen frames.

View Complete Details

Ask Latest Price & Details

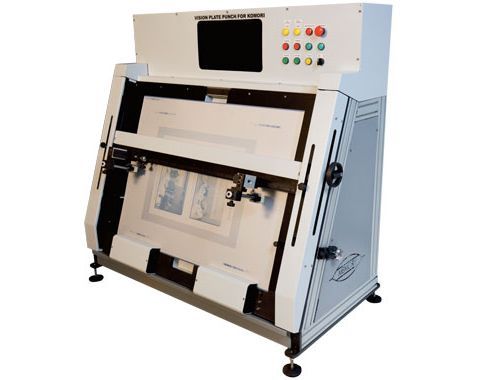

Video Plate Punch For Sheet-Fed Offset

Min. Order (MOQ) 1 Piece
Number Of Flower Plate Punching Machine
Material Aluminum Profile Structure
Feature Twin CCD Colored Cameras With 40 X Magnification, Pneumatically Controlled Punching Device, Electrically Controlled Three Point Register System, Cameras Mounted On Linear Guide Rail, Auto Centering
Storage Type Industrial Standard Storage

Video Plate Punch is designed keeping in mind the growing demand of quality CTP Plates with commercial & packaging printers. The machine consists of :

Twin CCD Colored Cameras with 40 X magnification.
Pneumatically Controlled Punching device upto 40 inches Presses.
Electrically controlled Three Point Register System with auto centering & cameras mounted on Linear Guide Rail helps in aligning the register marks with the preset master for accurate punching.
Sturdy Aluminum profile structure.
