Industrial Machinery #1003249

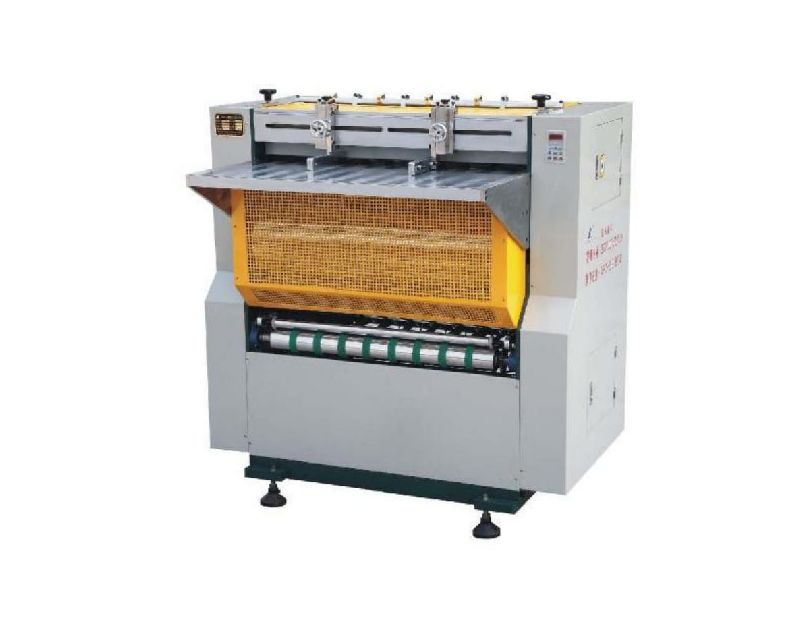

The Machine is special designed for notching v type groove, use for industry-cardboard, Ash cardboard and other several cardboard. It adopts new way of transportation principle. Wrap the cardboard on the entire surface of the roller. It can guarantee the groove more accurately, no deviation and straightly. The machine has the feature of high accuracy, fast speed and durable cutting blade.

Suitable for

"Memory" Case maker is design for short & medium run jobs. The machine is suitable for the production of Diary & Note Book Covers, Book Covers, Box Files, Photo Album Cover, Game & Puzzle Boards, Clip Boards, Ring Files, Table Calendar Stands etc.

Salient Features :

• Sturdy Aluminium profile structure for long life, user friendly PLC Touch Screen display for ease of operation.
• Stainless Steel Water & Glue Tank for corrosion free long lilfe and in-direct heating for the use of Hot Glue.
• Cylindrically Grinded Stainless Steel Gluing Rollers ensures even glue application on all tupe of cover materials.
• Operator friendly adjustments for job setup and quick changeover.
• Pneumatically controlled register device with Auto Suction bed for Hard Boards to be placed on cover mterial ensures accurate positioing and results in consistent and quality production of hard covers.
• Standard feature to select single (for lining) job or Two folds in one pass.
• Adjustable roller height for variable board thickness.
• Silicon Rollers for guiding & final pressing removes air bubbles from covers after turning-in.
• Rolller pressure cn be adjusted as per board thickness.
• Automatic Sensor based Counter and Large delivery stand to stack-the finised covers.

(Note : Needs compressed air connection at the time of installtion at customer end)

Suitable for

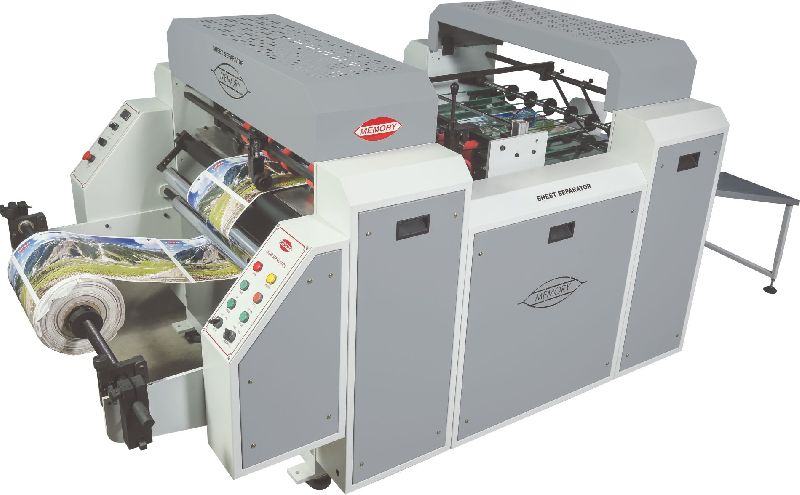

"Memory" Sheet Separator Machine is suitable for automatic separation of BOPP/PVC laminated rolls to sheets. Pneumatically controlled Tear off system ensures de-sheeting of laminated sheets at high speed.

Salient Features :

• suitable for BOPP / PVC Films only.
• Equipped with frequency controlled 2 HP AC Drive
• Maximum sheeting speed  0-125 meters / minute
• Suitable to de-sheet Overlap/Underlap/ Touch to Touch sheets.
• Unwinding station with Mechanical Brake.
• In-built Digital Sheet counter with photo electric sensor.
• Delivery station with adjustable stoppers for variable sizes.
• Stock Weight range  80-450 GSM.
• Maximum Width 800 mm (32")
• Optional : Rotary Peforation System.

(Note : Needs compressed air connection at the time of installation at customer end.)

Suitable for

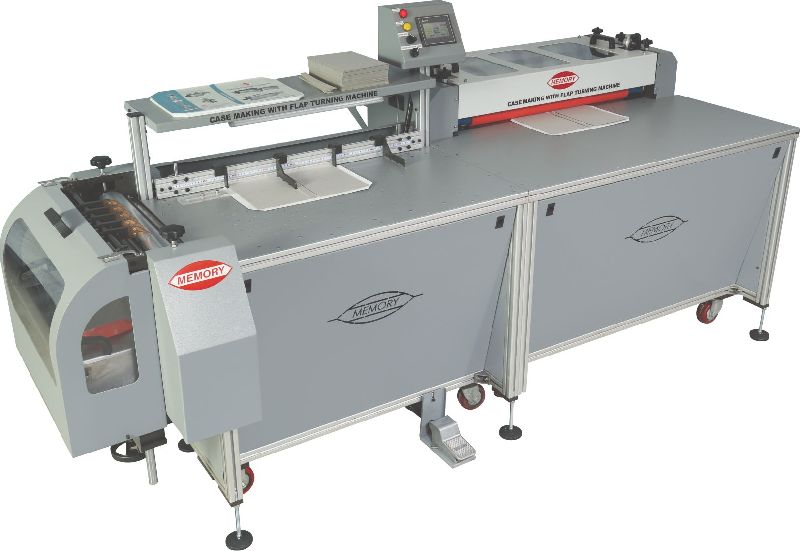

"Memory" Automatic case Maker is design for medium & long run jobs. The Machine is suitable for the production of Diary & Note Book Covers, Book Covers, Box Files, Photo Album Cover, Game & Puzzle Boards, Clip Boards, Ring Files, Table Calendar Stands etc.

Salient Features :

• Automatic Paper feeder with alignment station.  Auto server stopping to facilitate step by step process.
• Cylindrially grinded stainless steel Gluing Rollers ensures even glue application on all type of cover materials.
• Stainelss Steel Water & Glue Tank for corrosion free long life, in - direct Dual heting & glue agitator ensures faster melting of Hot Glue for quick start operation.
• Sturdy Aluminium profile structure with suction hold under the conveyor belt, keep the paper form deviating.
• Hard Board feeder is equipped with srevo controlled actuators for precise positioning, servo controlled pusher assembly.
• Edge detection for accurate placement of hard board on cover material with reference to the edges.
• Specially designed Four Side Turning Unit folds all sides in single pass. Two long sides turn-in using belt turning, Optical  sensor based stopping of cover, pneumatically controlled Notching, third side turning & finally fourth side folding with flap turning ensures flat air free edges of cover.
• Silicon Rollers for guiding & final pressing removes air bubbles from covers after turning- in.
• PLC Touch Screen display & control panel ensures of operation for operator.

Note : Needs Compressed Air Connection at the time of installation at customer end.

Suitable for

Diary & Note Book Covers, Box Files, Photo Album, Game Boards, Clip Boards, Ring Files, Table Calendar Stand etc.

“Memory” Case Maker consists of Manual Gluing Station for Hot Melt & Cold Glue, Board Placement with Pneumatic Control, Turning-in Station and Pressing Station. The Case maker is equipped with in-direct heating for hot melt glue with facility to add water which evaporates  due  to  heat.The cover duly glued is held with high speed suction for placing the boards manually. The adjustment for using small and big boards is simple & operator friendly. The Pressure rollers bind the cover with the board and stacks in the stacker.
