Lamination Machine

We are leaders in the market for providing best range of Automatic Thermal Lamination Machine and Semi Automatic Thermal Lamination Machine

Min. Order (MOQ) 1 Piece
Number Of Flower Lamination Machine
Material Metal And Industrial Components
Specialities Automatic Paper Feeder (Vacuum Pump System Without Oil System), Man-machine Interface (easy & Automatic Operation), Electro Magnetic Heating System, Automatic Adjustment, Air Shaft (with Tension System), Film Cutting & Film Perforation Blade, Pull Guide & Auto
Packaging Type Industrial Packaging
Storage Type Requires Dry And Safe Environment

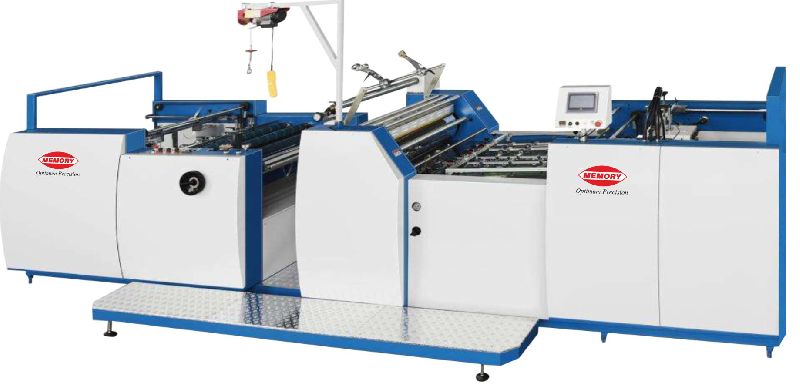

"Memory" Fully Automatic Thermal Lamination Machine is suitable for sheet to sheet lamination.

Sailent Features :

(Note : Needs Compressed Air Connection & Hydraulic Oil at the time of Installation at customer end.)

Details

Download Detail File : Click Here

View Complete Details

Min. Order (MOQ) 1 Piece

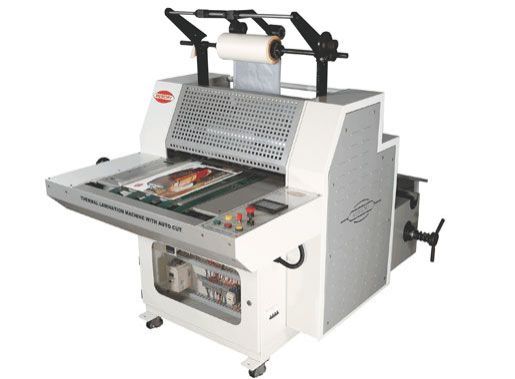

Number Of Flower Thermal Lamination Machine
Feeding Mechanism Manual Feeding Table With Side Gauge
Operator Skill Requirement Eliminates Skilled Operator Requirement
Control System PLC Control With Touch Screen
Temperature Control Digital Temperature Controller
Speed Control Variable Speed AC Drive
Roller Type Large Diameter High Precision Mirror Finished Chrome Roller
Pressure System Hydraulic Pressure
Heating System Built-in Oil Heating
Temperature Regulation Thermostatically Controlled Temperature
Cutting Device Pneumatically Controlled In-Line Divisional Cutting Device (Auto-Cut)

The Machine consists of :

Manual Feeding table with side gauge for faster & easier feeding of long sheets
The unique pneumatically control stopper feeder device eliminates skilled operator requirement.
PLC control with touch screen, digital temperature controller & variable speed AC drive ensures ease of operation for operator.
Large diameter high precisions mirror finished Chrome Roller, with Hydraulic Pressure, with built-in Oil Heating & termostatically Controlled Temperature ensures even heat across the cylinder thus results in high quaility lamination in Thermal Process.
Equipped with pneumatically controlled In- Line divisional cutting device (Auto - Cut) and Reel Rewinding Unit for lower grammage paper< 130 gsm.

Note : Needs Compressed Air connection at the time of installation at customer end.

Details

Technical Specifications	Model 14"	Model 24"	Model 32"
Paper Width Max.	350 mm	610 mm	810 mm
Paper Thickess	100-500 gsm	100-500 gsm	100-500 gsm
Lamination SPeed	upto 20 mtrs / min	upto 20 mtrs / min	utpo 20 mtrs / min
Power	3.5 KW / 220 Volts / 50 Hz	7 KW / 380 Volts / 50 Hz	8 KW / 380 Volts / 50 Hz
Dimensions (W x H x L)	935 x 2300 x 1500 mm	1600 x 2560 x 1820 mm	1850 x 2800 x 1820 mm
Net Weight	200 Kgs	550 Kgs	700 Kgs
Air Pressure	8 Bar (Compressed)	8 Bar (Compressed)	8 Bar (Compressed)
