We offer a complete product range of Thermal Imaging Camera, Cable Tracer and Armature Growler Tester
Description
Thisis a pocket-sized professional thermal imaging camera designed for quick, on-the-go diagnostics in building inspection, electrical maintenance, HVAC, and other industrial applications.
Equipped with an 8060-pixel thermal sensor and FLIRs patented MSX (Multi-Spectral Dynamic Imaging) technology, the C2 delivers exceptional image clarity by combining thermal and visible spectrum data.
Its lightweight, rugged design and intuitive 3-inch touchscreen interface make it ideal for professionals who need reliable thermal imaging in a compact, portable form.
Key Features
Compact and Portable Design Slim, pocket-sized thermal imager for convenient field use.
FLIR MSX Technology Combines visible and infrared images for sharp, detailed thermal visuals.
High Sensitivity Detector Detects temperature differences as small as 0.10C for accurate diagnostics.
Wide Temperature Range Measures from 10C to +150C, suitable for a variety of applications.
3" Touchscreen Interface Intuitive navigation and quick image review on-site.
Fully Radiometric Images Each image stores complete temperature data for post-analysis.
Rugged and Reliable Withstands drops up to 2 meters, ideal for industrial and field environments.
Rechargeable Battery Integrated Li-ion battery for up to 2 hours of use per charge.
USB Connectivity Easy image transfer and charging through standard USB interface.
Automatic Orientation Display adjusts to portrait or landscape mode for ease of use.
Building Inspection: Detect insulation gaps, air leaks, moisture damage, and HVAC performance.
Electrical Maintenance: Identify overheating components, loose connections, and circuit faults.
Plumbing & Leak Detection: Trace pipe leaks and underfloor heating issues.
Mechanical Diagnostics: Monitor equipment temperature and identify friction or bearing failures.
Facility Maintenance: Perform routine thermal audits for energy efficiency and safety.
This is a practical and efficient tool designed for tracing and identifying electrical wires and communication cables without damaging their insulation. The device consists of a tone generator and a receiver probe, which work together to transmit and detect signals through cables.
The instrument supports multiple indication modes including lamp, speaker, or both, providing flexibility depending on the working environment. With its ability to generate single or dual tone signals, the tracker ensures reliable identification of wires in telecom networks, electrical systems, and data cabling installations.
Key FeaturesNon-destructive cable tracing without insulation damage
Includes tone generator and probe receiver
Generates single (900 Hz) and dual tone (9001000 Hz) signals
Multiple signal indication modes: Lamp, Speaker, or both
Helps detect open circuits, short circuits, and broken wires
Compact and lightweight design for field use
Easy operation for technicians and installers
Suitable for electrical, telephone, and network cables
Electrical wiring inspection
Telecommunication cable tracing
Network cable identification
Maintenance and troubleshooting of wiring systems
Installation of telephone and data lines
Cable fault detection in industrial and commercial setups

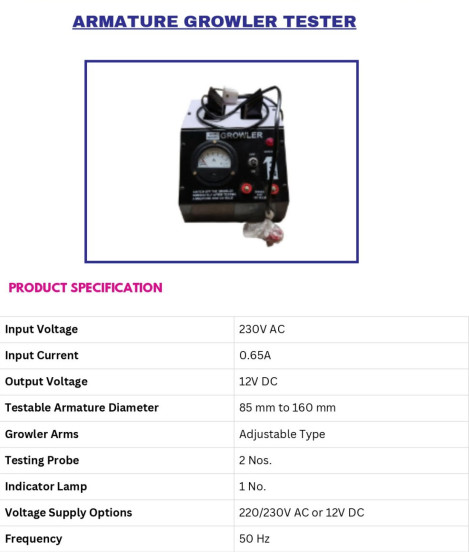

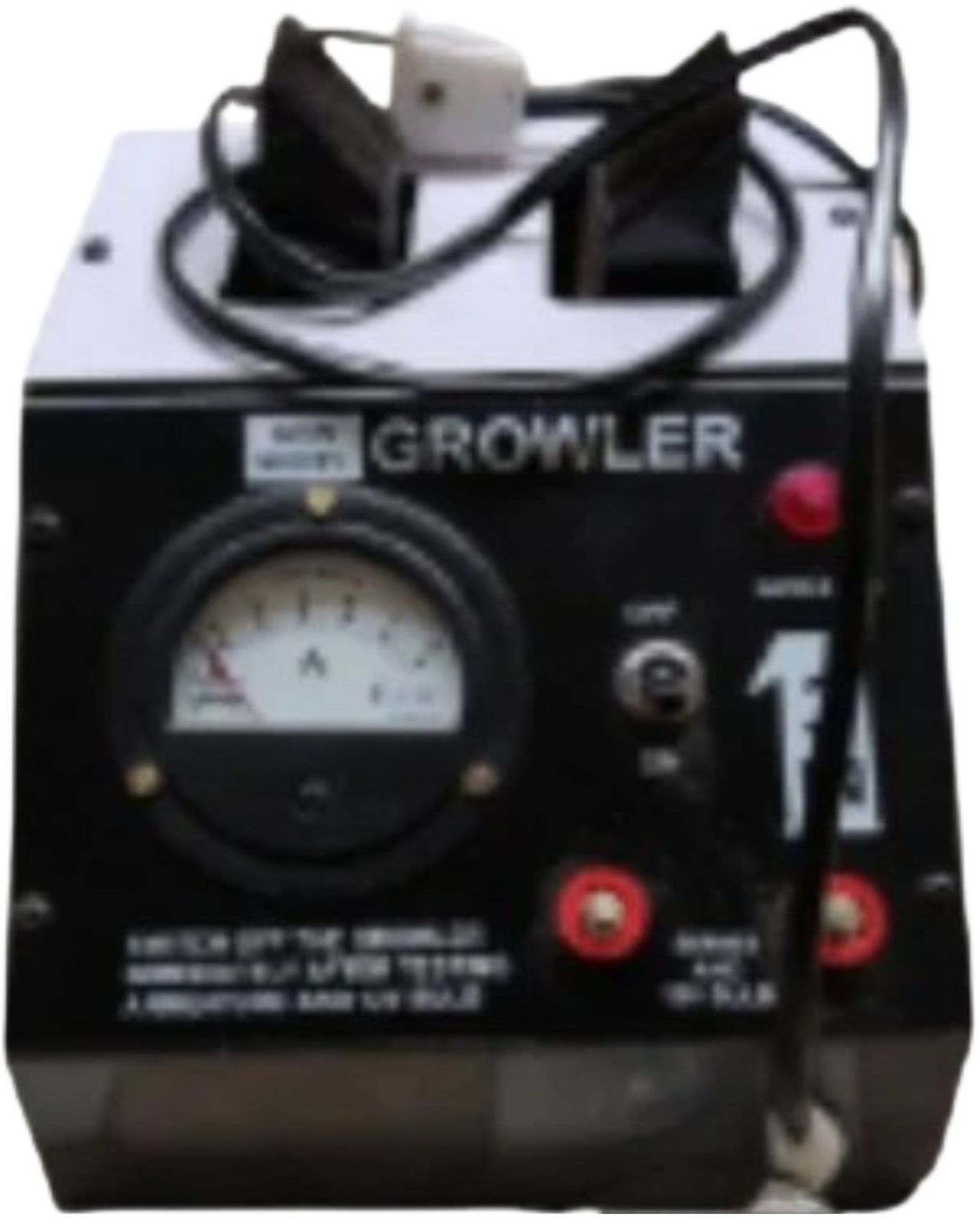

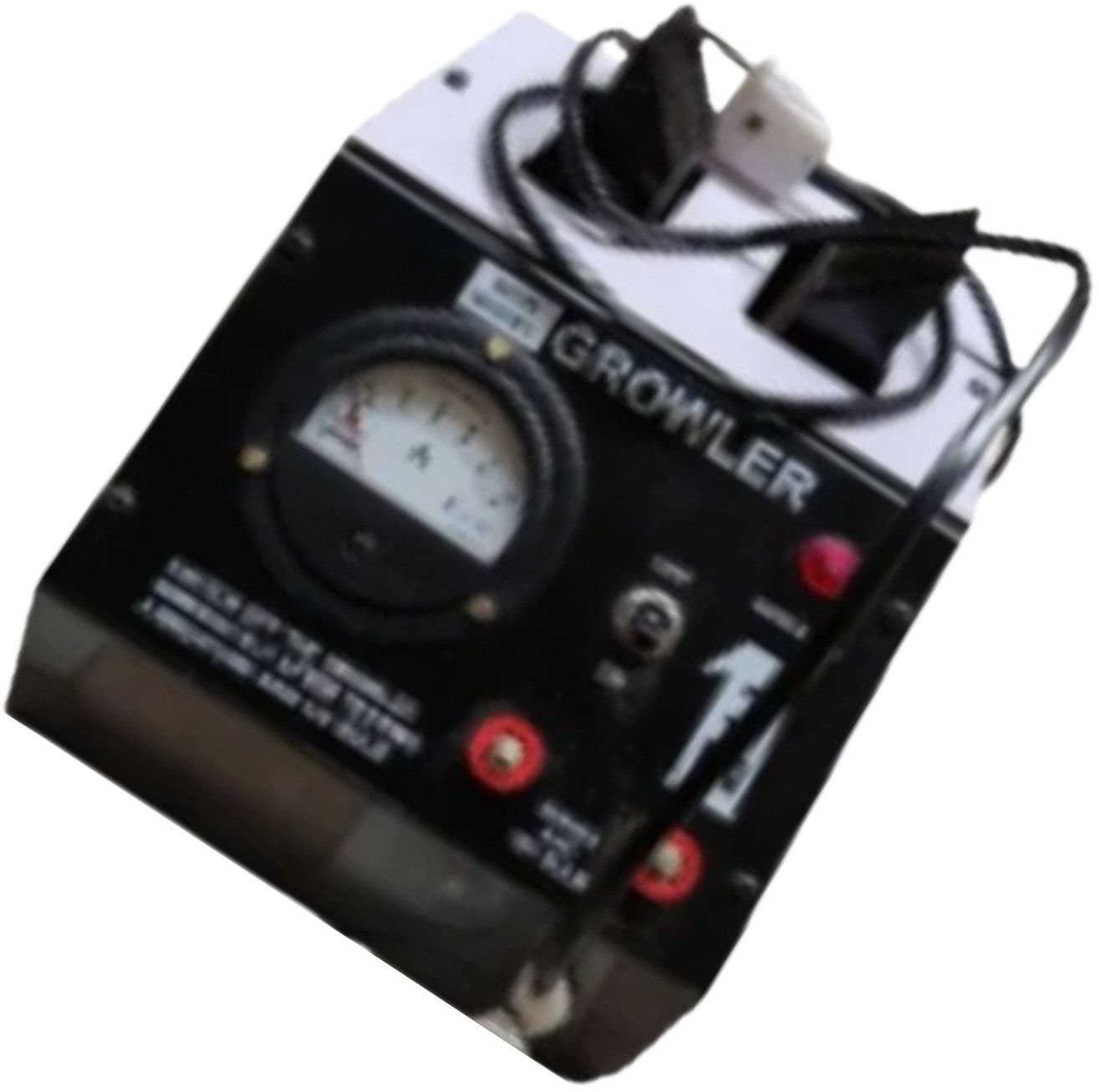

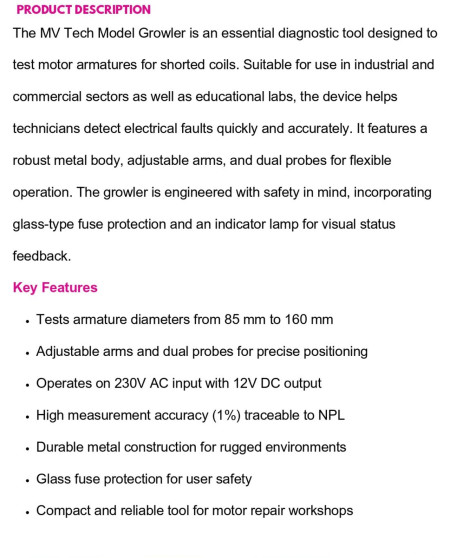

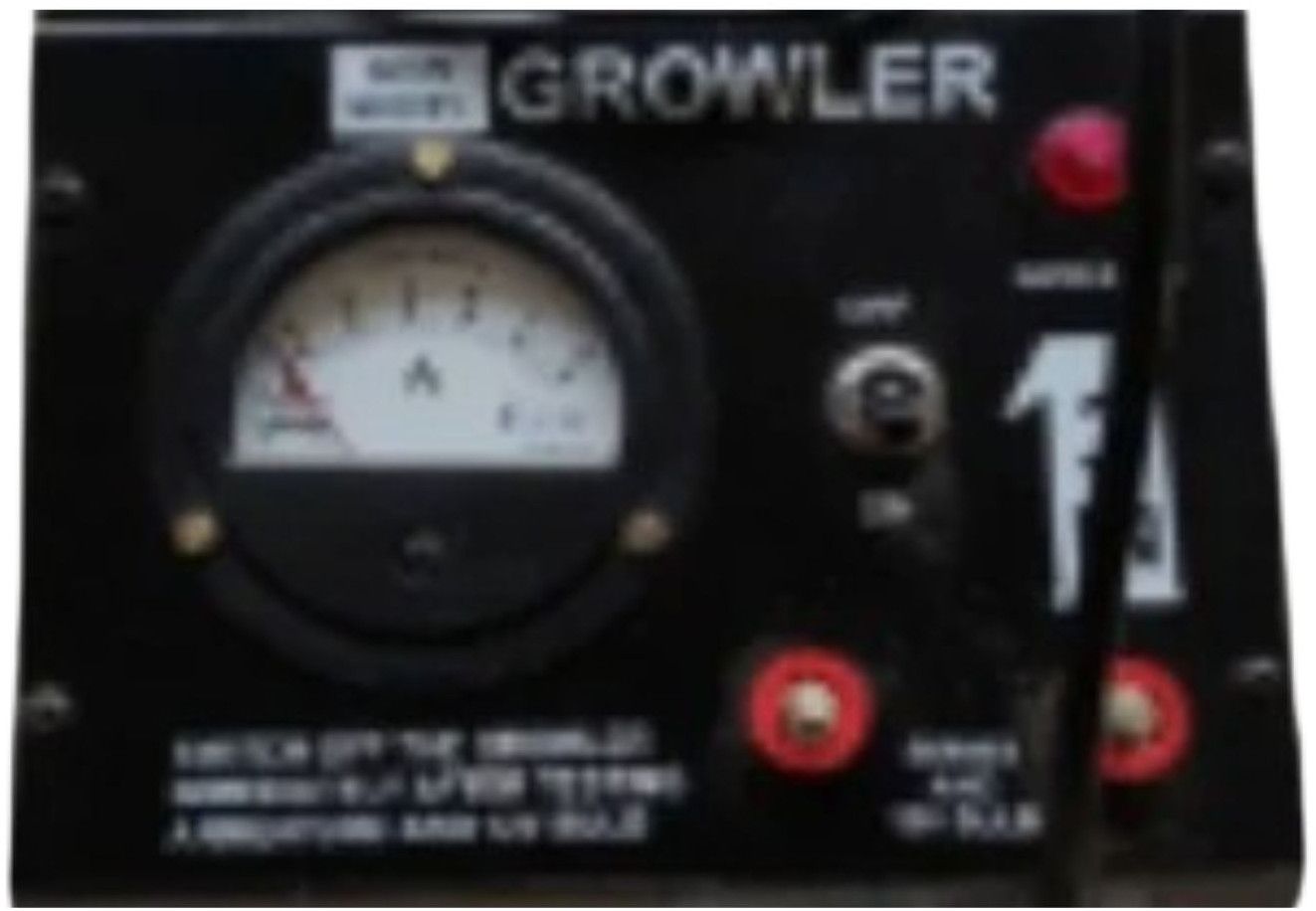

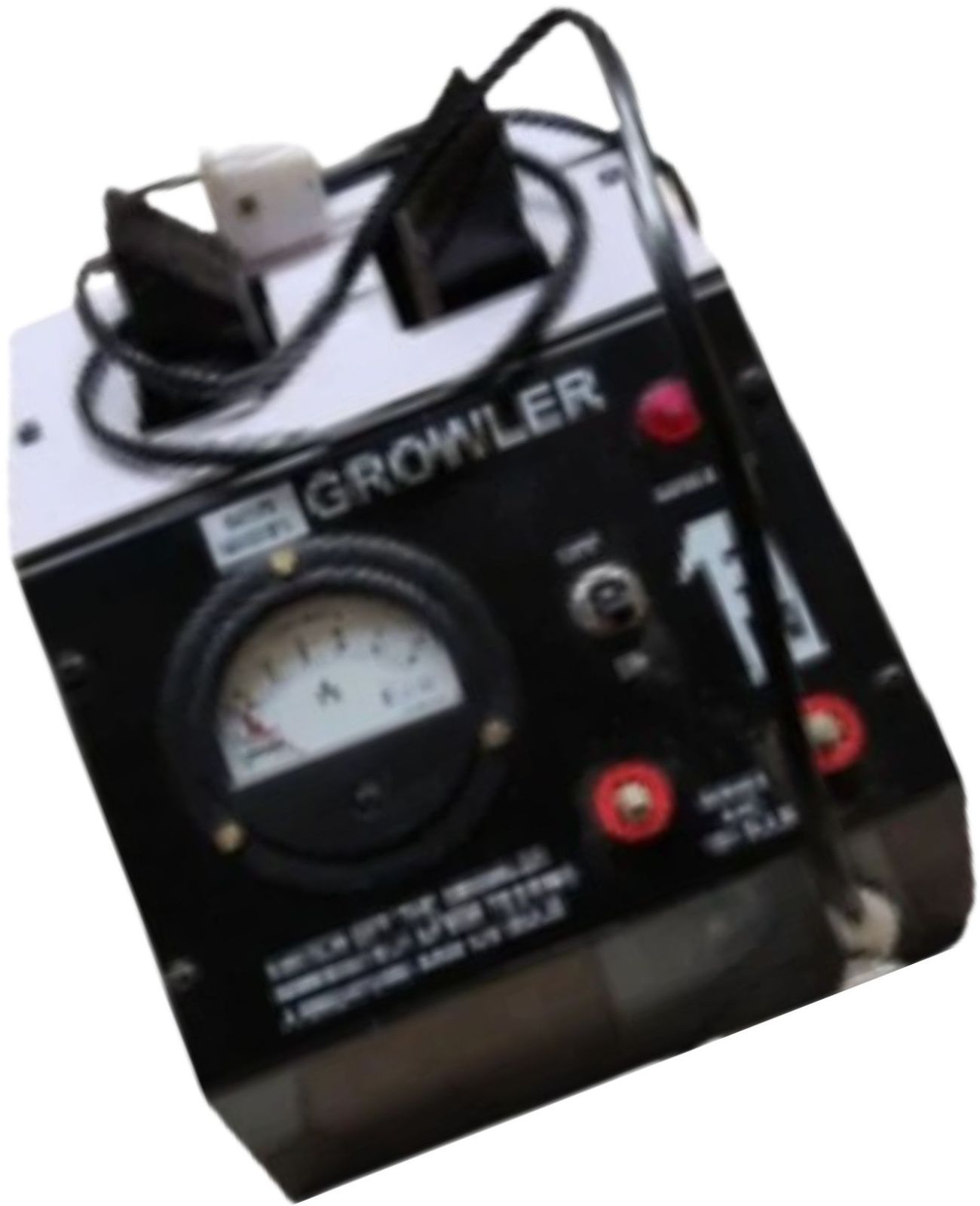

An Armature Growler Tester is an essential electrical testing instrument designed to detect shorted turns, open circuits, and grounds in armature windings. The device consists of a coil wound on an iron core, connected to an alternating current source. When the growler is placed on an armature, it functions as the primary winding of a transformer, while the armature coils act as the secondary winding.
A thin steel strip, known as a feeler, is used to locate faults when moved over a shorted coil, the strip vibrates strongly and emits a growling sound, indicating the presence of a short circuit. This simple yet effective method makes the growler an indispensable diagnostic tool in electrical motor repair and maintenance workshops.
Key FeaturesDetects shorted, open, and grounded coils in armatures
Easy and reliable testing using electromagnetic induction principle
Simple audible and vibrational indication via feeler strip
Operates directly on standard AC mains supply (230V, 50Hz)
Sturdy, portable, and maintenance-free design
Suitable for a wide range of DC and AC motor armatures
Durable construction for long service life
Testing of DC and AC motor armatures
Electrical motor rewinding workshops
Industrial maintenance and repair departments
Quality control in motor manufacturing units
Educational and training laboratories
