Our Products
Our product range contains a wide range of Earth Resistance Tester and V Tech Vt 395 Resistivity Meter
Application

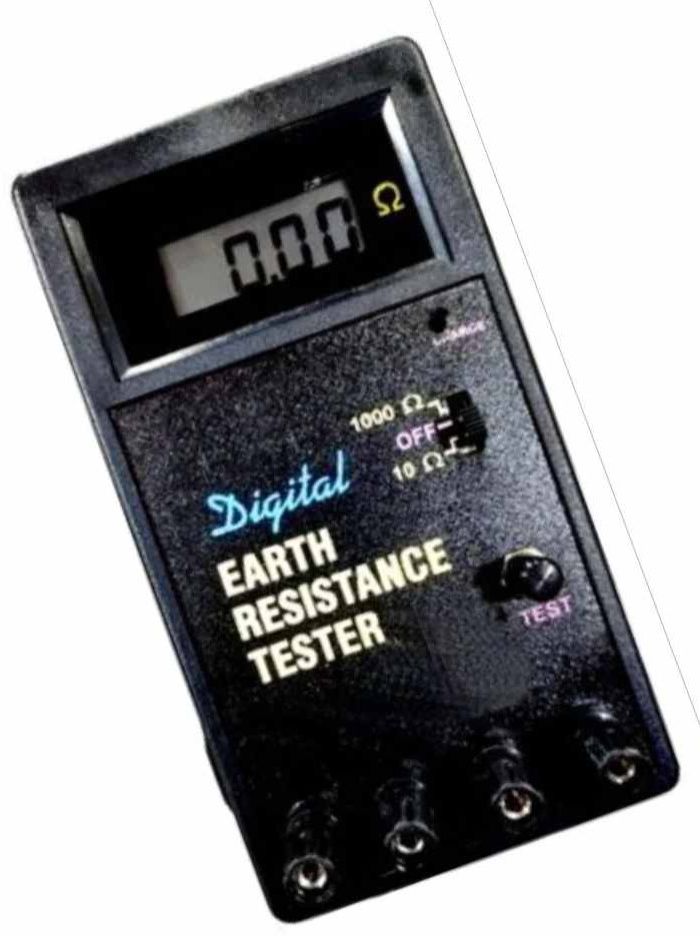

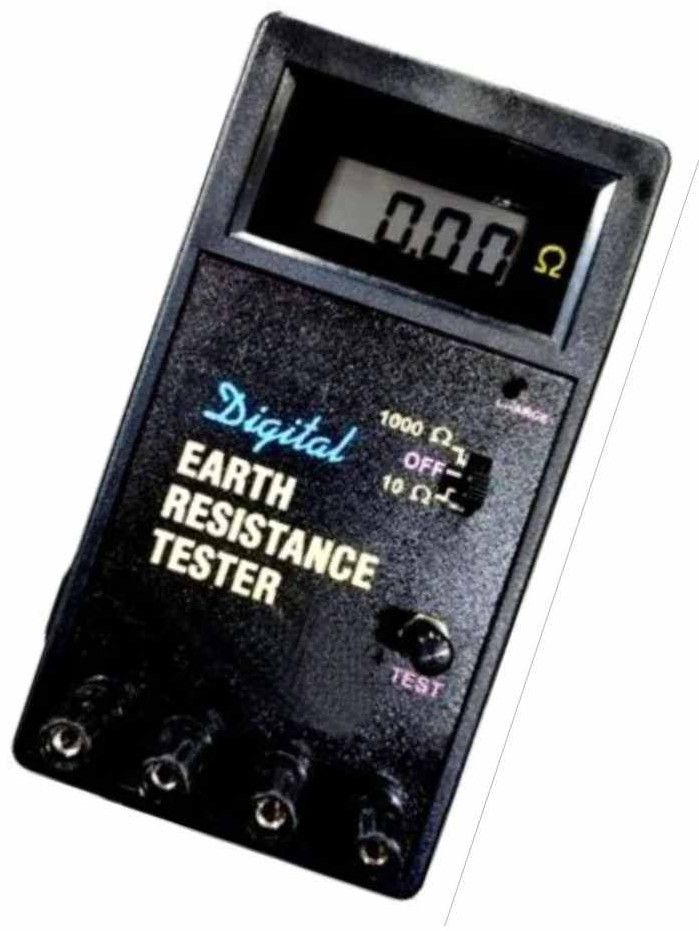

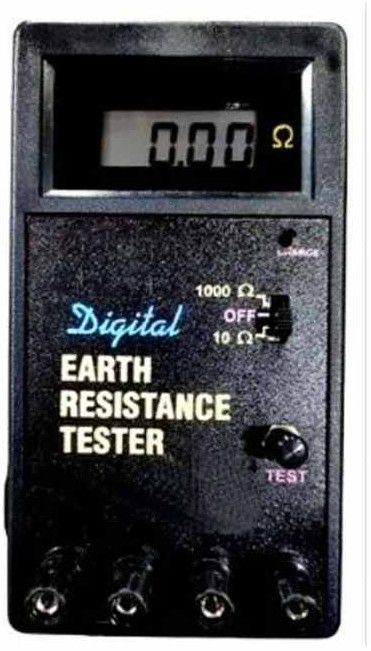

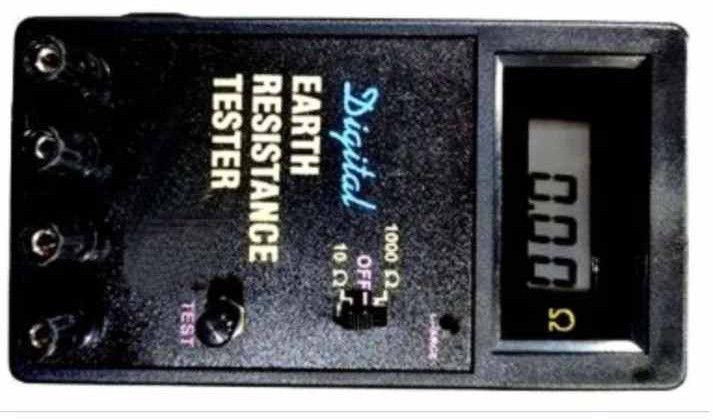

Digital Earth Resistance Tester is designed to measure the resistance if earth used in power circuit, Telecommunications, Railway Electrification, Domestic and Industrial electrical installations. The tester measures directly the resistance of the earth and also measure the ground resistivity. The study, elegant and compact body makes the instrument portable, easy to use, Hand-held instrument.
Silent Features
Rugged ABS body
Easy to use hand held meter
Ni-cd Re- chargeable Cells
Facility as to make bench top type instrument
Confirms to ISS : 9223/1979
Four terminals (To measure earth resistance as well as specic soil resistivity)
Lo-Bat or indication appears on Display indicating that the indicating the the cells (batteries) have gone down, which can be recharged by connecting to 230V, 50 Hz AC mains supply
through charging cord provided with the instrument
Technical Details
Display 3 1/2Digits, LCD 0% to 10% of the range +-3%
Accuracy 10% to 90% of the range +-1.5% 90% to 100% of the range +-3%
Dimensions (in mm) 172 x 98 x 38 (Approx.)
Weight 575 gm (Approx.)
Electrical Speci cation
H. V. Test 2KV AC (rms) for 1 min. between electrical
circuit and containing case
Insulation Resistance
Test More than 25 Megohms at 500 V DC between
electrical circuit & containing case
Accessories
Standard Accessories Carrying Case Charging Cord
Optional Accessories (at extra cost)
Instruction Manual
4 Nos. M. S. Spike (45 cm Length)
1 Nos. Hammer
4 Nos. Cable (50 feet)
1 No. Plier
1 Nos. Screwdriver, all in one canvas bag
Any other combination of ranges can also be made on specification requirement
Guarantee
Guaranteed for 12 (twelve) months against any manufacturing defects
Nunes Instruments , is in the field of Instrumentation Sales Service & Repairs with 40 years of experience. We provide service & repairs to your old high precision instruments and equipment. We provide cost effective service & Repair to any brand, any make instruments with service warranty. W hy not try once?
Instruments of Any Type, Any Make, Analog/Digital, Any Condition Indian or Imported
Laboratory Instrument, Test Equipment,
Scientific, Measuring, Precision Instrument,
Analytical, Bio Medical, Survey, Electrical,
Electronic Instruments , Weather, Metrology.
The vt 395 handheld meter features sophisticated circuitry that produces
Higher accuracy than other pocket-sized meters. This allows for the same
Advantages as megohmmeters, but at an economical price.
Utilizing color-coded zones, the led scale is easy to read and interpret.
Half decade measurements give a closer indication to actual value. A
Specially colored “warning” stage alerts the auditor to material
Approaching the upper end of the dissipative scale, so that it can be
Designated as nearly out of specifcation.
Nunes instruments , is in the field of instrumentation sales service & repairs with 40 years of experience. We provide service & repairs to your old high precision instruments and equipment. We provide cost effective service & repair to any brand, any make instruments with service warranty. W hy not try once?
Instruments of any type, any make, analog/digital, any condition indian or imported
Laboratory instrument, test equipment,
Scientific, measuring, precision instrument,
Analytical, bio medical, survey, electrical,
Electronic instruments , weather, metrology.
