Our Products
Our Complete range of products are Digital Tachometer, Engine Tachometer, Industrial Analogue Tachometer and Laser Tachometer.
The Contact Type Digital Tachometer is a versatile and reliable instrument designed to measure the rotational speed (RPM) of shafts, motors, gears, and other rotating equipment with high precision. It operates on a contact principle, where a sensing wheel or probe is placed directly on the rotating surface, ensuring accurate measurement even under varying load conditions.
The device features a large 5-digit LCD display, which clearly shows RPM readings along with function annunciations. Some models are equipped with an 18 mm high-visibility display, making it suitable for bright or dimly lit environments. Its measurement range of 0.5 to 19, 999 RPM allows it to cover low-speed precision applications as well as high-speed industrial motors.
With dual-resolution capability0.1 RPM for low-speed measurements and 1 RPM for high-speed operationsthis tachometer delivers both accuracy and detail. The device also offers rapid sampling (0.81 second) to quickly capture rotational speed changes. The (0.05% + 1 digit) accuracy ensures that readings are reliable for quality control, maintenance, and testing purposes.
Powered by 3 AA batteries, the tachometer is lightweight and portable, making it convenient for use in workshops, production floors, laboratories, and field operations. The robust casing and compact dimensions (170 70 35 mm) provide durability and ease of handling.
Additional features may include data hold, maximum/minimum RPM memory, and automatic shut-off, depending on the model, further enhancing functionality for industrial and laboratory applications.
Key FeaturesContact type measurement for precise RPM readings
Wide range: 0.519, 999 RPM
High accuracy: (0.05% + 1 digit)
Clear 5-digit LCD display (10 mm or 18 mm)
Fast sampling time: 0.81 second
Lightweight and portable design
Battery-powered for easy field operation
Rotational speed measurement in motors and machinery
Laboratory and workshop testing
Quality control in manufacturing processes
Maintenance and troubleshooting of mechanical equipment
Educational demonstrations in engineering laboratories
The Digital Tachometer is a precision instrument designed to measure the rotational speed of motors, shafts, and other mechanical components with high accuracy. Ideal for laboratory applications, this device operates on an electrical power supply and features a clear digital display for easy reading.
Constructed from durable plastic material, it offers a lightweight yet robust design suitable for regular use. The low battery indication feature ensures uninterrupted operation by alerting the user when power is low.
Key FeaturesAccurate and reliable digital speed measurement
Compact, lightweight, and durable plastic housing
Suitable for laboratory and educational use
Electrical power operation for consistent performance
Low battery indication for convenience
Easy-to-read digital display
Laboratory experiments and testing setups
Industrial speed monitoring
Educational and training institutions
Research and mechanical workshops

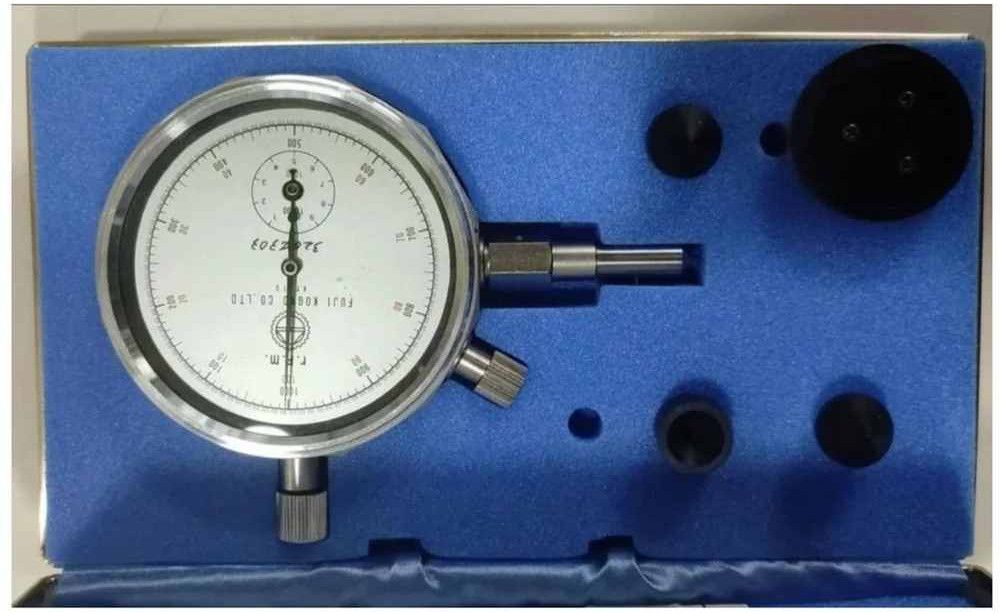

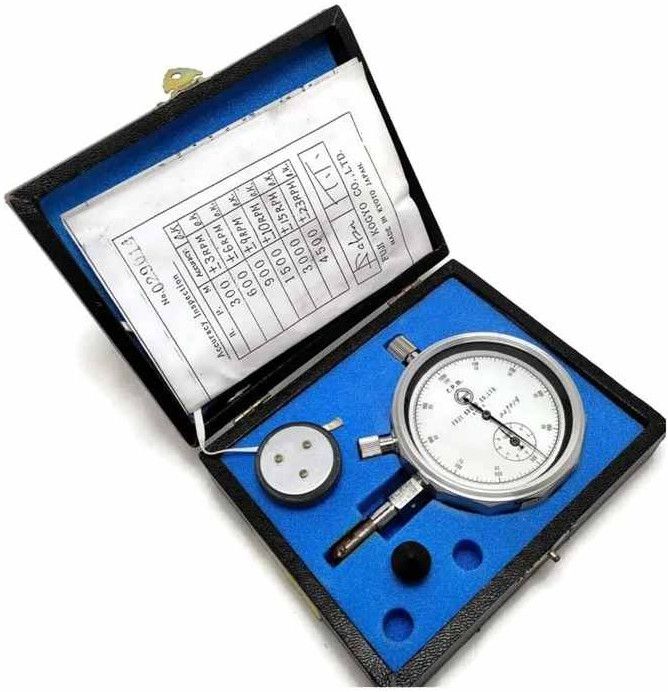

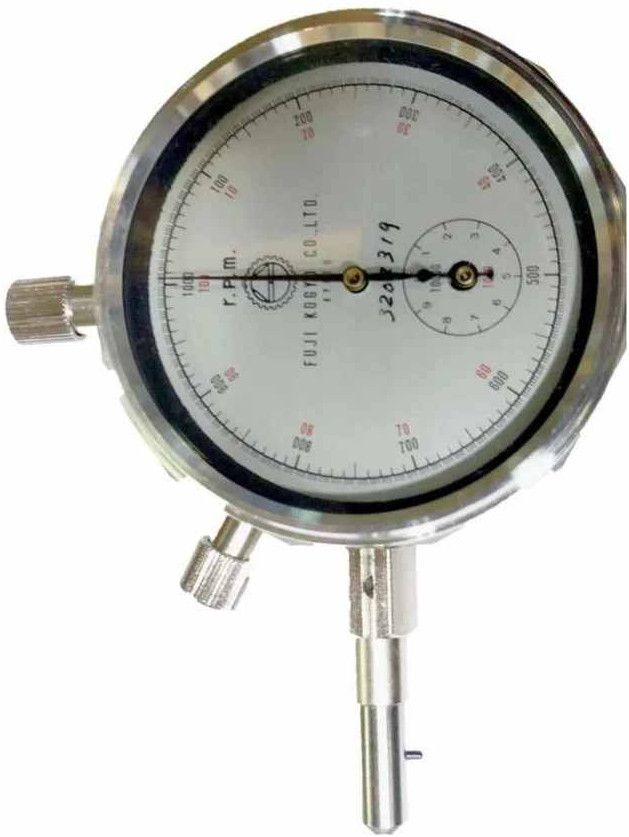

This is an analog tachometer which can measure RPM of a rotating shaft or peripheral speed without requiring any special stopwatch. Easy to use with excellent accuracy.
As soon as a suitable contact tip attached to the meter is pressed lightly to the rotating shaft center, spindle is turned. When the button on the top is pressed and released, the spring is charged, the clock operates, and the pointers revolve, automatically stopping at certain scale points to show RPM of the measured machine.
Concave rubber contact tip, 1 Convex rubber contact tip, 1 Wheel(pulley) for peripheral speed measuring
Nunes Instruments , is in the field of Instrumentation Sales Service & Repairs with 40 years of experience. We provide service & repairs to your old high precision instruments and equipment. We provide cost effective service & Repair to any brand, any make instruments with service warranty. Why not try once?
Instruments of Any Type, Any Make, Analog/Digital, Any Condition Indian or Imported
Laboratory Instrument, Test Equipment,
Scientific, Measuring, Precision Instrument,
Analytical, Bio Medical, Survey, Electrical,
Electronic Instruments , Weather, Metrology.
Mr. Sebastian Francis Nunes (Nunes Instruments)
11A/1, 11A/2, Sundaram Street, Rathinapuri, Coimbatore, Tamil Nadu - 641027
