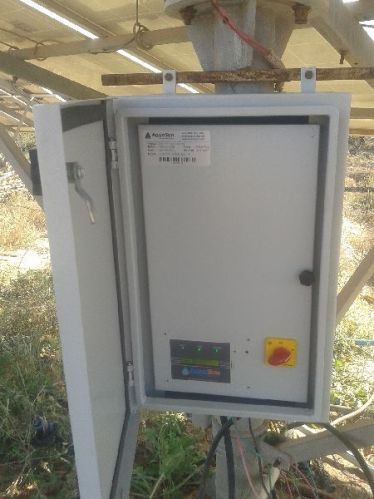

GRID Solar Pump Controller, Feature : Durable, Flameproof, Light Weight, Moisture Proof, Stable Performance

solar pump controller use in solar water pumping system. It used to convert solar panel generated dc electrcity to usefull ac 3phasse or ac 1phase power as per motor pumpset type respectively.

solar pump controller available as per motor horse power(hp). Solar pump controller should use same or greater capacity of the motor pumpset hp. Example: if motor is 5hp then controller should be 5hp or greater then 5hp.

what is mppt?

mppt stands for maximum power point tracking means whatever the solar power available at any given time solar pump controller must be extract them all. As per solar panel volatge and ampere graph there is one point where we can get maximum posssible power from solar plate. So an algoritham to track this point continously is called mppt. Mppt is nothing but a sofware program use to track maximum power point.

our solar pump controller salient feature:

• variable frequency drive for converting solar dc power to 3phasse ac power that used to drive motor pumpset
• dual mode operation: controller has option to run motor pumpset by grid supply also. Controller has inbuilt auto syncronous feature means grid and solar both power can apply at the same time but controller gives priority to solar then grid if solar power is not enough to run motor pumpset at highest speed then it takes remaining power from grid supply.
• inbuilt mppt algoritham that used to extract maximum possible power from solar panel
• lcd display that continously displays dc voltage,motor ampere,solar generated power,frequency and total generated cumulative solar power.
• dc mcb for input protection
• reverse diode for reverse polarity protection.
• ip54 enclouser for water resist and dust resistance.
• suitable heavy duty on/off switch.
• automatic motor on and off as the sunrise and sunset.
• over voltage,under voltage, short circuit, low radiation,motor open phase and motor over load protection.
