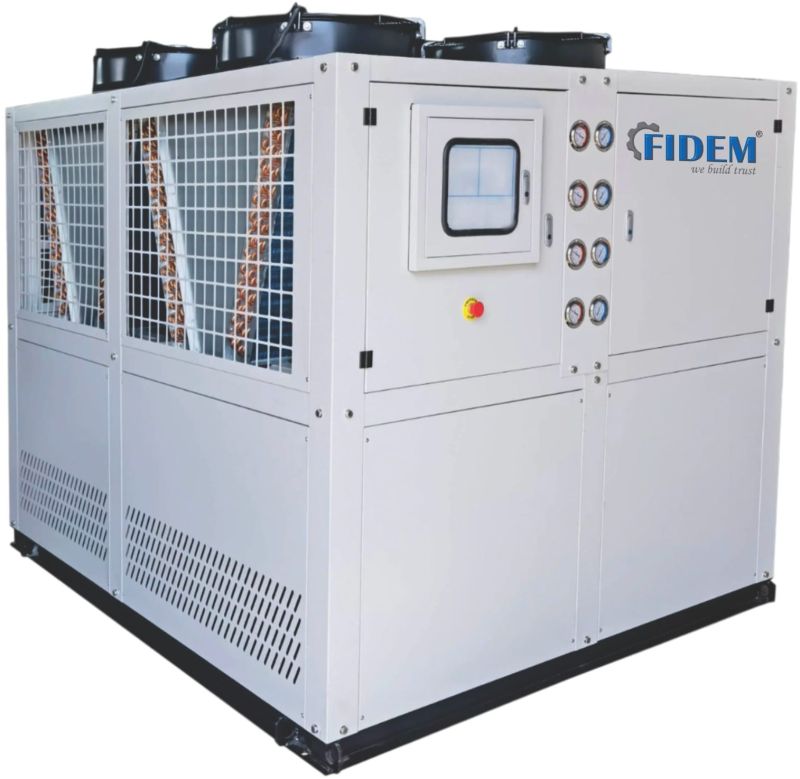

METEL FIDEM 30 TR Air Cooled Scroll Chiller, Color : MULTI STANDARD

Sr.No.

Parameter

Details

1

Model

FMACS-30TR-R22

2

CoolingCapacity

30TR

3

Refrigerationcircuit

2Nos

4

PowerSupply

400V-50Hz

5

Connectingload

44.6 KW/  64 A

6

Refrigerant

R22

7

RefrigerantControl

ThermostaticExpansion

8

EvaporatingSST

-5°C

9

CondensingSDT

48°C

10

AmbientTemp

48°C

11

Working Glycol TemperatureRange

-10TO +10 C

12

ChilledFlowOfWater

18000 LPH @ 5 delta

13

CondenserAir Flow

18000CFM

14

Fantypes

AxiallargeBlade

15

FanQty

4Nos

16

Fan Size

20”

17

FanPower

0.45*4

18

CompressorTypes

Hermetic Scroll

19

CompressorQty

2Nos

20

Compressorpower

38.4 KW/69.36A

21

Startmode

Regular

22

Capacitycontrol

--

23

EvaporatorTypes

Shell and tube

24

Evaporatorpipeconnection

2”

25

EvaporatorShellMOC

Carbone steel

26

Evaporator  tube MOC

Copper grooved

27

Condensertypes

AirCooled(AluminumFinsAndCopper Tube)

28

CondenserPipesize

3/8”

29

CondenserSupporter

Galvanize

30

2 PUMPs

SS-304/3HP /2.2 KW

31

SafetyProtection

Inner Thermostat for compressor motor, unit overloadrelay,highandlowpressureswitch, reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze

protection

32

Electriccontrolpanel

Subzero micro chill Controller,protectionrelay,contactor,MCB,

preventer,timer.
