Astable Multivibrator Using Transistor SE-117

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The trainer has DC +12V/500mA Fixed Power supply, Two NPN Transistors BC548 in CE mode with identical collector load resistor, four resistors & four capacitors bank as a feedback components....

View More Details

Send Enquiry

Company Information

SINCOM Sindhu Electronics & Communications Pvt. Ltd.

Pratap Nagar, Nagpur, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 27AANCS0623H1ZC

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

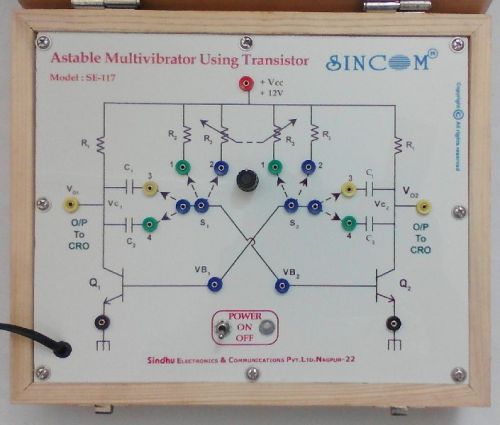

The trainer has DC +12V/500mA Fixed Power supply, Two NPN Transistors BC548 in CE mode with identical collector load resistor, four resistors & four capacitors bank as a feedback components wired as positive feedback amplifier to provide Astable multivibrator O/P at both the collectors with the facility to vary the frequency.
Objectives :

To Study operation of Astable (Free-running) Multivibrator using transistor.
To Observe & Note the waveforms at the base & collector of two transistors.
To Observe & Note Change in Switching Times & Frequency of Oscillation w.r.t. change in RC feedback Components. Compare the Theoretical & Practical values.

Accessories Included : Set of Patch Cords, Operating Manual.
