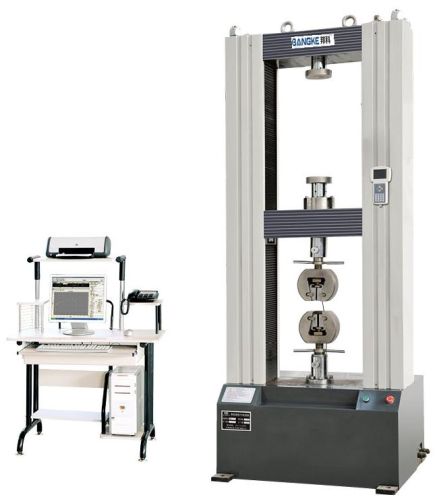

Computer Controlled Electronic Universal Testing Machine

We are offering computer controlled electronic universal testing machine.
1. Model: wdw-50
2. Product name: computer controlled electronic universal testing machine.
3. Introduction and application:
the testing machine is mainly used to do the tensile, compression and bending test to metal, non-metal and composite materials. It adopts precise auto control and data acquisition system. The max bearing force, compression force, tensile strength, compression strength, elongation, deformation can be displayed on the computer after test. And if the computer is connected with printer, the test results can be printed.
If there are special requirements, we can also offer special testing solutions for you.
4. Advantages
1) the equipment is equipped with small controller which can adjust the position of the crossbeam easily and conveniently.
2) the equipment has the functions of limit position protection, over load protection, over current protect, safe and reliable.
3) it can switch from the following curves: load-time, deformation-time, load- deformation and load- displacement.
5. Main technical parameters
max test force 50kn
precision of the equipment 1%
measuring range 500n-50kn
relative error of indicated value 1%
resolution of testing force 1300000
speed range 0.005-500mmmin
distance between the columns 400mm
stroke of crossbeam 950mm
voltage and power 220v, 50hz, 750w
dimension of equipment 755x520x1800mm
weight 600kg
