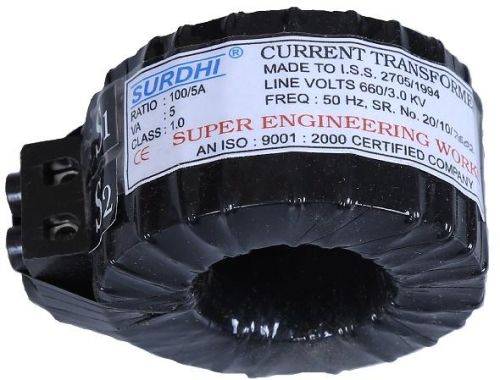

Contact Supplier| Rated Primary Current | 10A to 4000A (Higher Rating Can be provided on demand) |
|---|---|
| Rated Secondary Output | 5A (1A Secondary can be provided on demand) |
| Accuracy | 0.5, 1, 3, 5 |
| Operating Frequency | 50Hz-60Hz |
| System Voltage | 720V Maximum |
| Applicable Standard | IEC 61869-2 |
| Insulation Test Voltage | 3KV AC For 1 Min |
| Ambient Temp | 0.C-50ºC |
| Humidity | <95% RH (Non-condensing) |
| Current Rating | ID | OD | R.Burden | Accuracy Clay |
|---|---|---|---|---|
| 10, 20, 30/5 | 33 | 77 | 5VA | 0.5/1.0 |
| 40-200/5 | 33 | 77 | 5VA | 0.5/1.0 |
| 250/5 | 33 | 77 | 10VA | 0.5/1.0 |
| 300/5 | 55 | 93 | 10VA | 0.5/1.0 |
| 400-600/5 | 55 | 93 | 15VA | 0.5/1.0 |
| 700-1200/5 | 102 | 139 | 15VA | 0.5/1.0 |
| 1600-2000/5 | 117 | 162 | 15VA | 0.5/1.0 |
| 2500 | 130 | 165 | 15VA | 0.5/1.0 |
| 3000 & Above | Special ID/OD as per customers requirement | Special ID/OD as per customers requirement | 15VA | 0.5/1.0 |
