Digital Voltmeter

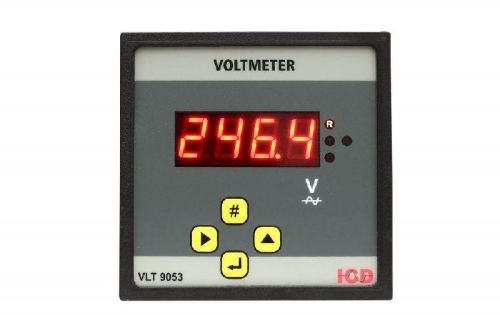

digital voltmeter vlt 9053 new approach to develop panel metering in sub stations, distribution panels , genset panels, pumps, motors, compressors and individual equipments, control panels and test benches and much more.

 benefits

• microcontroller based design
• true rms measurement
• 3 voltage readings in a single meter
• single meter for 3 phase star & delta (lt/ ht) application
• pt primary voltage & secondary voltage (415v/110v) selection through keypad
• 4 digit 0.5" 7 segment red led
• displays phase & line voltages
• r, y, b, ry, yb, br voltage display selection by push button
• phase indication by leds
• accuracy +/-1% on reading
• accuracy ± 0.5% on reading(optional)
• voltage resolution (0.01kv for ht & 1v for lt)
• auxiliary supply 90-270v ac/dc
• 96(h) x 96(w) x 45(d) mm
• poly carbonate enclosure
• panel mounting
