H05Z1 K Type Cable, Brand Name : Johnson

NON CORROSIVE NON TOXIC THERMOPLASTIC LSZH HEAT RESISTANT INSULATED NON SHEATHED

Applications :

• LSZH Wiring For Appliances with maximum operating temperature of 70°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Insulation Color Code :

• Black
• Blue
• Brown
• Gray
• Orange
• Pink
• Red
• Violet
• White
• Green
• Green/Yellow
• Yellow
• Or as per customer requirement

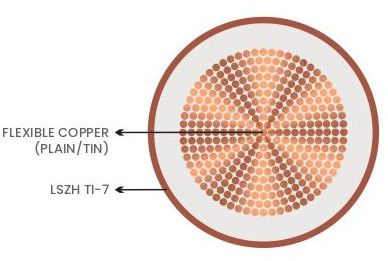

Cable Construction :

• Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
• Insulation : Thermoplastic LSZH type TI 7 to EN 50363-7

Features :

• Design for Harmonized Acc. to European Standards
• Thermoplastic LSZH type TI 7 to EN 50363-7
• Special LSZH Heat Resistance Thermoplastic Insulation
• Very good Insulation Resistance property
• High current carrying capacity
• LSZH and ozone Resistance Insulation Material
• Very good fire retardant property
• Non Corrosive Non Toxic LSZH Heat Resistant Insulation
• Long Flex Life
• Excellent Mechanical & Electrical Property
• Excellent Resistance to Moisture, Abrasion, Grace, Oil
• Flame Retardant

Packing Details :

• 100 Meter
• 200 Meter
• 500 Meter
• 1000 Meter
• 2000 Meter
• or As per Customer Requiremen
