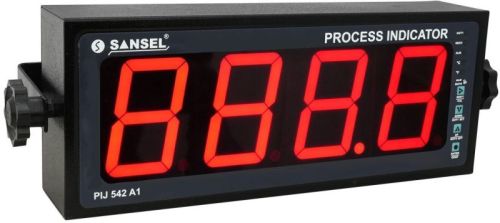

SANSEL UPVC Jumbo Process Indicator 4/5inch, Standard For Industrial

In the world of modern industrial and manufacturing environments, efficiency, productivity and safety are paramount. To achieve optimal performance, Operators and supervisors rely on advanced tools and technologies that provide real-time insights into the status of critical processes parameter to view from a long distance. One such tool is the jumbo display indicator, This series of big display indicators has a display height of 2’’,4’’,8’’ and 12’’sizes, which are visible distance from 50 feet, 100 feet, 200 feet and 400 feet.

These Large size Display Indicator serves as a beacon of information, offering clear and immediate visibility into the ongoing wide range of process parameter applications such as Temperature, Humidity, Pressure, Flow, Level, pH, TDS, Conductivity, Production counting, RPM, Timing, Power, Voltage, Current, Frequency etc.,. these large displays play a pivotal role in keeping operations running smoothly.

We offer customization options to tailor our big display indicators to your specific needs, applications are multiple indicators with different parameters in one panel.

Specifications:

• Model: PIJ – 542 A1
• Display: 2” or 4” or 8” 4 Digit 7 segment RED LED*
• Accuracy: ± 0.1 % of FS
• Analog inputs: 4 – 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 – 400 Ω (H & L Limit Programmable)
• Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
• Analog display range: -1999 to 9999 (H & L Limit programmable)
• Temperature range (H & L Limit programmable):

RTD - PT 100 (-199.9 to 850.0°C / -199.9 to 999.9 °F)

TC - J (- 200 to 1200°C / -328 to 2192°F)

TC - K (- 200 to 1372°C / -327 to 2501°F)

TC - R (- 40 to 1768°C / -40 to 3214°F)

TC - S (- 40 to 1768°C / -40 to 3214°F)

TC - T (- 200 to 400°C / -328 to 752°F)

TC - B (300 to 1820°C / 572 to 3308°F)

TC - N (-200 to 1300°C / -327 to 2372°F)

TC - E ( -200 to 999.9°C / -327 to 1832°F)

• Unit selection: °C / °F ( for RTD & TC inputs)
• Analog input display resolution: 0.001 / 0.01 / 0.1 / 1 (Selectable)
• Temperature resolution: 0.1 / 1 °C / °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C Factory presetable)
• Filter constant: 1 – 100% (Adjustable)
• Display hold option: Peak, hold & average (any one selectable)
• Hold delay: 0 - 999 sec (selectable)
• Relay Output (optional): 2 Relay (5A rated) with 6 Relay Status Selection, Adjustable, Hysteresis, Cyclic Delay
• Temperature drift: ≤ 0.1% FS/°C (typical 50 ppm)
• Re Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
• PC communication (optional): RS 485 (2 wire) MODBUS RTU protocol
• PC interface software: Optional
• Sensor Supply (external): 24 V DC ±10% @ 100 mA
• Power supply: 230 V AC / 50 Hz
• Overall dimension: 428 x 171 x 85 (L x H x D) mm (Approx.)
• Housing : MS Powder coating
• Mounting: Wall or sealing with 360 º rotatable clamp
• Operating environment: 0 - 50°C / 5 to 95% RH Non condensing
• Weight (Approx.): 4.5 kg
