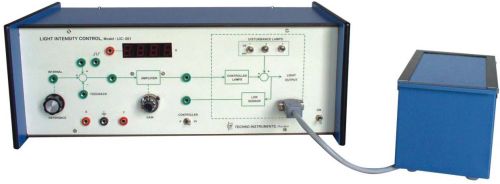

We offer Light Intensity Control System useful for control labs. The light intensity control system is designed to bring out the basic features of closed loop systems in the form of a laboratory experiment. The light panel comprises of a number of filament lamps which get power from amplifier. Average intensity of the panel is sensed by a light sensor and a suitable voltage level is produced. Error detector, reference input and error amplifier are of standard configurations found in any linear control system. In addition to the above, the light panel also contains a few uncontrolled lamps which may be used as disturbance source. Further a square wave signal is available for dynamic response studies.
Highlights
Feedback control of light intensity
Study of inherent non-linearties-sensor, lamps
PI control
Dynamic response displays
>>Experiments
Characterization of light panel and light sensor blocks
Study of a practical single loop feedback control system which includes:
• Disturbance study
• Error monitoring
Performance improvement through P-I control
Evaluation of dynamic behavior
>>Features and Specifications
Built-in 3½ digit DVM
Built-in IC regulated power supplies
Literature and patch cords included
Seven lamps 6V/300mA
5Hz square wave and triangular wave for dynamic response study
The experiment is complete in all respect.
