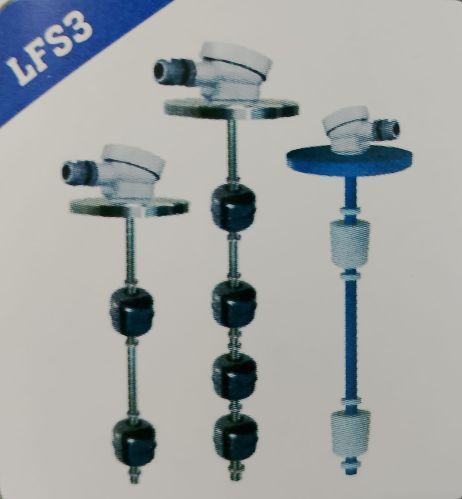

LFIA Stealness Steal Magnetic Float Level Switch

Magnetic Float Level Switch units are housed tightly in SS or PP, and the permanent magnet is sealed into the middle of the specified float ball. The float up and down at the specified po-sition by graduating rings.

When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close cir-cuit. Sensors are available in SS/PP moc & made in different lengths for single or multiple levels sensing of liquids. SS are used in food grade and high temperature application.

Application : Diesel, generator facilities, petrochemical, Condensate, acids, chemical, beverages, milk, juices, oil, cooling tower, etc.

Features :

• Multiple point level switches in single level switch.
• Employing to power actuate the reed switch requires no power
• These float level switches are more cost effective than other level switches in terms of multiple points.
• The housing protection is at least IP65.
• The reed switch and lead wire are isolated with liquids absolutely.
• Magnetic Float Level Switch units are housed tightly in SS or PP, and the permanent magnet is sealed into the middle of the specified float ball. The float up and down at the specified po-sition by graduating rings.
  When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close cir-cuit. Sensors are available in SS/PP moc & made in different lengths for single or multiple levels sensing of liquids. SS are used in food grade and high temperature application.
  Features:

  • Multiple point level switches in single level switch
  • Employing to power actuate the reed switch requires no power
  • These float level switches are more cost effective than other level switches in terms of multiple points
  • The housing protection is at least 1P65
  • The reed switch and lead wire are isolated with liquids absolutely.

  Applications:

  • Diesel, Generator facilities, Petrochemical, Condensate, acids, chemical, beverages, milk, juices, oil, cooling tower etc
