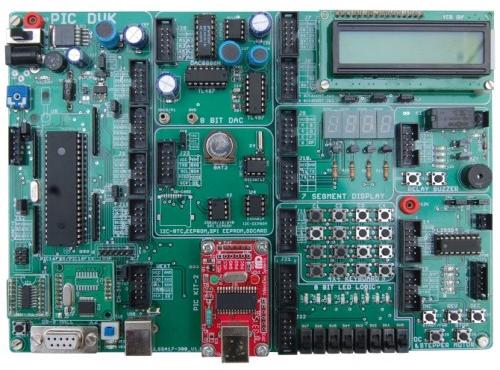

The LGS PIC-DVK allows you to have a well known and documented hardware both under electronic and under software point of view. This kit/ Development board can be use for simple experiments, to advance experiments
Features:
Experimental board for Microchip’s PIC 16 & 18 Family of microcontrollers supplied with PIC18F4520
(Any 40pin PIC Microcontroller is compatible)
40 pin ZIF socket for Microcontroller
ICSP Programming (ISP) facility through on board PIC
PIC KIT3/PIC KIT2 Provision through USB port prog.
Crystal frequency: 16Mhz
10pin x 5 polarized FRC header with Gnd & VCC
On-board RS232 Serial Interface x 1 nos. terminated in a 9-Pin ‘DB9’ male connector
10pin UEXT connector for easy I2C, SPI and serial device interface
On Board L293 Stepper Driver & DC motor Driver (Stepper Motor and DC motor have to buy separately)
4x4 Keyboard, 16x2 LCD interface
I2C EEPROM (24Cxx) – External Memory for Users
Onboard PWM Output for user interface
SPI EEPROM 25Cxxx and RTC DS1307
On board Relay, Buzzer & LED’s (5nos.)
On board 8 LED for study of IO interface
Onboard ADC Output to check actual value of the
ADC with soft potentiometer
On board DAC Interface
Onboard Reset Circuit to reset the MCU with reset monitoring
16x2 LCD display with 4 bit & 8 bit selection
4 digit 7 segment display
32Khz Crystal for on chip RTC with Battery
Dual power option ie through USB or 9-12V AC-DC adaptor
Optional Interfacing study cards available:
Blue Tooth, IR interface, Zigbee etc.
Kit Includes
LGS PIC DVK Development board with Boot Loader programming onboard
Power Adaptor
10 Pin FRC X 4 nos.
Serial & USB cable
