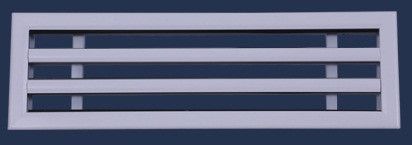

Extruded Aluminium Plain Type Linear Slot Diffuser, Color : Silver

Frame and deflection blades are made of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Air distribution can be changed vertically or horizontally by means of deflection blades without changing the air flow rate. These blades can be fully adjusted from face opening. Air flow rate can be adjusted by fixing hit and miss damper at the rear side of the diffuser. Damper blades are adjusted from the face opening. Dampers are designed in a unique way that it can be used as an equalizing grid. Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance. Positive alignment of adjacent sections can be made by using alignment strips. Suitable for installation for ceiling and sills. Standard slot opening width are 16mm, 20mm, 25mm and non-standard sizes available as option. Number of slots available: 1, 2, 3, 4, 5, 6, 7, 8. Length: Up to 3.6 m available in a single piece. Optional accessories: Plenum box either un-lined, internally insulated or externally insulated.
