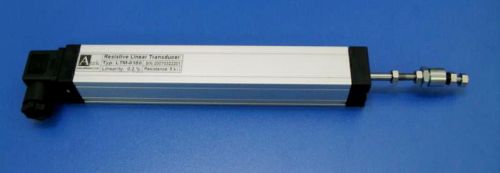

Potentiometric Linear Transducer

Sold By : Accrete Automation India Private Limited

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We have created repute for ourselves as Potentiometric Linear Transducer Manufacturer, Exporter and Supplier in Delhi (India). The LTM that we make available is a high precision potentiometric industrial linear motion transducer with a long lasting conductive track suitable for absolute position measuring in control and Measurement applications. Potentiometric Linear Transducer is designed for the direct, absolute measurement of displacement or length in control regulation and measuring applications. Potentiometric Linear Transducer has high resolution (0.01 mm) combined with a stroke length of up to 1000 mm permitting the accurate measurement of linear displacement. Rack and pinions or similar devices are not required because the design of the transducers is such that they may be built directly into the mechanical system.

Highlights

LTM Potentiometric Linear Transducers
Stroke up to 1000 mm
Infinite Resolution
Very Long Life up to 50 million movements
Protection Class IP 65
High Operating Speed 5 m/s
High Independent linearity 0,1 %
The grooves provide an excellent alternative to the usual system of fastening with brackets.

Applications : LTM series can be used in a wide range of applications in mechanical and vehicle engineering industries as well as in automation and robotics technologies, combining remarkable robustness with high accuracy. LTM series Potentiometric Linear Transducers are mainly used in :

Press brake Machines
Horizontal Band Saw Machines
Transfer Machines
Hydraulic Machines
Sheet Metal working machines
Bending presses
Plastic & Metal Injection Machines
Textile Machines
Robotics/materials handling
Profile cutting Machines
CNC Pipe Twisting Machines

Mechanical Data

Repeatability %	< 0.01
Temperature Range	-30...+100 ^oC
Operating Speed	5 m/s max.
Mechanical Life	50 million Movements
Protection Class	IP 65
Vibration	10 g
Shock	40 g

Electrical Data

Maximum Input Voltage	42V
Maximum current	1 mA
Max. Wiper Current	10mA
Recommended wiper current	<1 A
Resistance ± 20%	5 or 10 Kohm
Repeatability %	< 0.05
Resolution	Infinite
Load Resistance	≥ 1 Mohm
