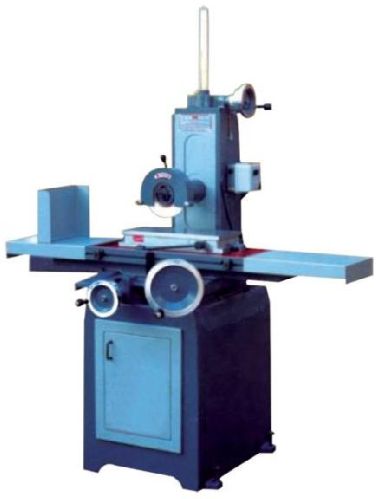

Precision Surface Grinder

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Vibration-free and Noiseless Working. Precised Engineering and Simple Easily Accessible Controls Mean time saving and accerate Operation. The Grinding accurancy on the machine guranteed and contols of the machine are withing the easy reach of the operator Electricals Diamond Dresser Tool kit, Grinding wheel, auto lubrication system

View More Details

Send Enquiry

Company Information

India International Marketing Co.

Mayapuri, Delhi

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AAFFI7020K1ZE

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Working Surface of the table	250 x 500 mm	250 x 500 mm	300 x 600 mm
Maximum height from Table to Grinding Wheel	275 mm	275 mm	275 mm
Vertical Feed Graduation	0.01 mm	0.01 mm	0.01 mm
Cross Feed Graduation	0.05 mm	.0.05 mm	0.05 mm
Spindle Speed	2800 R.P.M.	2800 R.P.M.	2800 R.P.M.
Size of Grinding Wheel	200 x 20 x 31.75 mm	200 x 20 x 31.75 mm	200 x 20 x 31.75 mm
Magnetic Chuck	200 x 450 mm	200 x 500 mm	200 x 500 mm
Electric Motor	1HP, 2800RPM	1.5HP, 2800RPM	2HP, 2800RPM
Diamond Dresser.	0.5 CR	0.5 CR	0.5 CR
Wheel Balancing Stand	ONE	ONE	ONE
Net Weight (approx)	800-900kg	900-1000kg	1000-1100kg
