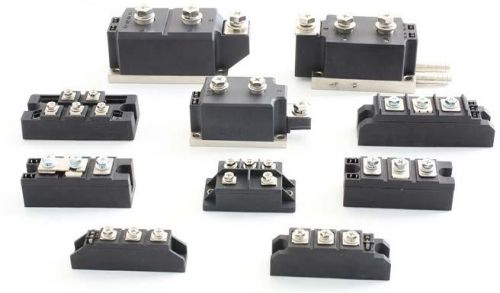

Igbt modules, Shape : Rectengular

EEC is an established name in supplying of all types of power semiconductor devices. We offer a broad range of IGBTs, Thyristor modules diode modules to suit your application.
IGBT Modules
An indispensable device for the application of inverters to all industrial equipment, the IGBT (Insulated Gate Bipolar Transistor) module has driven the trend towards high currents and high voltage for the last 20 years since it was developed and produced. The module has evolved from the traditional flat planar chip structure towards the trench gate structure.
Main Applications :

• General purpose inverters
• AC servo
• CVCF
• Solar power generation
• Wind power generation
• Equipment for induction heating
• CT/MRI

We offer general rectifying diode modules that rectify commercial frequencies and high frequency diode modules for freewheel diodes in inverter circuits and for high-speed switching on a surge voltage absorbing circuit (snubber).
The main switching devices of an inverter have changed from bipolar transistors to high-speed MOS gate devices, such as IGBT. The requirements of radio noise regulations have also increased the importance of not just reverse recovery characteristics, but also software recovery characteristics.
Features :

• Lineup includes modules with various types of connections
• The general rectifying diode modules are 400-2,000V/20-500V
• Lineup includes the high-speed switching diode modules of 250-1,200V/20-450A (compatible with transistor modules and IGBT/IPM)
• Complies with the RoHS directive
• Some products available for snubber circuit

Main Applications :

• Inverter products
• AC motor power supply
• AC power supply for batteries
• AC power supply for control boards
• General AC power supply

Our Power Modules Portfolio Includes World Class Brands like:

• Infineon
• Semikron
• IXYS
• Mitsubishi
• Fuji
