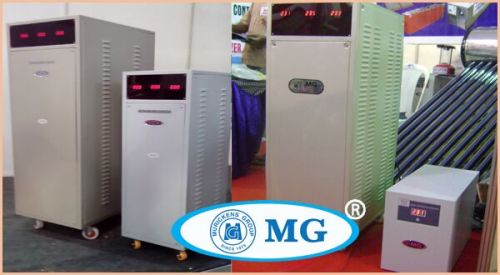

Servo stabilizer

Listing ID #3900585

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

It is a stabilizer which constantly monitors the output voltage through controlling the variations in the input voltage by moving of a motor. This motor in turn selects the proper output voltage on....
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

It is a stabilizer which constantly monitors the output voltage through controlling the variations in the input voltage by moving of a motor. This motor in turn selects the proper output voltage on the variable transformer. It gives reasonably good voltage regulation and is all right where  voltage fluctuations are not considerable. This is probably the cheapest power-conditioning product available. It is essential to save our sophisticated electrical/electronic equipments. Wide range (120-270V) for single phase working range from 90V and the second mode equipments to protect from voltage spikes. There are two models of Muricken MG Servo Controlled Voltage Stabilizers available. The first model is (160-270) Standard (280-450V).and the second is Wide range (220-450V) for three phase working range from 180V Single phase and three phase connections.

MG SERVO STABILIZER FEATURES

â–º It act as a guard for every electronics equipments . â–º Quick, steady and accurate correction of voltage output 230V for Single phase and 400V for Three phase. â–º ISO 9001- 2015 quality certifications . â–º Despite load current variations - Balanced output voltage. â–º Irrespective of input imbalance. â–º Fully automatic. â–º Reduces heating and minimizes losses. â–º Over Load Protection. â–º Constant temperature maintained by oil or air cooling system. â–º Boost-up transformer based model. â–º Digital display for input and out put volt & irregularities. â–º By using servo stabilizer we can improve over all production quantity and quality. â–º In medical field, it is must for getting accurate lab test results. â–º Overall energy saving - above 98% efficiency Increased life of your equipment. â–º Compact in size, etc. â–º Custom made servo voltage stabilizers available as per customers requirement. â–º Some of the extra adoptable features are Bypass Mechanism ( change over switch ) Inbuilt Isolation Transformer, Time Delay, Wheel mounting.


Sl.No. Parameter Single Phase Unit Three Phase Unit
1 Rating 1 KVA to 15 KVA 6 KVA to 100 KVA
2 Input Voltage Range a) 160V -270V (Standard) 300-450V(Standard)
b)120V-270V(wide-range) 220V-450V(wide-range)
3 Nominal Output Voltage 230V 400V
4 Output Voltage Accuracy ± 1% ± 1%
5 Line Frequency Variation 47Hz-53Hz . 47Hz-53Hz .
6 Control Digital/Analogue Digital/Analogue
7 Response Time 10 ms. 10 ms.
8 Voltage Correction Rate
1. Air Cooled 35V/Sec. 35V/Sec.
2. Oil Cooled 25V/ Sec 25V/ Sec
9 Efficiency 97% 97%
10 Protection a) Automatic Switch-Off against
- Under / Over-Voltage
- Over-Load & Short - Circuit
- Single Phasing
11 Winding Pure Copper Winded Pure Copper Winded
12 Waveform Pure Sine Wave Pure Sine Wave
13 Power factor Nil Nil
14 Mounting Free on wheel Free on wheel
