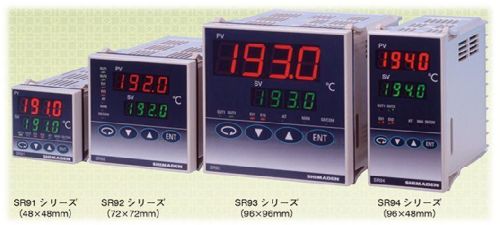

Shimaden PID Controller, Feature : High Accuracy

Multi-input and multi-range performance Small instrument depths (62mm - 65mm) save space, thus securing a larger installation area. SV setting: 3 points PID Value: 3 types 2-output heating and cooling control available Total 32 steps Program available (optional) (1-4 pattern, 32-8 step) RS-485 Interface available (optional) (Master - slave function, ModbusShimaden Protocol) Heater breakheater loop alarm: Single3-phase available A wide selection of additional functions (optional) is available to suit various needs. BASIC FEATURES approved compliance SRS14 SRS11 SRS13 62 65 62 Depth of the conventional instruments 100mm 1) OUT 1 RA (heating)OUT 2 DA (cooling) action 1) OUT 1 RA (heating)OUT 2 RA (heating) action Output 100% Output 0% Output 100% Output 0% Control output 1 (RA characteristics) Control output 2 (DA characteristics) Control output 1 (RA characteristics) Control output 2 (DA characteristics) �DB DB=0 �DB ��Set value (SV) ��DB (dead band) ��Set value (SV) ��DB (dead band) �DB DB=0 �DB EXAMPLE OF 2-OUTPUT CONTROL BY SELECTING CONTROL OUTPUT 2 SRS11 Series (48 � 48) SRS 13 Series (96�96) SRS14 Series (48�96) SMALLER
