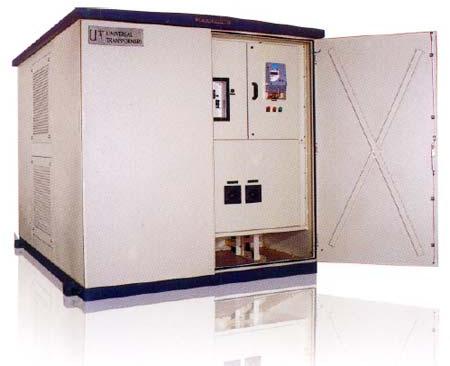

Unitised Package Substation

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Salient Features
design Conforms to Iec62271-202 Standards
the Compartmentalized Construction Prevents Accidental Entry to Energized Areas
meets Ip53/ip23 Degree of Protection
tailored Configuration to Customer Needs
designed to Withstand Electrical Impulses, Thermal and Dynamic Stresses
variety and Choices for Mv/lv Switchgear
low Power Loss and Low Noise Transformer
number of Feeders for Lv Can Be Customer Specific
easy to Install
delivery Ready for Commissioning
modern Manufacturing Techniques Ensure Cost Effectiveness, Reliability and Long Trouble Free Performance Range Up to 990 Kva with Oil Cooled Transformer and Up to 1600 Kva with Dry Type/cast Resin Transformer.

Unitized Sub Station-standard Components

HV compartment	Transformer compartment	LV compartment
Ring Main Unit (RMU)	Oil filled transformer OR Dry type/Cast resin transformer	Incomer air circuit breaker and distribution MCCBs with buiit in over current and short circuit protection
internai lighting	Internal lighting	Metering (voltmeter and ammeter with selector switches)
Compartment fitted with lockable swing handle and three point latch	Cable/bus bars for HV and LV Circuit breaker connection	Electrical indicators
Over current &earth fault protection	Current transformers for metering	Internal lighting
Door limit switch	Louvered covers	Space heater with thermostat control
Boots for cable termination		Auxiliary supply plug &socket Compartment fitted with lockable swing handle and three point latch
Optional Accessories HV metering Load break switch for HV system APFC panel
